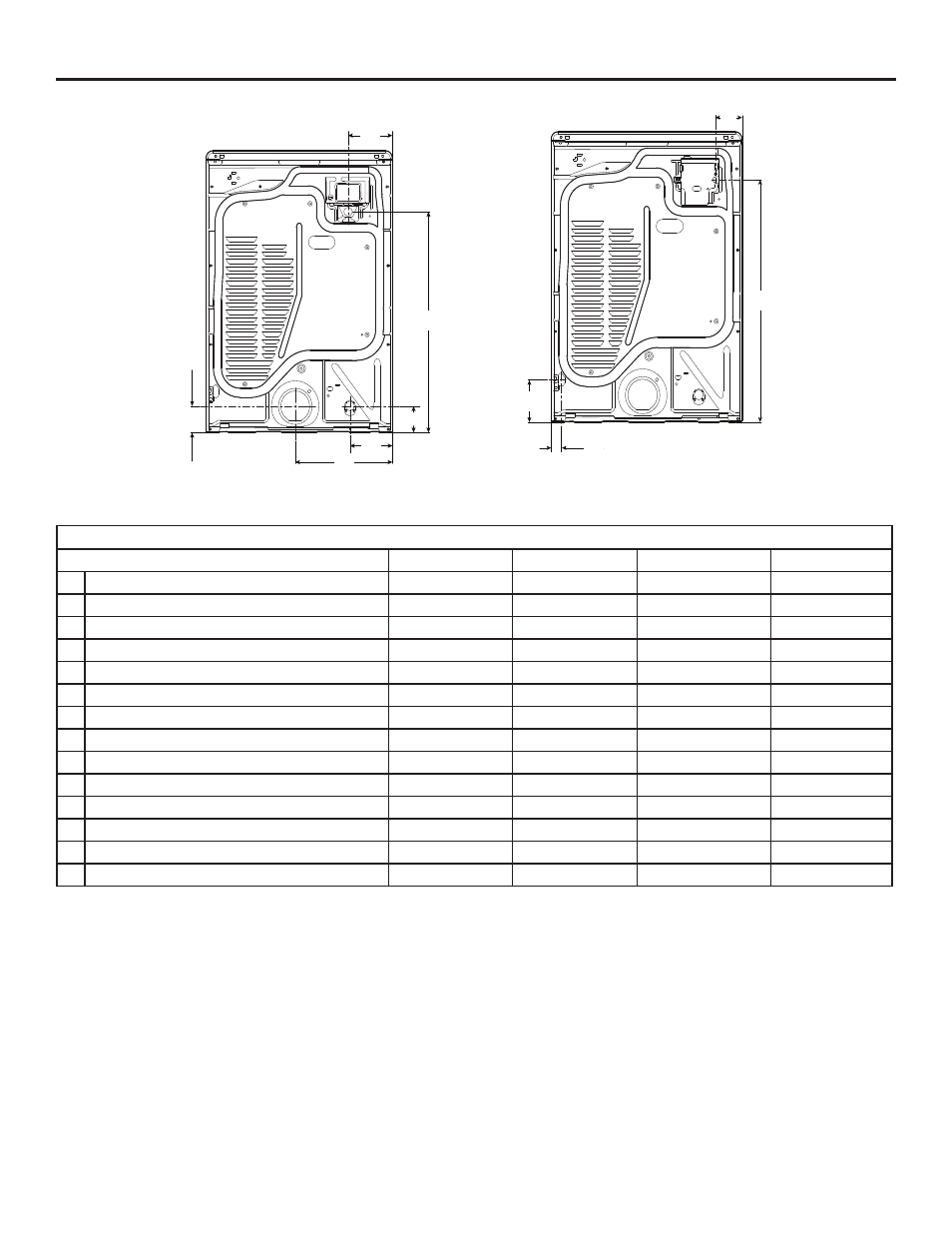

DETAILED PLANNING DIMENSIONS
Product Dimensions
in (min) mm (min) in (max) mm (max)
G Strain Relief from Side (elec) 6 3 ∕
8
163 - -
H Strain Relief Height (elec) 29 7 ∕
8
759 30 11 ∕
16
780
G Power Cord from Side (Canadian) 6 3 ∕
8
163 - -
H Power Cord Height (Canadian) 29 7 ∕
8
759 30 11 ∕
16
780
Power Cord Length (Canadian) 53 3 ∕
8
1356 - -
I Power Cord from Side (gas) 3 13 ∕
16
96 - -
J Power Cord Height (gas) 31 13 ∕
16
808 32 11 ∕
16
829
Power Cord Length (gas) 72 1828 - -
K Gas Valve Height 5 5 ∕
8
142 5 9 ∕
16
163
L Gas Valve from Side 1 3 ∕
8
36 - -
M Exhaust Duct Height 3 1 ∕
2
90 4 3 ∕
8
111
N Exhaust Duct from Side 14 1 ∕
8
358 - -
O Water Inlet Height (steam models) 3 5 ∕
8
91 4 7 ∕
16
112
P Water Inlet from Side (steam models) 6 1 ∕
8
156 - -
M
H
G
P
N
O
I
J
K
L
