12

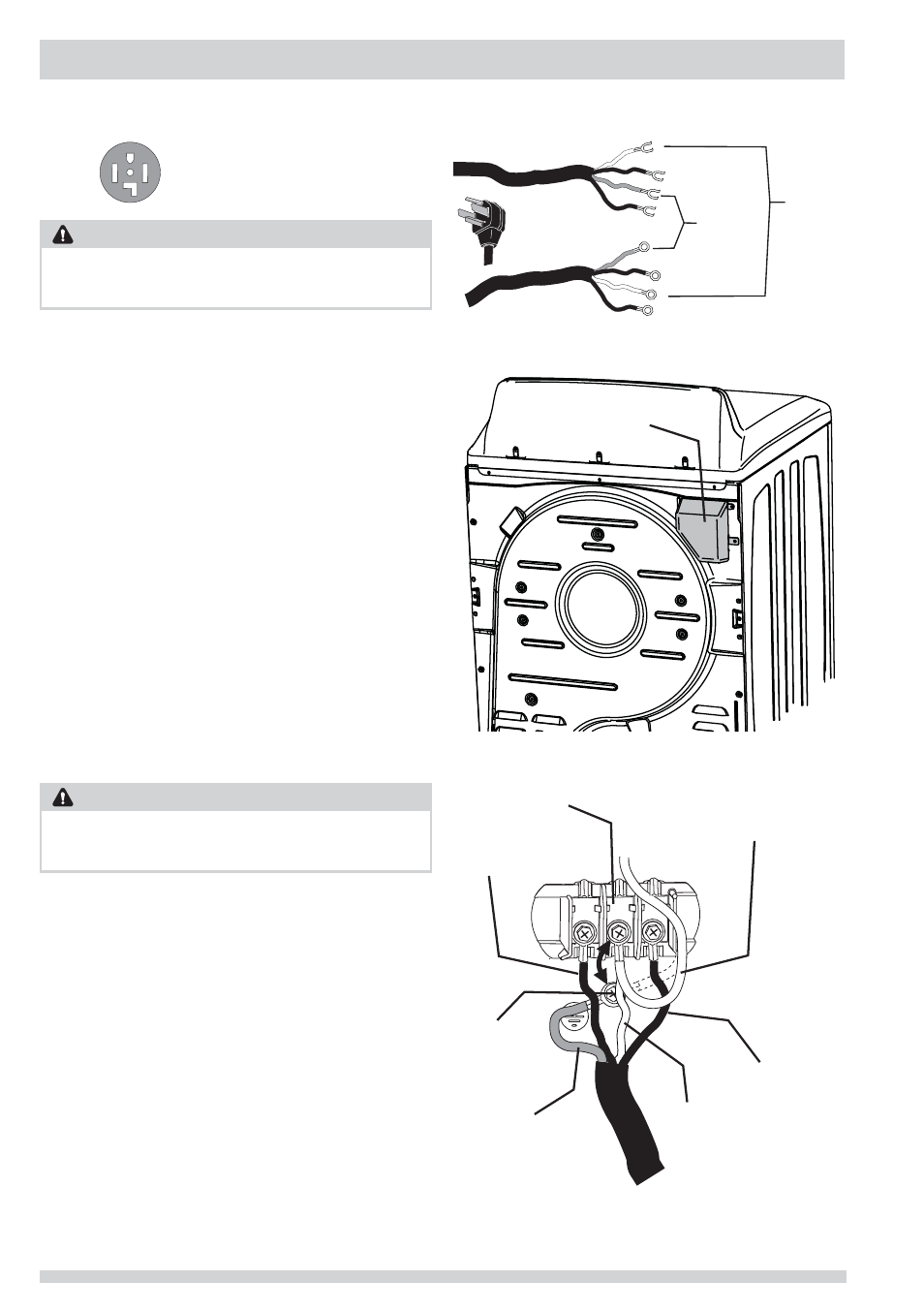

INSTALLATION INSTRUCTIONS
4-wire receptacle
(NEMA type 14-30R)
Neutral Neutral
(WHITE wire) (WHITE wire)
30 AMP 30 AMP
NEMA 14-30 NEMA 14-30
Ground Ground
(GREEN wire) (GREEN wire)
Electrical connection (non-Canada) - 4 wire cord
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing could
result in personal injury or even death.
WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections.
Move internal ground (WHITE)
wire to neutral (center) terminal
for 4-wire system.
GREEN
ground screw
WHITE
neutral wire
BLACK
or RED
power wire
BLACK
or RED
power wire
GREEN
ground wire
Neutral
terminal
Terminal
cover
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal block access
cover in the upper corner on the back of the dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions in
the power cord entry hole below the access panel. At
this time, the strain relief should be loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp. power
cord, NEMA 14-30 type ST or SRDT, through the strain
relief.
5 Disconnect the internal (WHITE) dryer harness ground
wire from the (GREEN) ground screw next to the
terminal block.
6 Attach the ground (GREEN) power cord wire to the
cabinet with the ground (GREEN) screw. Tighten the
screw securely.
7 Move the internal dryer harness ground (WHITE)
wire to the terminal block and attach it along with the
neutral (WHITE) power cord wire conductor to the
center, SILVER colored terminal on the terminal block.
Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors to
the outer, BRASS colored terminals on the terminal
block. Tighten both screws securely.
9 Follow manufacturer’s guidelines for fi rmly securing the
strain relief and power cord.
10 Reinstall the terminal block cover.
