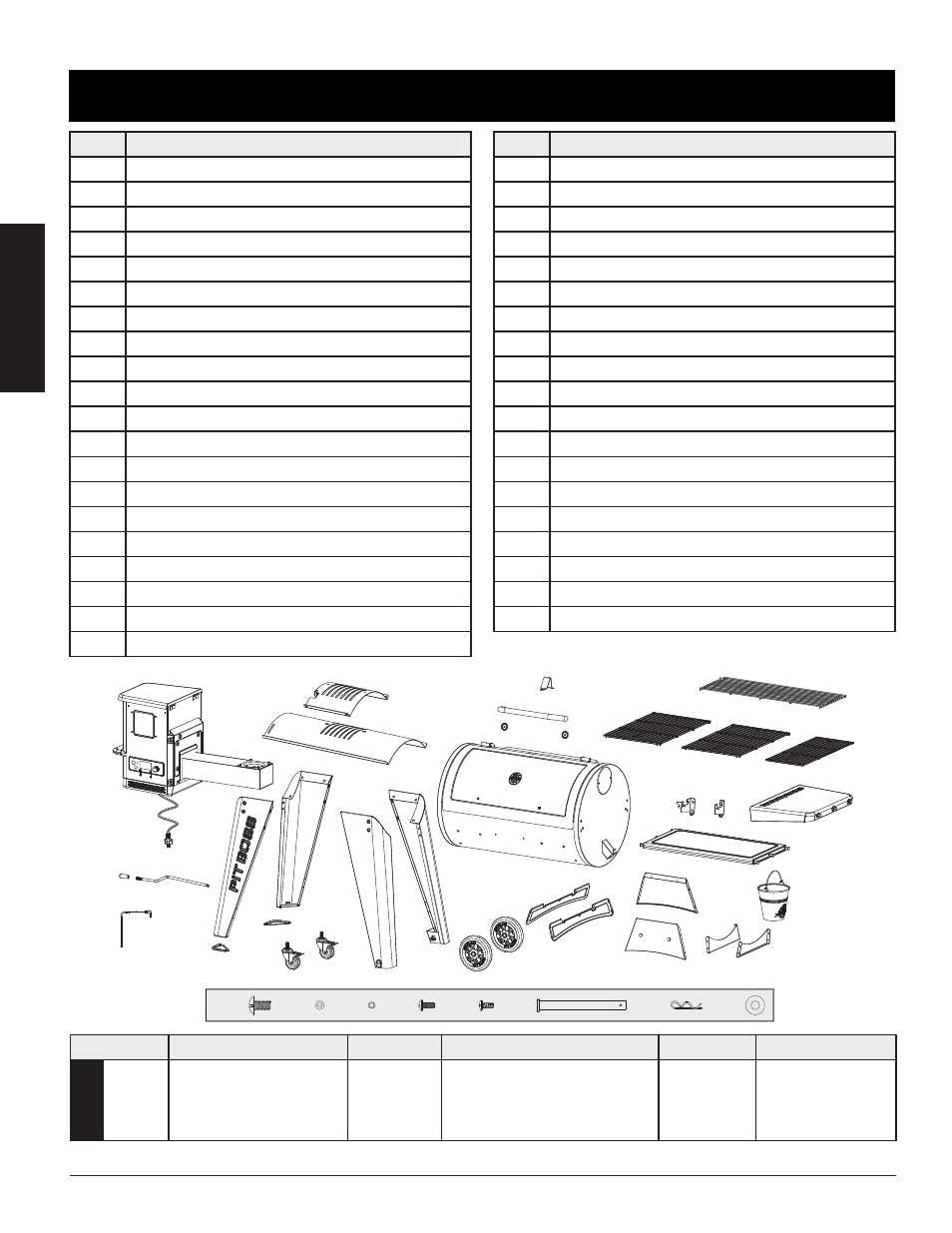

PB850G GRILL REPLACEMENT PARTS
Part# Description
1-A
Lid Stopper (x1)
2-A
Lid Handle (x1)
3-A
Lid Handle Bezel (x2)
4-A
Main Barrel (x1)
5-A
Hopper Assembly (x1)
6-A
Flame Broiler Adjusting Bar (x1)
7-A
Flame Broiler Adjusting Bar Handle (x1)
8-A
Flame Broiler Slider (x1)
9-A
Flame Broiler Main Plate (x1)
10-A
Left Front Leg (x1)
11-A
Left Back Leg (x1)
12-A
Right Front Leg (x1)
13-A
Right Back Leg (x1)
14-A
Left Front Leg Trim Piece (x1)
15-A
Left Back Leg Trim Piece (x1)
16-A
Swivel Caster with Brake (x2)
17-A
Wheel (x2)
18-A
Right Bottom Support Plate (x1)
19-A
Left Bottom Support Plate (x1)
20-A
Short Support Plate (x2)
Part# Description
21-A
Front Long Support Plate (x1)
22-A
Back Long Support Plate (x1)
23-A
Front Shelf (x1)
24-A
Front Shelf Bracket Right (x1)
25-A
Front Shelf Bracket Left (x1)
26-A
Grease Bucket (x1)
27-A
Right Side Table (x1)
28-A
Cooking Grid A (x1)
29-A
Cooking Grid B (x2)
30-A
Warming Rack (x1)
31-A
Meat Probe (x1)
32-A
Screw (x18)
33-A
Washer (x18)
34-A
Locking Washer (x18)
35-A
Screw (x30)
36-A
Screw (x4)
37-A
Wheel Axle Pin (x2)
38-A
Wheel Cotter Pin (x2)
39-A
Wheel Washer (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
MODEL
UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA
TEMP. RANGE DIGITAL FEATURES
PB
PB850G
1,472mm x 1,195mm x 940mm
/ 57.9” x 47” x 37”
74.5kg /
164.24 lb
Main - 3,825.8 cm² / 593 sq. in.
Upper Rack - 1,845.2 cm² / 286 sq. in.
TOTAL - 5,671 cm² / 879 sq. in.
82-260°C /
180-500°F
Ten temperature
presets, start-up and
cool-down cycles,
electric igniter
