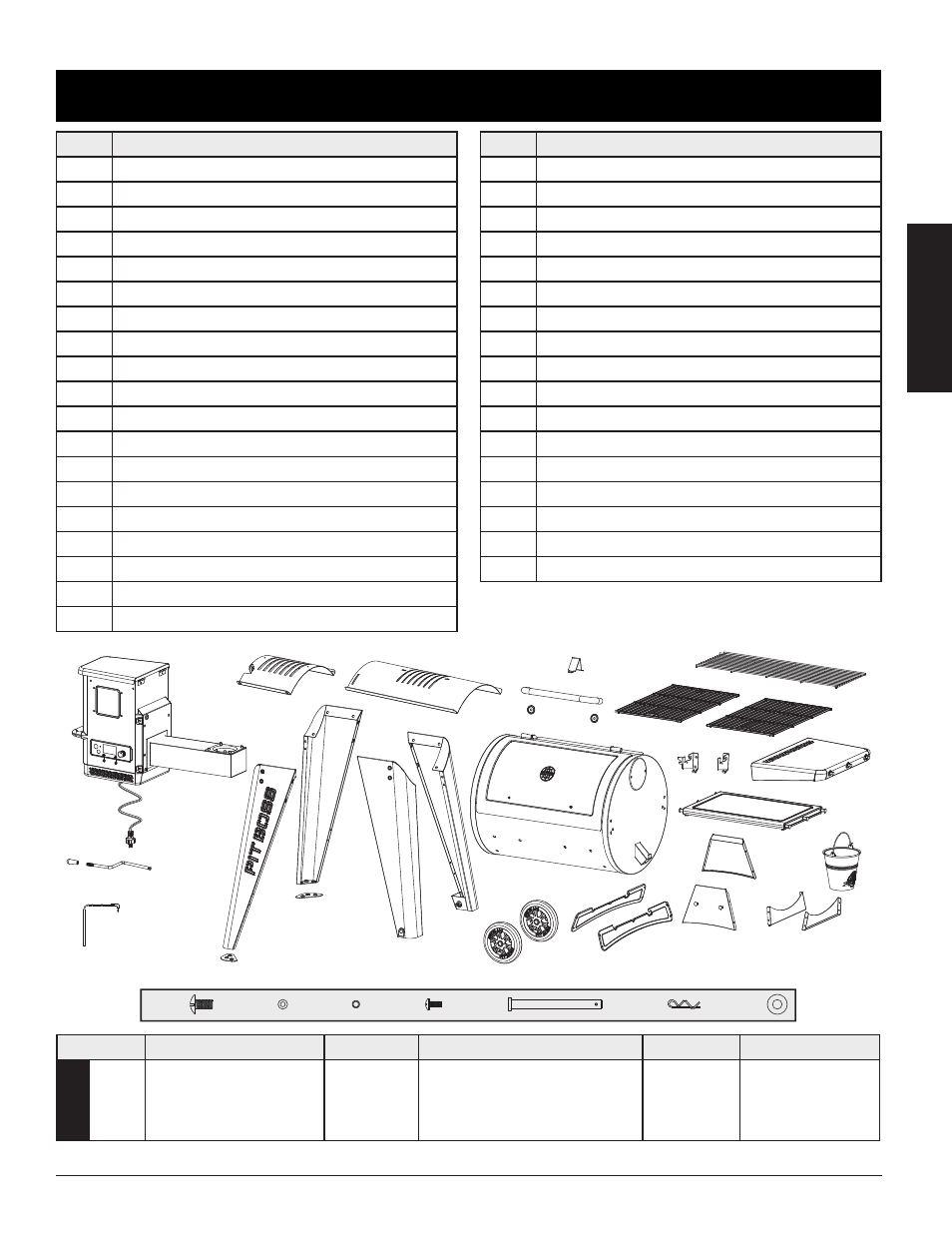

PB700G GRILL REPLACEMENT PARTS
Part# Description
1-A
Lid Stopper (x1)
2-A
Lid Handle (x1)
3-A
Lid Handle Bezel (x2)
4-A
Main Barrel (x1)
5-A
Hopper Assembly (x1)
6-A
Flame Broiler Adjusting Bar (x1)
7-A
Flame Broiler Adjusting Bar Handle (x1)
8-A
Flame Broiler Slider (x1)
9-A
Flame Broiler Main Plate (x1)
10-A
Left Front Leg (x1)
11-A
Left Back Leg (x1)
12-A
Right Front Leg (x1)
13-A
Right Back Leg (x1)
14-A
Left Front Leg Trim Piece (x1)
15-A
Left Back Leg Trim Piece (x1)
16-A
Wheel (x2)
17-A
Right Bottom Support Plate (x1)
18-A
Left Bottom Support Plate (x1)
19-A
Short Support Plate (x2)
MODEL
UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA
TEMP. RANGE DIGITAL FEATURES
PB
PB700G 1,388mm x 1,195mm x 940mm
/ 54.6” x 47” x 37”
66.5 kg /
146.61 lb
Main - 3,109 cm² / 482 sq. in.
Upper Rack - 1,341 cm² / 208 sq. in.
TOTAL - 4,450 cm² / 690 sq. in.
82-260°C /
180-500°F
Ten temperature
presets, start-up and
cool-down cycles,
electric igniter
Part# Description
20-A
Front Long Support Plate (x1)
21-A
Back Long Support Plate (x1)
22-A
Front Shelf (x1)
23-A
Front Shelf Bracket Right (x1)
24-A
Front Shelf Bracket Left (x1)
25-A
Grease Bucket (x1)
26-A
Right Side Table (x1)
27-A
Cooking Grids (x2)
28-A
Warming Rack (x1)
29-A
Meat Probe (x1)
30-A
Screw (x18)
31-A
Washer (x18)
32-A
Locking Washer (x18)
33-A
Screw (x30)
34-A
Wheel Axle Pin (x2)
35-A
Wheel Cotter Pin (x2)
36-A
Wheel Washer (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
1-A
2-A
4-A
3-A
10-A
19-A
12-A
15-A
14-A
17-A
18-A
20-A
16-A
8-A
6-A
7-A
9-A
5-A
13-A
3-A
11-A
21-A
22-A
23-A
24-A
25-A
26-A
27-A
28-A
29-A
27-A
33-A
32-A
31-A
34-A
30-A
35-A
36-A
