English 7
Figure 2
Figure 3

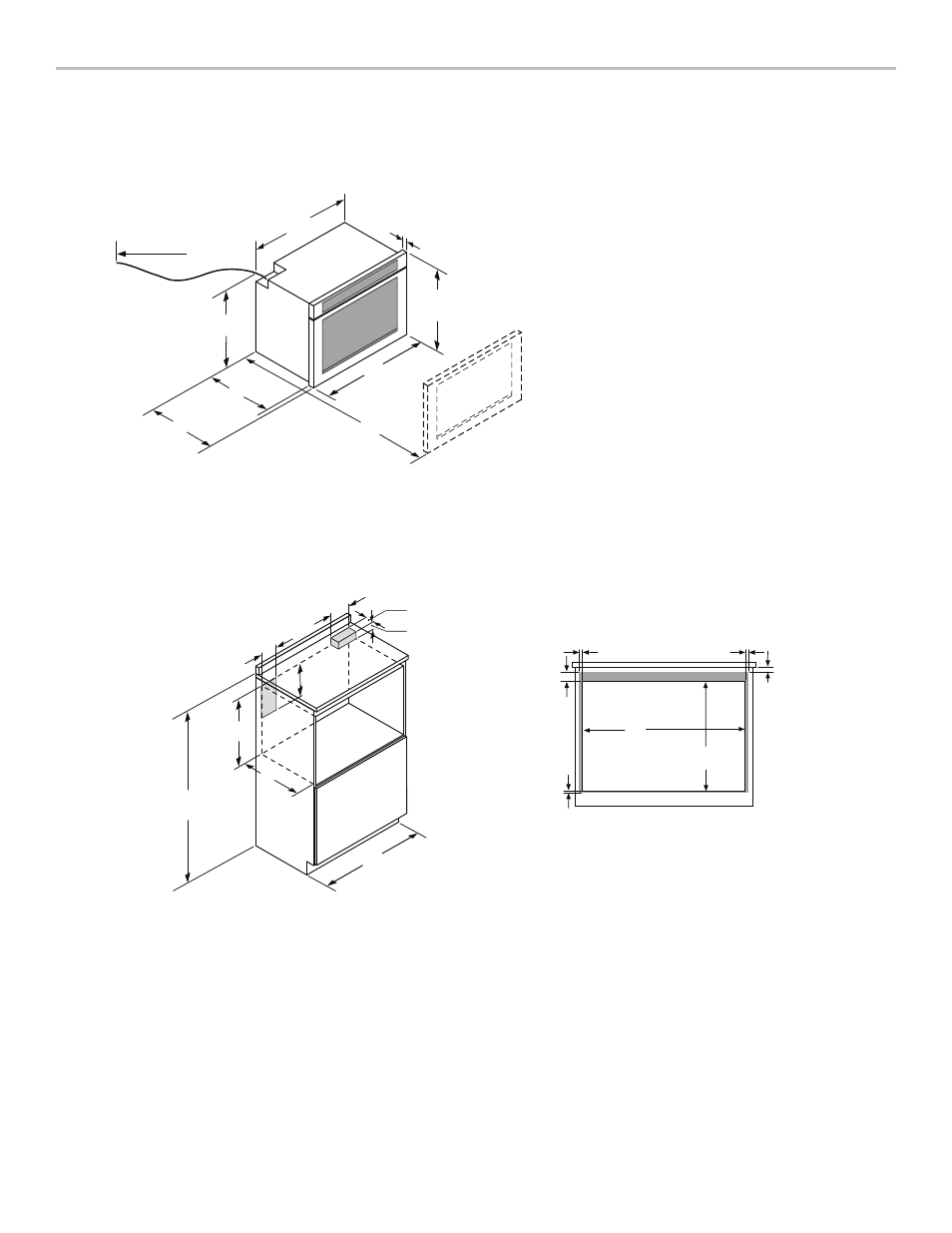

STANDARD INSTALLATION DIMENSIONS AND CLEARANCES
APPLIANCE DIMENSIONS
MicroDrawer ® Microwave Oven Measurements
Frontview cut out
* Suggested location of electrical outlet
** Anti-Tip Block
*** Base should support up to 100 lbs
*
**
***
A
B
C
D
E
G
H
L
O
N
J
K
L
M
I
F
A
C
D
B
F
G
H
I
E
A. MD24WS (24") 23 7/8" (606 mm)
MD30WS (30") 30" (762 mm)
B. 16 5/16" (414 mm)
C. 23 3/8" (594 mm)
D. 21 7/8" (556 mm)
E. 38 3/8" (974 mm)
F. 21 5/8" (549 mm)
G. 14 5/8" (371 mm)
H. 1 11/16" (39 mm)
I. Approx. 46" (1,168.4 mm)
A. MD24WS (24") 24" or 27" (610 or 686 mm)
MD30WS (30") 30" (762 mm)
B. 36" (914 mm)
C. 23 1/2" (597 mm)
D. 14 5/8" (372 mm)
E. 4" (102 mm)
F. 6" (152 mm)
G. 5" (127 mm)
H. 3 1/2" (89 mm)
I. 1 1/2" (38 mm)
j. MD24WS (24") 22 1/8" (562 mm)
MD30WS (30") 23" (584 mm) min.
28 1/4" (718 mm) max.
K. 14 13/16" (376 mm)
L. 7/8" (22 mm) overlap
M. 1/2" (13 mm) visible area
N. 1/16" (2 mm) overlap
O. 1 7/16" (36 mm) overlap
