Drawer Installation
1. Place the drawer adjacent to the wall or cabinet open-
ing. Plug the power supply cord into the electrical
outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and the
wall.
3. Slide the drawer all the way until the mounting flange
makes contact with the face of the cabinet for stan-
dard installation or side cleats for flush installation.

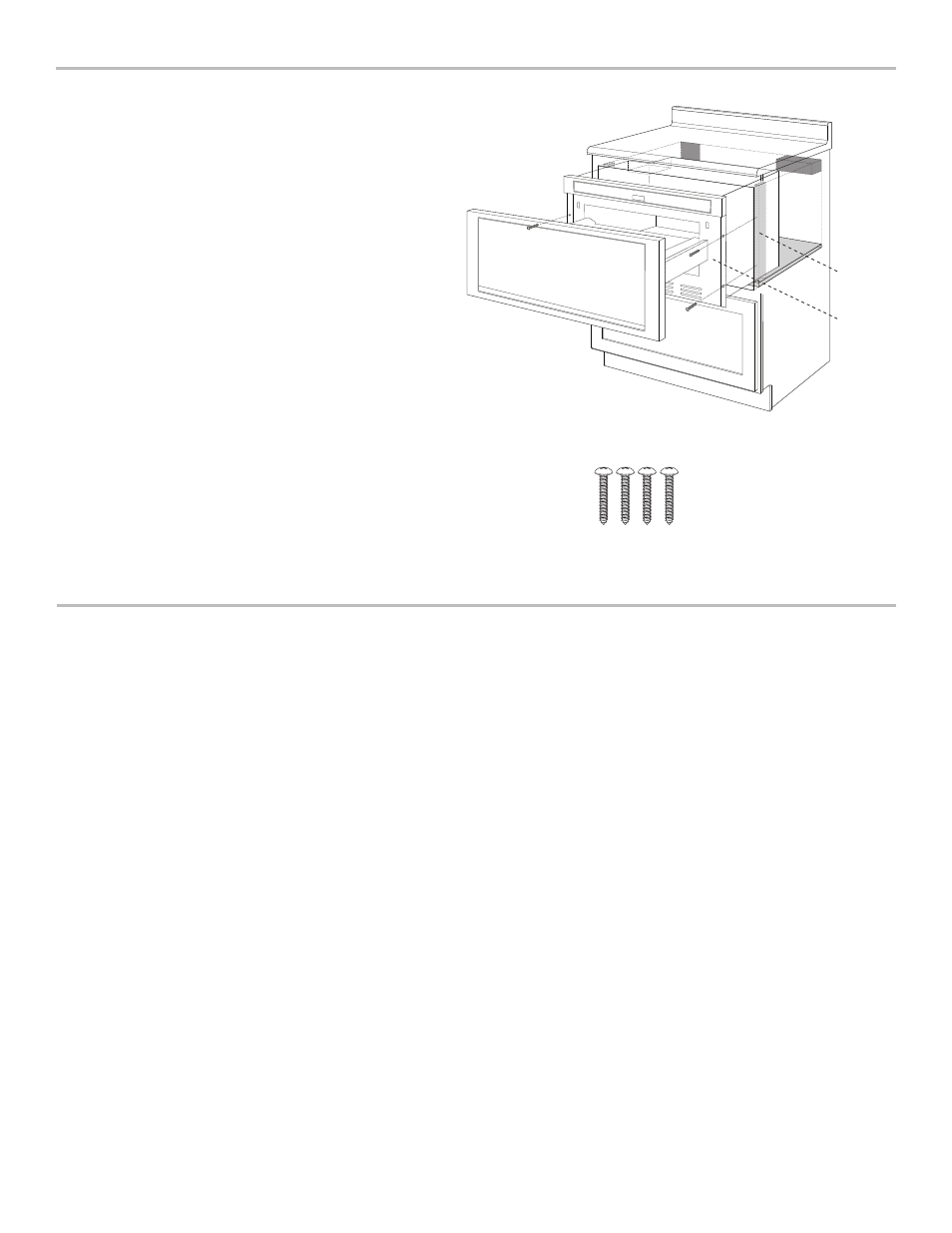

See Figure 7A.
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre drill the cabinet using a 1/16" bit. See
Figure 7A.
5. Secure the drawer with the 4 screws supplied. See
Figure 7B.
BSH Home Appliances Corporation Support
Service
We realize that you have made a considerable investment in
your kitchen. We are dedicated to supporting you and your
appliance so that you have many years of creative cooking.
Please don’t hesitate to contact our STAR
® Customer
Support Department if you have any questions or in the
unlikely event that your THERMADOR
® appliance needs
service. Our service team is ready to assist you.
www�thermador�com/support
800-735-4328
Parts & Accessories
Parts, filters, descalers, stainless steel cleaners and more
can be purchased in the THERMADOR
® eShop or by phone.
www�thermador-eshop�com
4 Screws
Parts supplied
Figure 7B
Mounting
flange
Figure 7A
Cleat
