Anti-Tip Block
NORMAL INSTALLATION STEPS
Anti-Tip Block Installation Instructions
The 6-inch Anti-Tip wooden block must be provided by the installer. The anti-
tip block reduces the risk of drawer tipping when installed properly. Install the
anti-tip block 14 13/16 inches above the installation opening floor (where the
unit will sit) for a standard installation or 14 5/8 inches for a flush installation.
See Figure 3 (standard installation) or Figure 4 (flush installation) and Figure
5. The Anti-Tip block prevents serious injury that might result from spilled hot
liquids.
If the MicroDrawer
® microwave oven is ever moved to a different location, the
Anti-Tip block must also be moved and installed. If the anti-tip block is to be
anchored to the wall make certain that the screws holding it penetrate into the
structural members (studs) behind any covering such as drywall.
CAUTION
Make sure that the screws do not contact any wiring or plumbing that may be present in the wall.
WARNING
The unit can tip and cause spills and potential burns or other injuries if the anti-tip block is not installed correctly.
Electrical Requirements
The unit requires a 120 volt, 60 Hz, 15 AMP (minimum) circuit. It is recom-
mended that the unit be installed to a separate circuit that serves only this
appliance.
This appliance is fitted with a 3-prong grounded electrical plug. Do not modify the
plug or use an adapter. If the plug does not fit with the available receptacle, have
a licensed electrician install a properly grounded outlet before proceeding with
the installation.
Note: If you have any questions about the grounding or electrical instructions,
consult a qualified electrician.
* Unit can also be installed using an electrical outlet in an adjacent cabinet within the
area where the provided electrical cord can reach.
Always check electrical codes for requirements.

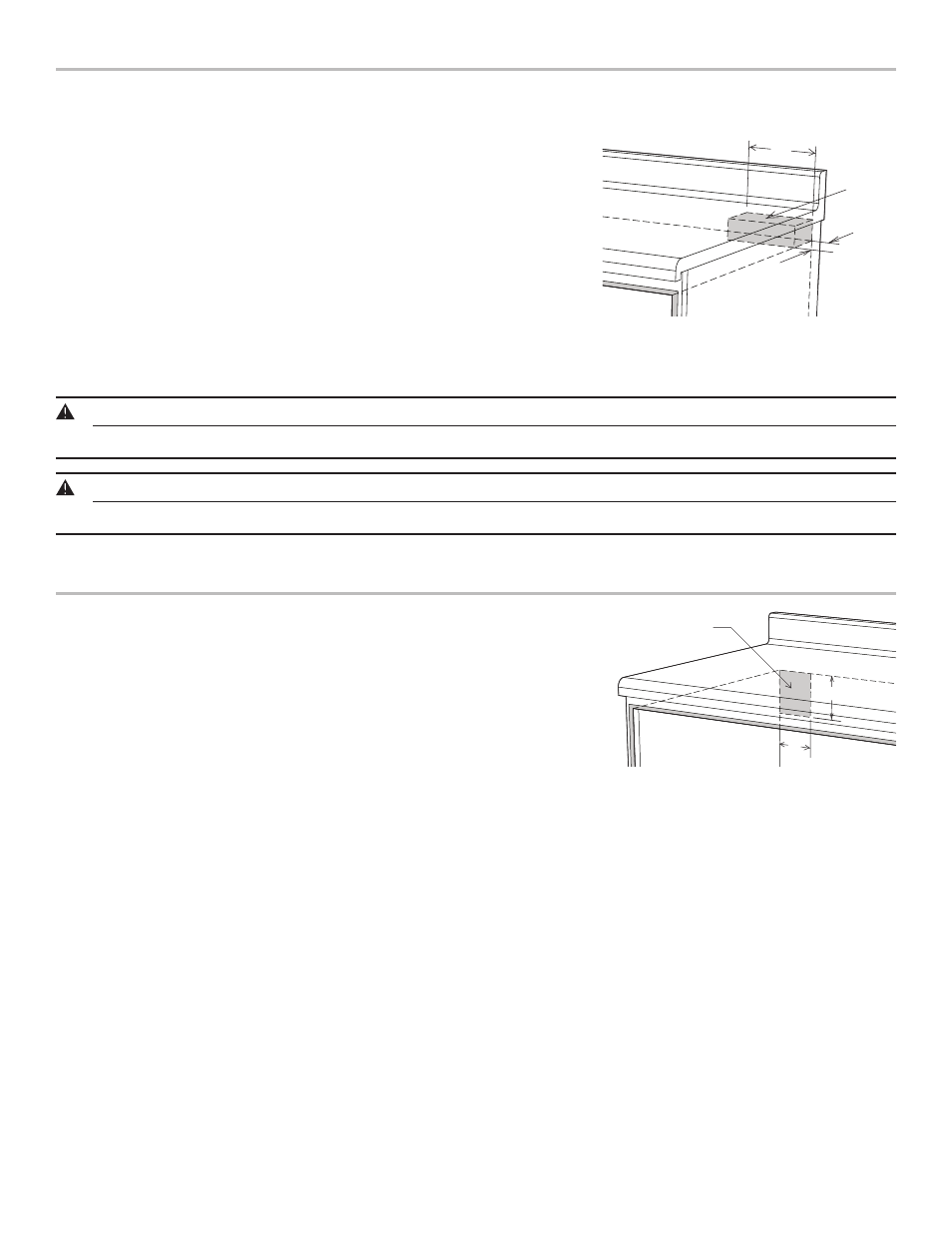

Figure 5
4"
5"
Suggested electrical
outlet location*
Anti-Tip
block
6"
3 1/2"
Figure 6
4"
5"
Suggested electrical
outlet location*
Anti-Tip
block
6"
3 1/2"
