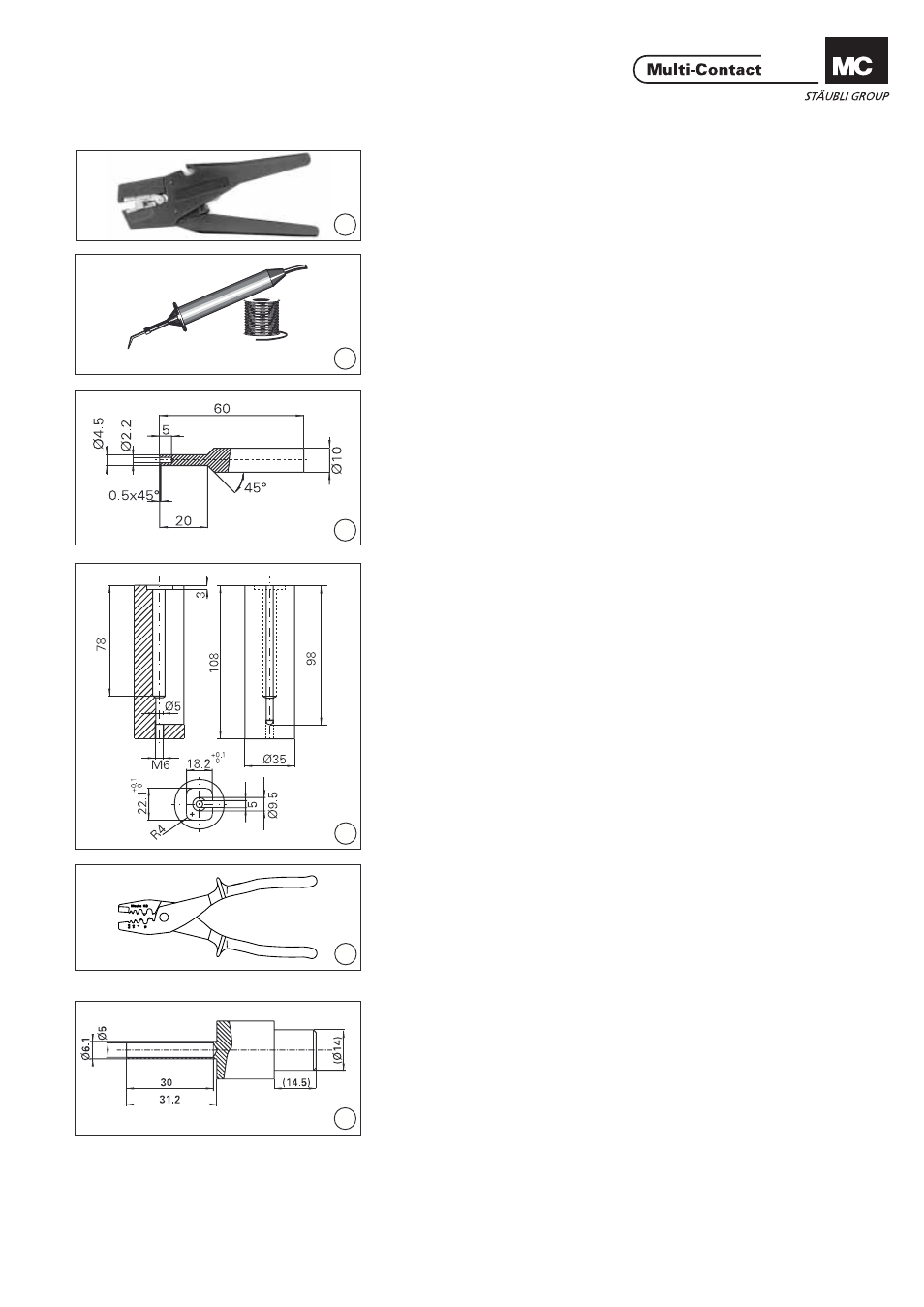

Outillage nécessaire Tools required
(ill. 1)
Pince à dénuder „Stripax“
No. de Cde 25.0015 (ill. 1)
Cable stripper “Stripax”
Order No. 25.0015
(ill. 2)
- Fer à souder 60W
- Fil de soudure
p.e. fi l de soudure sans plomb Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source d’approvisionnement:
www.kester-online.de (ill. 2)
- Soldering iron 60W
- Solder
e.g. lead free solder Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source of supply:
www.kester-online.de
(ill. 3)
Outil de montage A-SAPP4-L.
Matière recommandée: Acier. (ill. 3)
Auxiliary tool A-SAPP4-L.
Recommended material: Steel.
(ill. 4)
Outil de montage B-SAPP4-L
Matière recommandée: Acier. (ill. 4)
Auxiliary tool B-SAPP4-L
Recommended material: Steel.
Outillage nécessaire Tools required
(ill. 5)
Pince à sertir PZK3
No. de Cde 25.0018 (ill. 5)
Crimping pliers PZK3
Order-No. 25.0018
(ill. 6)
Outil de montage B-SL
Matière recommandée: Acier (ill. 6)
Auxiliary tool B-SL
Recommended material: Steel
