34

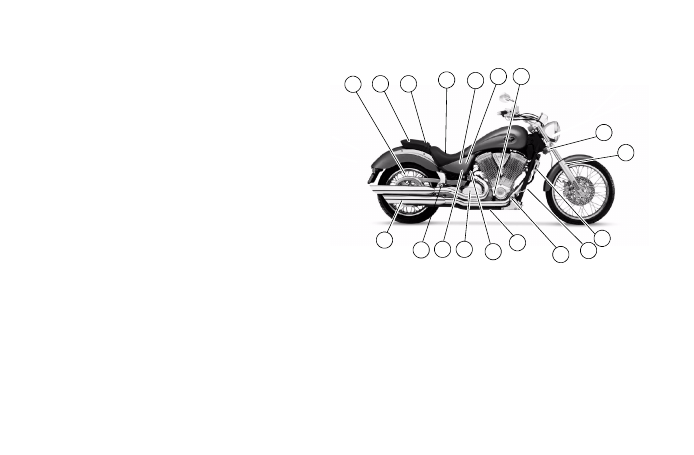

COMPONENT IDENTIFICATION
RIGHT SIDE -- VEGAS / VEGAS EIGHT BALL
1. Drive Belt (under guard)
2. Passenger Seat (except VEGAS EIGHT BALL)
3. Seat Strap
4. Operator’s Seat
5. Rear Shock Absorber (access through RH side cover)
6. Side Cover
7. Engine Oil Fill Cap/Dipstick
8. Front Turn Signal
9. Front Fork
10. Oil Cooler
11. Rear Brake Pedal
12. Operator Foot Rest
13. Engine Oil Drain Plug (under engine)
14. Rear Brake Fluid Reservoir (under side cover)
15. Drive Sprocket (under cover)
16. Fuses (under side cover)
17. Passenger Foot Rest (except VEGAS EIGHT BALL)
18. Exhaust Muffler (2)
1 2 3
4 5 6 7
8
9
10
11
12
13
18
14
15 16 17
