Headlamp Adjustment
The headlamp should shine straight ahead of the
motorcycle. The top of headlamp high beam should
be just below the center of the lamp at a distance of
25 feet (7.62 m).
1. Check and adjust the tire pressure (page 121)
2. Adjust ride height to specification (page 100)
before adjusting headlight.
3. Straddle the motorcycle in an upright position
and sit in the operator’s seat.
4. Set the ignition switch to the ON position and
set the headlamp to High beam. Check the
headlamp for correct aim.
5. To adjust the headlamp vertically, loosen pivot
nut (1) while holding bolt (2). Aim headlight
and hold in position while tightening nut.
Torque: 35 ft-lbs (47.5 Nm)
6. To adjust the lamp horizontally, loosen the nut
(3), aim headlight and hold in position while
tightening nut.
Torque: 28 ft-lbs (38 Nm)
7. Verify proper headlamp adjustment and re-adjust
if necessary.

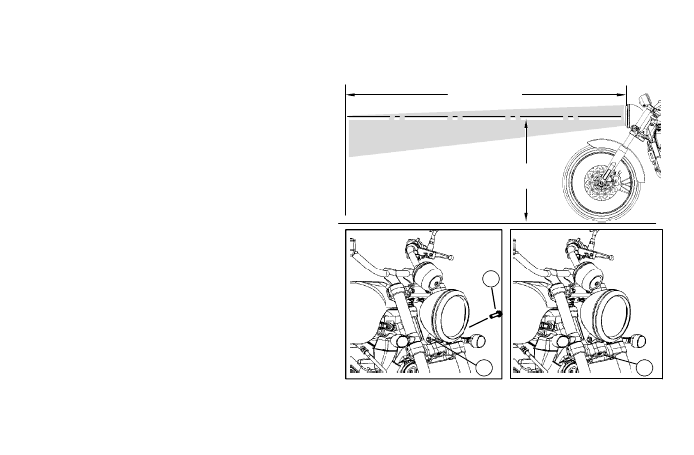

25 feet (7.62 m)
Center of Headlamp
3 1
2
