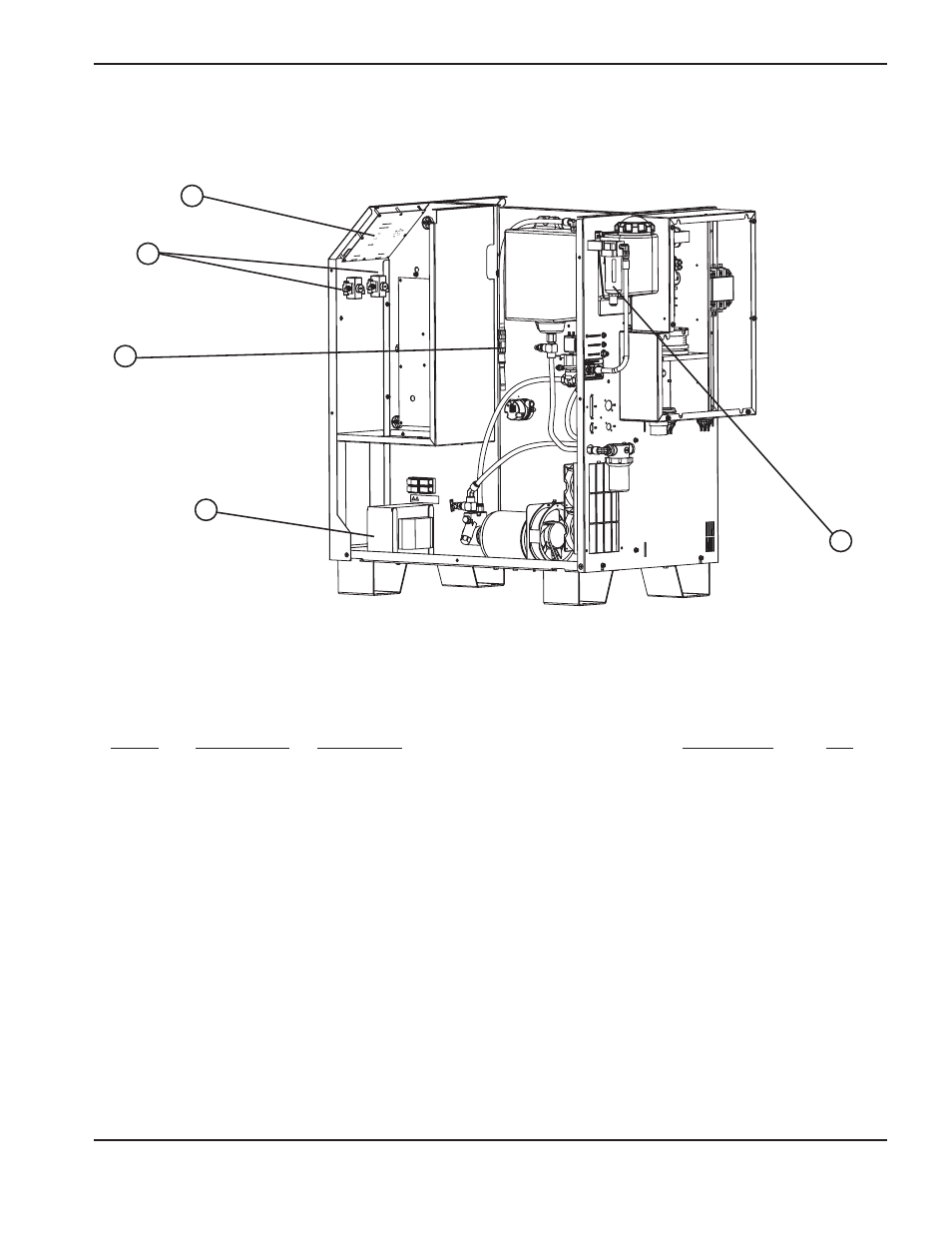

NOMENCLATURE DES PIÈCES
HySpeed HSD130 RHF Manuel d’instructions 6-7
Source de courant
Numéro
Article de référence Description Désignation Qté
1 041938 Control PCB PCB4 1
2 011101 Regulator 2
3 006075 Check valve 1
4 129786 Control transformer: 200 V power supply T2 1
229117 Control transformer: 220 V power supply T2 1
129966 Control transformer: 240 V power supply T2 1
229094 Control transformer: 380 V power supply T2 1
129787 Control transformer: 400 V power supply T2 1
229013 Control transformer: 440 V power supply T2 1
129967 Control transformer: 480 V power supply T2 1
129989 Control transformer: 600 V power supply T2 1
5 011093 Filter element 1
011105 O-ring: filter bowl 1
2
4
3
1
5
