STUDIO SCAN XTD825 / 625™
PAGE 7

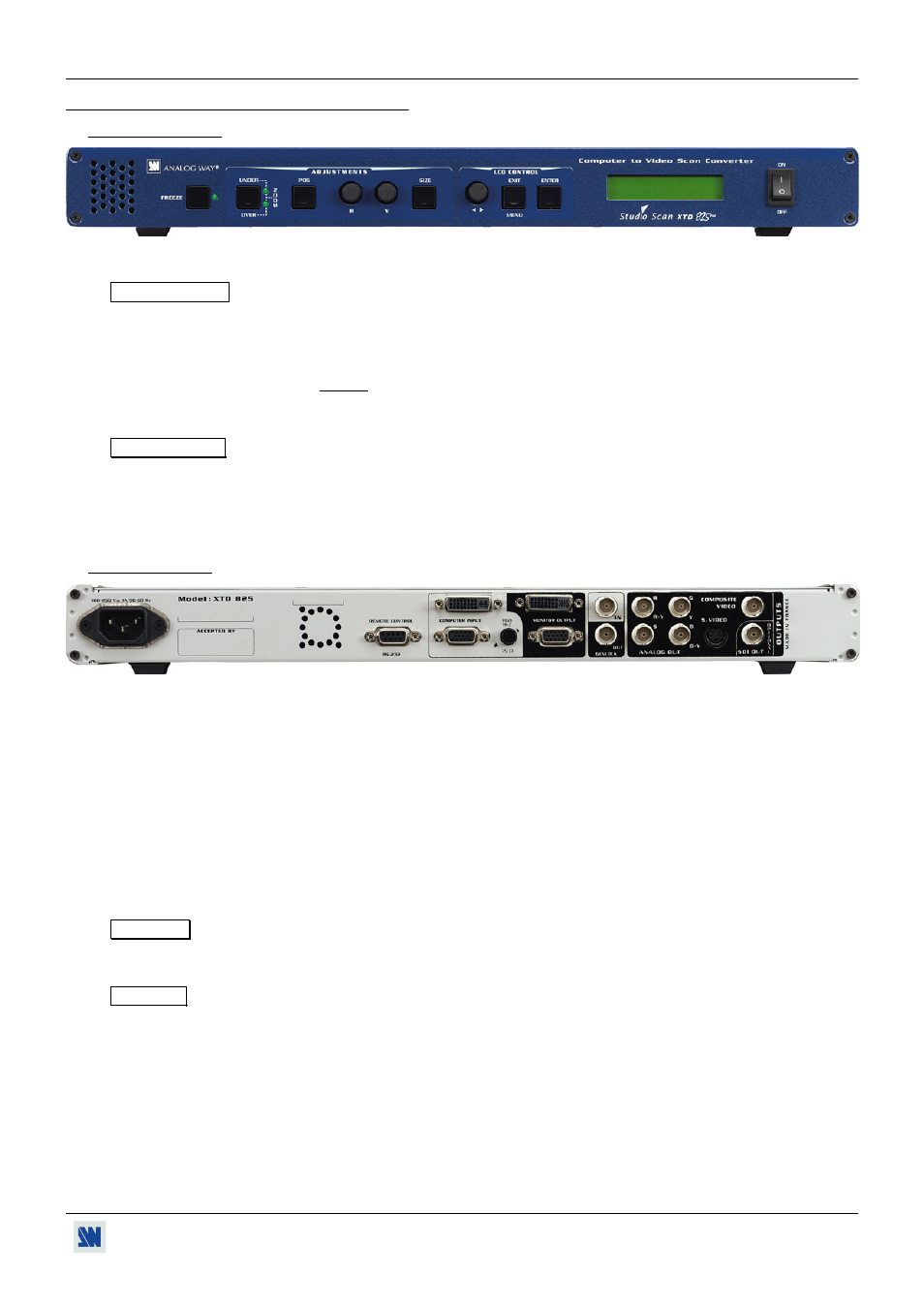

Chapter 2 : TECHNICAL DESCRIPTION
2-1. FRONT PANEL
FREEZE:
Allows to freeze the displayed image.
ADJUSTMENTS
UNDER - OVER - ZOOM: Underscan, Overscan or Zoom mode selection.
POS: Position
mode selection.
H: Horizontal Image adjustment.
V: Vertical Image adjustment.
NOTE: H and V knobs act on the position or size of the image according to the
selected POS/SIZE mode.
SIZE: Size mode selection.
LCD CONTROL
 : Allows to select items in the LCD menu.
EXIT MENU: Allows to exit from a LCD menu.
ENTER: Allows to validate a selected item.
ON / OFF: AC power switch (O = OFF, I = ON).
2-2. REAR PANEL
POWER INPUT:
Standard IEC Connector (100-250VAC, 50-60Hz Automatic).
REMOTE CONTROL: Standard RS-232, DB9 female connector.
COMPUTER INPUT: Analog computer input on HD15 female connector.
Digital computer input on DVI-I female connector (available in option on XTD825 &
XTD825-D1 version).
RGB Hi-Z / 75 Ω: RGB input load. Set this button on Hi-Z if you connect a monitor on the MONITOR
OUT connector. If not set it on 75 Ω.
MONITOR OUTPUT: Analog computer output (loopthrough) on HD15 female connector.
Digital computer output (loopthrough) on DVI-I female connector (available in option
on XTD825 & XTD825-D1 version).
GENLOCK
IN: GENLOCK input.
OUT: GENLOCK output (loopthrough).
OUTPUTS
ANALOG OUT:
R, G, B, S: RGB/S or RGsB video outputs (on 3 or 4 BNC connectors).
R-Y, Y, B-Y: Component video output (on 3 BNC connectors).
S.VIDEO: S.VIDEO outputs (4-pin mini DIN connector).
COMPOSITE: Composite video outputs (1 BNC connector).
SDI OUT (OPTIONAL): Optional SDI (4:2:2) output (on 1 BNC connector).
