Chapter 1 : INTRODUCTION (continued) STUDIO SCAN XTD825 / 625™
PAGE 6

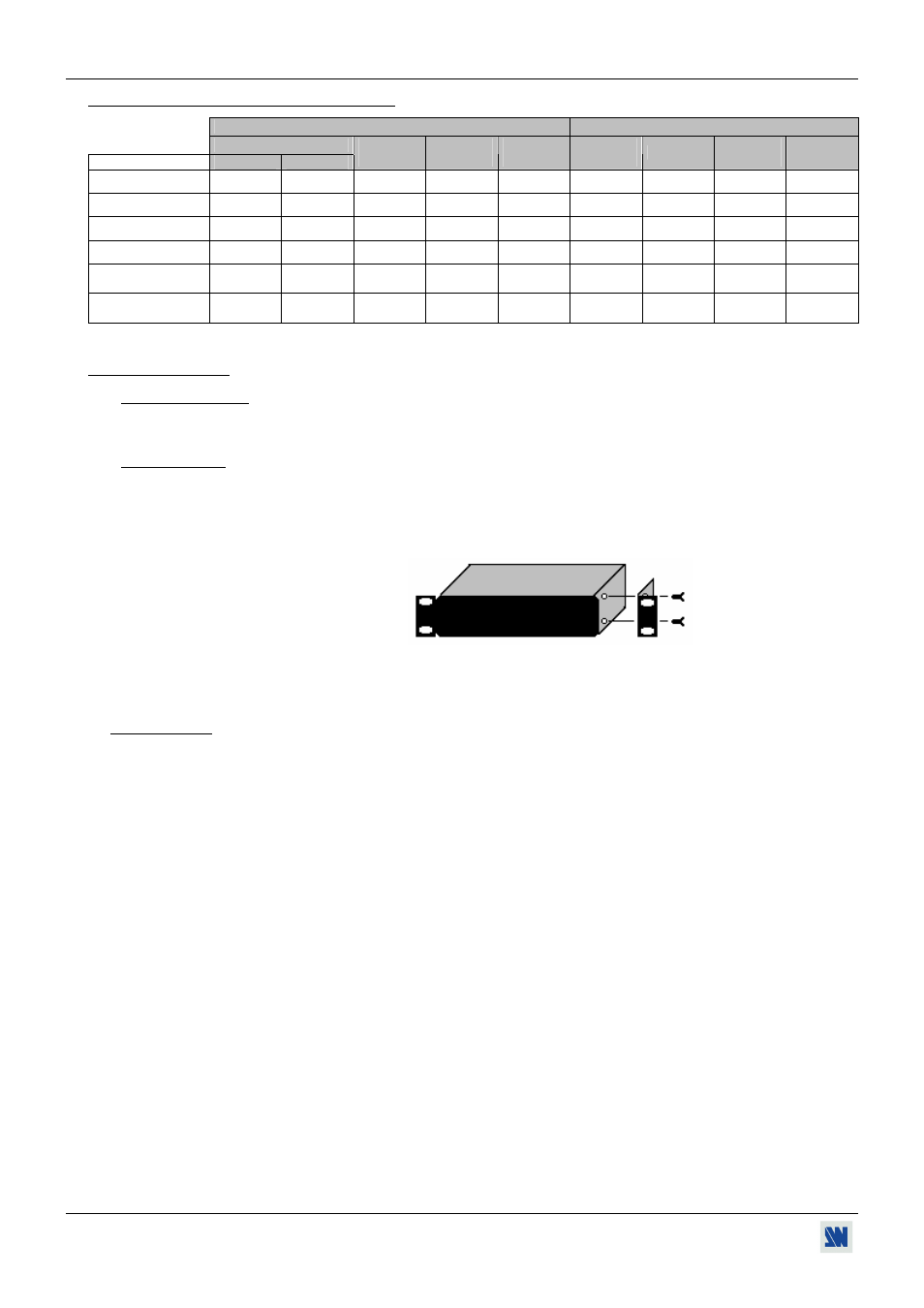

1-4. REFERENCES SPECIFICATIONS TABLE
INPUT OUTPUTS
Line frequency
▼REFERENCES▼ Min Max
Resolution
max
Analog +
loop (HD15)
Digital +
loop (DVI)
Composite
video
S.VIDEO
YUV
RGBS/RGsB
SDI
XTD625 29 kHz 85 kHz 1280x1024
• • • •
XTD625-D1 29 kHz 85 kHz 1280x1024
• • • • •
XTD825 29 kHz 110 kHz 1600x1200
• • • •
XTD825-D1 29 kHz 110 kHz 1600x1200
• • • • •
XTD825
+ OPT-DVI-XTD
29 kHz 110 kHz 1600x1200
• • • • •
XTD825-D1
+ OPT-DVI-XTD
29 kHz 110 kHz 1600x1200
• • • • • •
1-5. INSTALLATION
• Table Top Mounting: The STUDIO SCAN XTD825 / 625 ™ can be used directly on a table: the unit is equipped with
4 plastic feet.
• Rack Mounting: The STUDIO SCAN XTD825 / 625 ™ is compatible with a 19" enclosure. Please follow the
instructions below to install the STUDIO SCAN XTD825 / 625 ™ into a 19” rack:
c Screw the supplied 19” brackets to the sides of the STUDIO SCAN XTD825 ™
(XTD825 only).
d Attach the STUDIO SCAN XTD825 / 625 ™ to your rack by using 4 screws in the front
panels (screws are not included).
IMPORTANT: • The openings in the front panel and in the rear panel are for cooling. Do not cover these
openings.
• Be sure that no weight is added to the STUDIO SCAN XTD825 / 625 ™ in excess of 2 kg
(4.4 lbs.).
• The maximum ambient operating temperature must not exceed 40°C (104°F).
• The rack and all mounted equipment in it must be reliably grounded to national and
local electrical codes.
