Chapter 9 : CONTROL SOFTWARE (continued) STUDIO SCAN XTD825 / 625™
PAGE 18

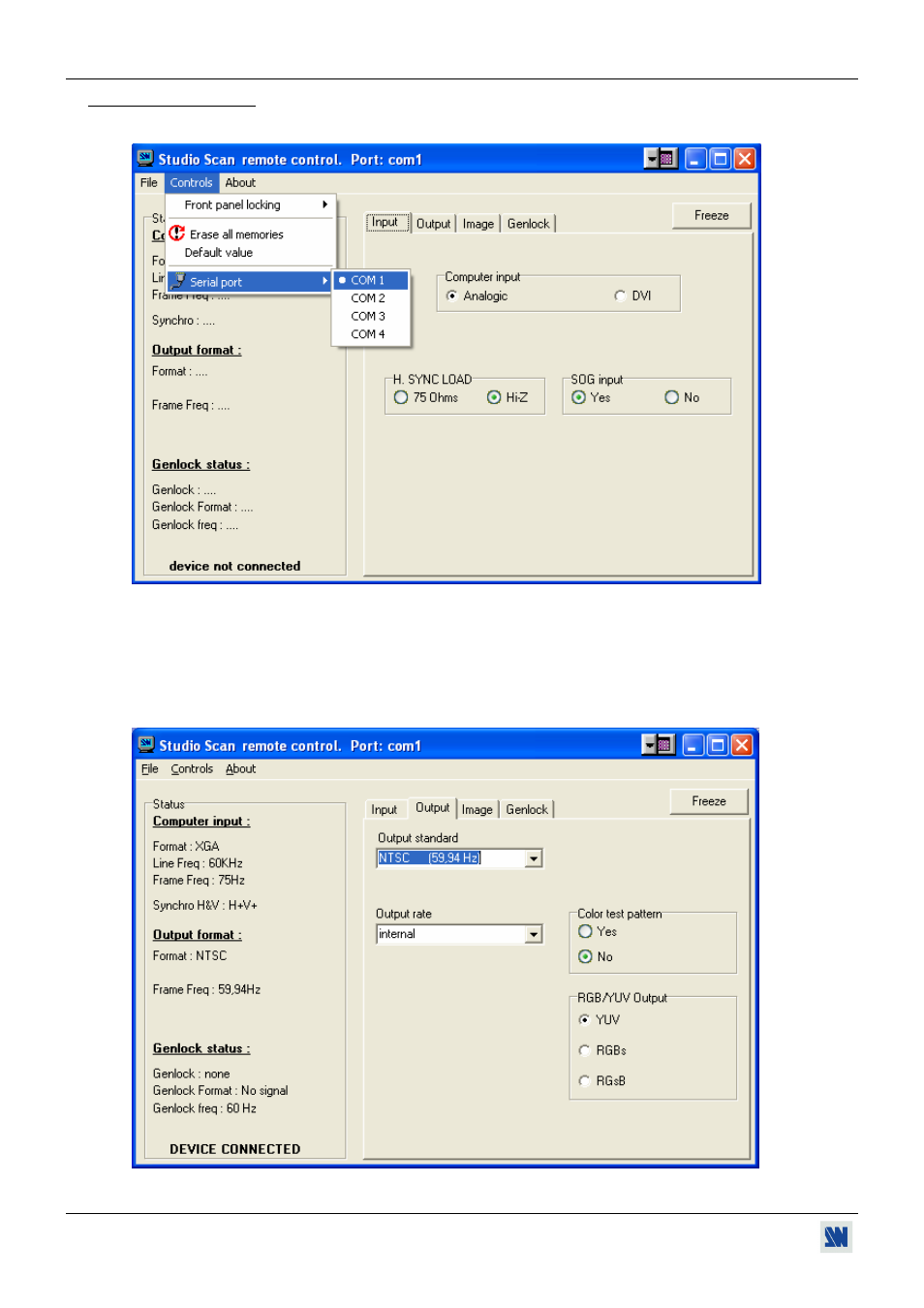

9-3. SOFTWARE SET UP
c Select the Serial port in the Controls menu.
The STUDIO SCAN XTD825 / 625 ™ is now connected to the control device.
d In the Input menu:
- Select the input type (analogic or DVI).
- Set the H sync load of the input.
- Select "Yes" in the SOG Input section if your input is a RGsB (SOG) source.
e In the Output menu, select an Output standard, an Output rate mode and the RGB/YUV output type.
