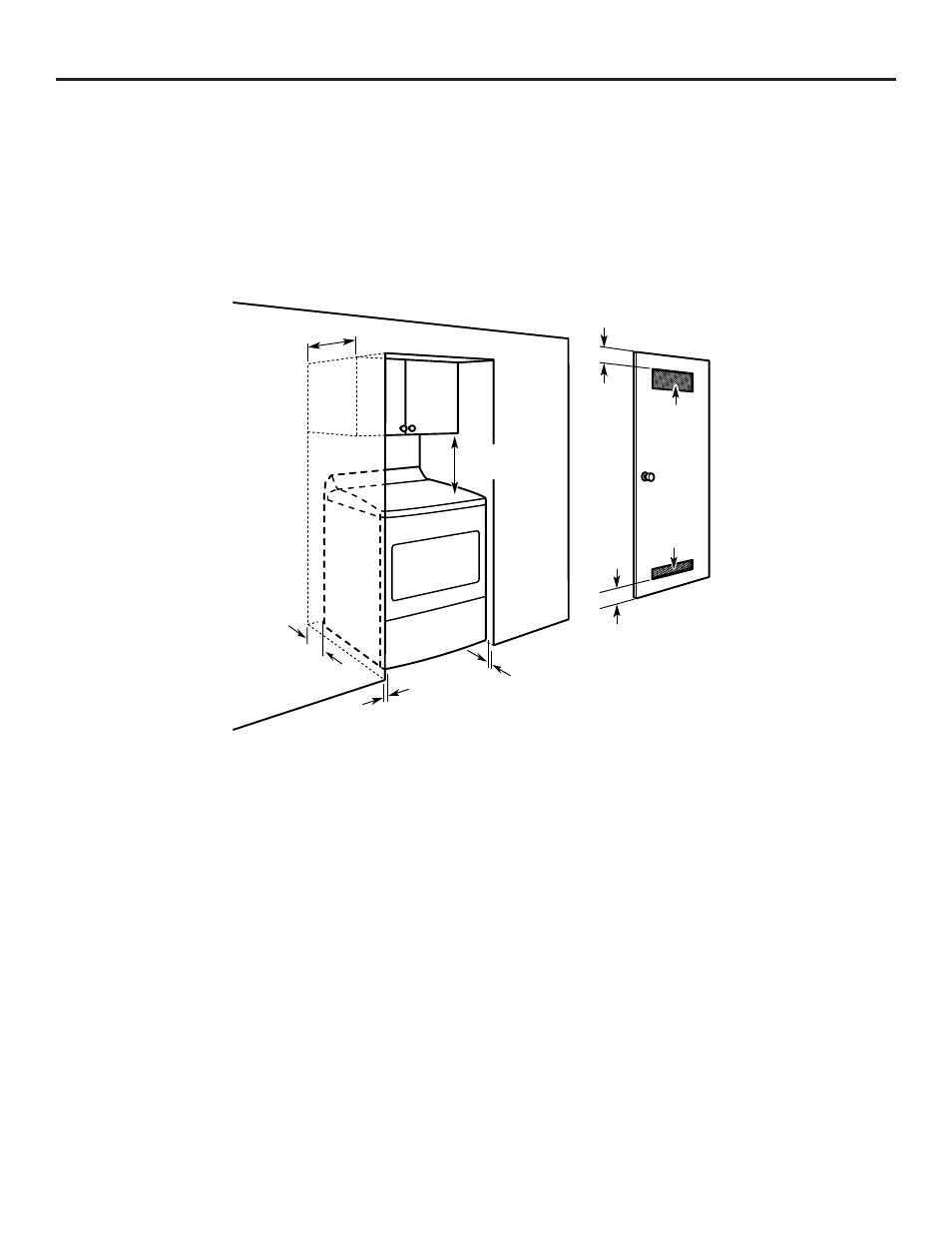

DETAILED PLANNING DIMENSIONS
6"/0"*
(152 mm/0 mm)
14" max
(356 mm)
1"/0"*
(25 mm/0 mm)
18"
(460 mm)
3"
(76 mm)
3"
(76 mm)
24" 2/ 24" 2
(310 cm²)
48 in 2
(155 cm²)
24 in 2
1"
(25 mm)
Spacing for recessed area or closet installation
The dimensions shown are for the recommended spacing allowed.
Ƀ Additional spacing should be considered for ease of installation and servicing.
Ƀ
Additional clearances might be required for wall, door, and floor moldings.
Ƀ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
Ƀ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors
with equivalent ventilations openings are acceptable.
Ƀ Companion appliance spacing should also be considered.
*Recommended/Minimum spacing
