3

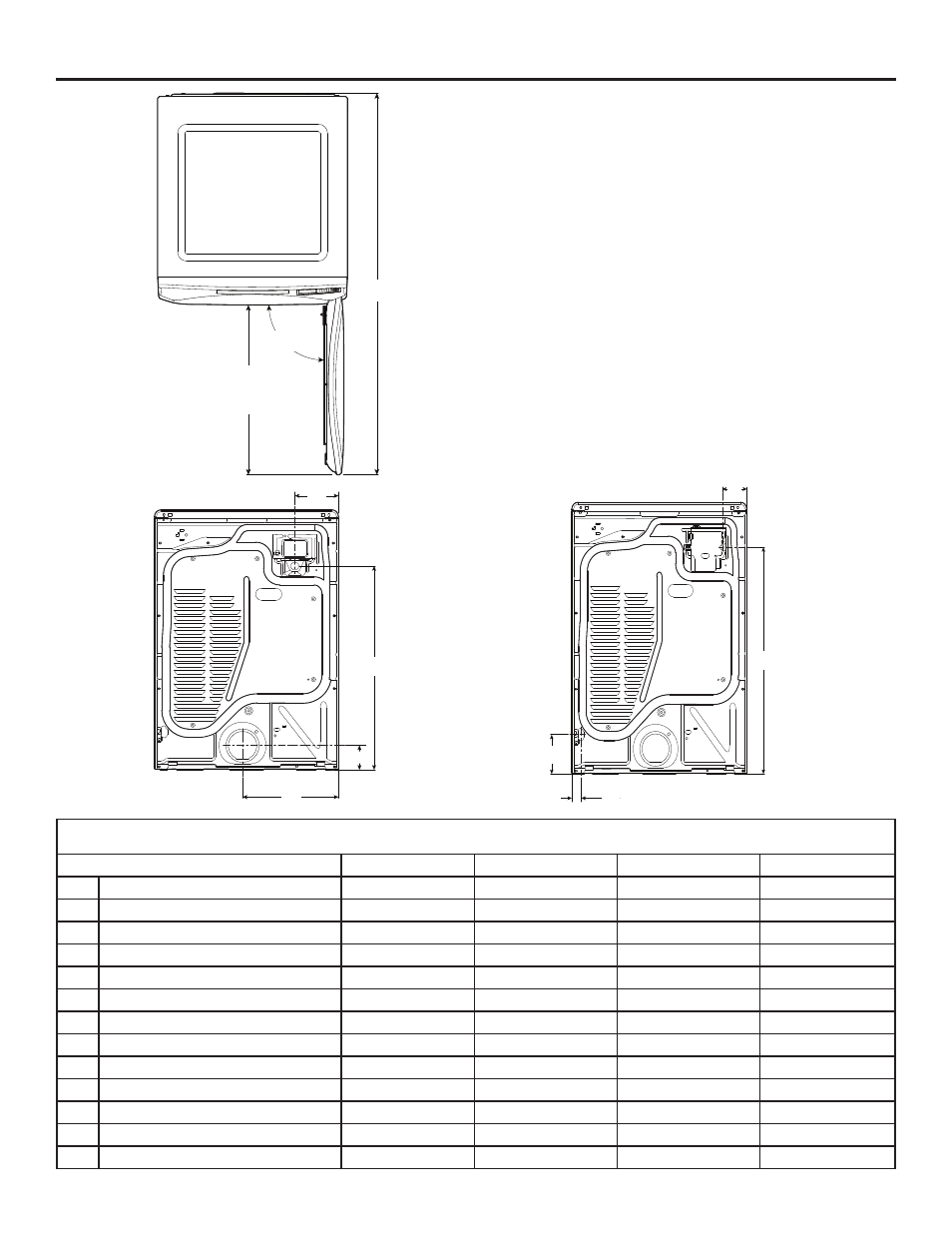

DETAILED PLANNING DIMENSIONS
Product Dimensions
in (min) in (max) mm (min) mm (max)
F Depth with Door Open 54 5 ∕
16
- 1378 -
G Strain Relief from Side (elec) 6 3 ∕
8
- 163 -
H Strain Relief Height (elec) 29 7 ∕
8
30 11 ∕
16
759 780
G Power Cord from Side (Canadian) 6 3 ∕
8
- 163 -
H Power Cord Height (Canadian) 29 7 ∕
8
30 11 ∕
16
759 780
Power Cord Length (Canadian) 53 3 ∕
8
- 1356 -
I Power Cord from Side (gas) 3 13 ∕
16
- 96 -
J Power Cord Height (gas) 31 13 ∕
16
32 11 ∕
16
808 829
Power Cord Length (gas) 72 - 1828 -
K Gas Valve Height 5 5 ∕
8
6 3 ∕
8
142 163
L Gas Valve from Side 1 3 ∕
8
- 36 -
M Exhaust Duct Height 3 1 ∕
2
4 3 ∕
8
90 111
N Exhaust Duct from Side 14 1 ∕
8
- 358 -
I
J
L
K
G
H
M
N
F
90 °
613.26
(24.1)
