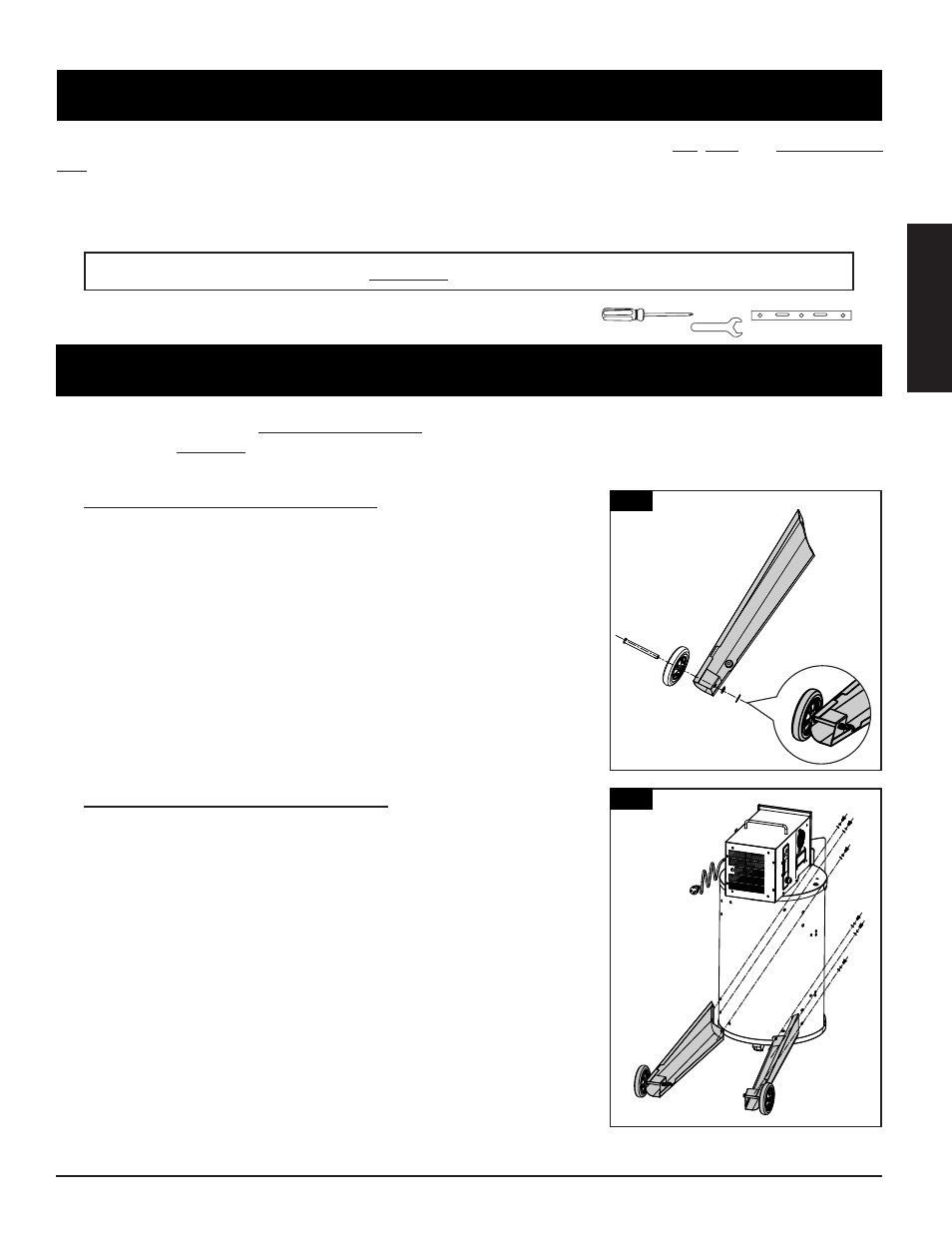

ASSEMBLY INSTRUCTIONS
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed. Hardware combination involving a locking washer and
washer should be installed with the locking washer closest to the head of the screw.
1. MOUNTING THE WHEELS TO THE LEGS
Parts Required:
2 x Leg with Wheel (#14)
2 x Wheel (#24)
2 x Wheel Axle Pin (#G)
2 x Wheel Axle Washer (#F)
2 x Wheel Cotter Pin (#E)
Installation:
• Attach the wheel to the support leg by inserting the wheel axle pin
through the wheel, support leg, wheel axle washer, then secure using
the wheel cotter pin.
• Repeat installation for the other wheel and support leg.
2. MOUNTING THE LEGS TO MAIN BARREL
Parts Required:
1 x Main Barrel (#8)
2 x Leg with Wheel (#14)
2 x Stationary Leg (#13)
1 x Bottom Shelf (#23)
16 x Screw (#A)
16 x Washer (#B)
16 x Locking Washer (#C)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the unit. Lay
the main barrel on its side, hopper end pointed upward, on the cardboard.
• Mount one leg with wheel to the floor end of the main barrel using
three screws, locking washers, and washers, through the three pre-
drilled holes. Install screws from the inside of the main barrel. Repeat
installation for second leg with wheel. Note 2A.
ASSEMBLY PREPARATION
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Before assembly of product, review all parts and reference the parts
list. If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact your
dealer or Pit Boss® Customer Care for parts.
[email protected] | USA: (480) 923-9630 | CANADA (TOLL FREE): 1-877-942-2246
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
Tools required for assembly: screwdriver, wrench and level. Tools not included.
2A
1
G
F E
24
14
14-1
14-2
8
A
C
B
