Outillage nécessaire Tools required

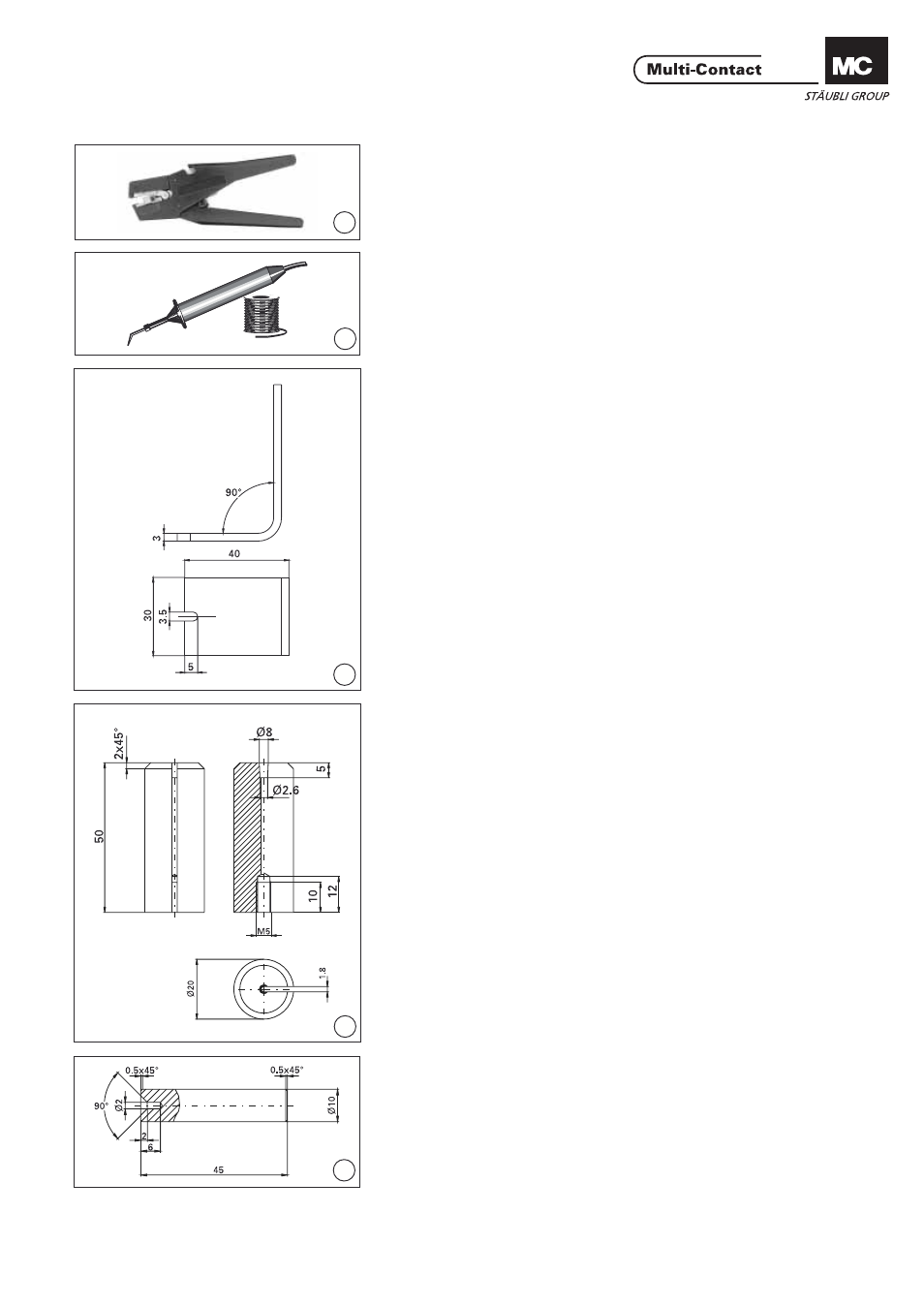

(ill. 1)
Pince à dénuder „Stripax“
No. de Cde 25.0015 (ill. 1)
Cable stripper “Stripax”
Order No. 25.0015
(ill. 2)
- Fer à souder 60W
- Fil de soudure
p.e. fi l de soudure sans plomb Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source d’approvisionne-ment:
www.kester-online.de (ill. 2)
- Soldering iron 60W
- Solder
e.g. lead free solder Ø 1,5
#58/405 (SN95.8Ag3.5Cu.7)
ANSI/J-STD-004
Source of supply:
www.kester-online.de
(ill. 3)
0util auxiliaire 410-BK
Matière recommandée: Acier. (ill. 3)
Auxiliary tool 410-BK
Recommended material: Steel
(ill. 4)
Outil de montage inférieur A-LK1-S.
Matière recommandée: Laiton. (ill. 4)
Lower auxiliary tool A-LK1-S.
Recommended material: Brass.
(ill. 5)
Outil de montage supérieur B-LK Ma-
tière recommandée: Acier. (ill. 5)
Upper auxiliary tool B-LK.
Recommended material: Steel.
