Chapter 5 - 4 cm/14 cm Viewfinders 181
4 cm Viewfinder
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000
5.1 - 4 CM VIEWFINDER
5.1.1 - Main characteristics
• Resolution: 700 TV lines
• Input signal: 1 V peak-to-peak/ 1 kOhm
• Supply voltage: 9.1 Volts
• Consumption: approximately 2.5 W.
• Weight: approximately 0.72 kg.
CAUTION:
To prevent any risk of destruction, do not expose this viewfinder to rain or humidity.
Due to the high voltages used in the viewfinder, the cover is to be removed by qualified
personnel only.

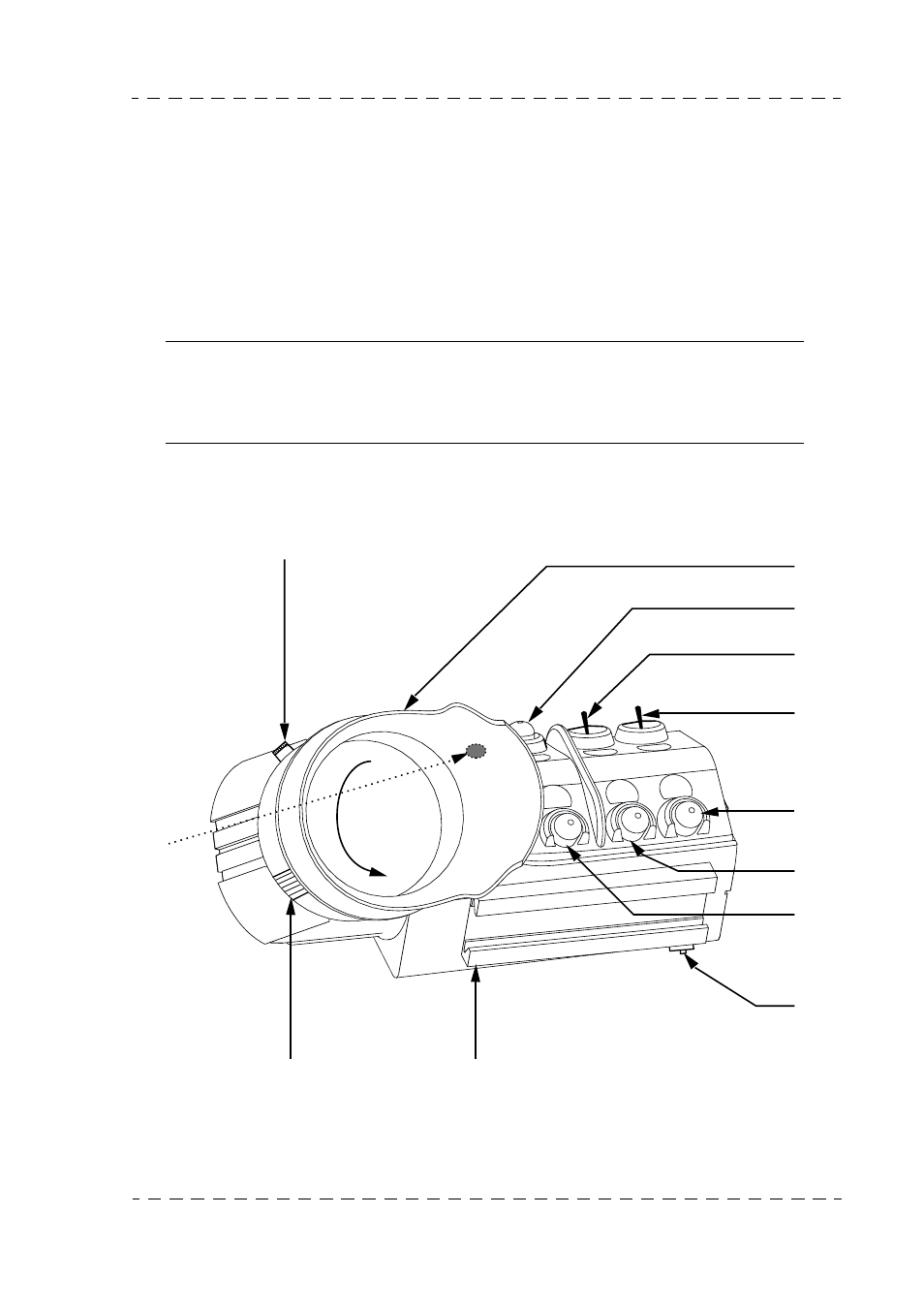

5.1.2 - Controls and functions
1. Focusing ring
2. Eyelet
2
1
BRIGHT
CONT
PEAK
3
4
5
6
7
8
9
10 11
12
