3.3.2.3 - Marker functions
PRGM MARKER 1: Used to select the various markers placed in service either by:
• The «SELECT MARKER 1» function of the Cameraman’s menu.
• The «ZEBRA MARKS» switches of the 4 or 14 cm viewfinders.
Validation of this function is displayed in the following sub-menu:
EXIT: Quit «PRGM MARKERS».
CENTER CROSS: Center cross on-off:
SAFE ZONE: Rectangle outlining the safe area on or off.
• OFF: No safe zone.
• 90%: The safe zone represents 90% of the picture.
• 100%: The safe zone represents 100% of the picture.
P R G M M A R K E R S
- - - - - - - - - - - - - - - - - - - - -
> E X I T
C R O S S C E N T E R : - - -
S A F E Z O N E : - - -
O P P O S I T E F O R M A T : - - -
T O P B A R G R . : - - -
B O T B A R G R . : - - -
B O X : - - -
H P O S B O X : - - -
V P O S B O X : - - -
W I D T H B O X : - - -
H E I G H T B O X : - - -

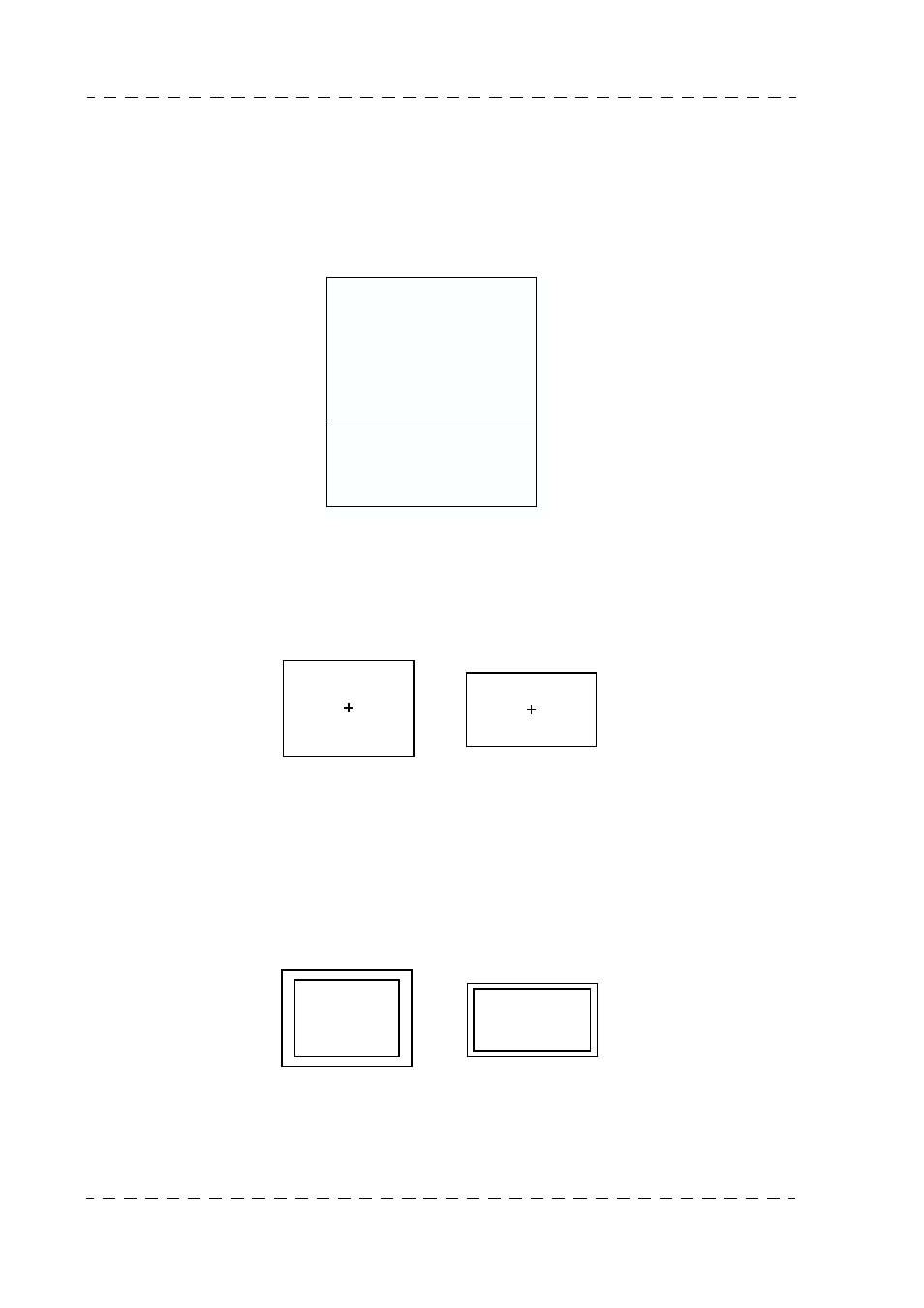

Center cross Center cross
4/3 16/9
Safety zone: 90 (or 100%) Safety zone: 90 (or 100%)
4/3 16/9
