Chapter 2 - Installation 129
Installation of ccu in rack
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000

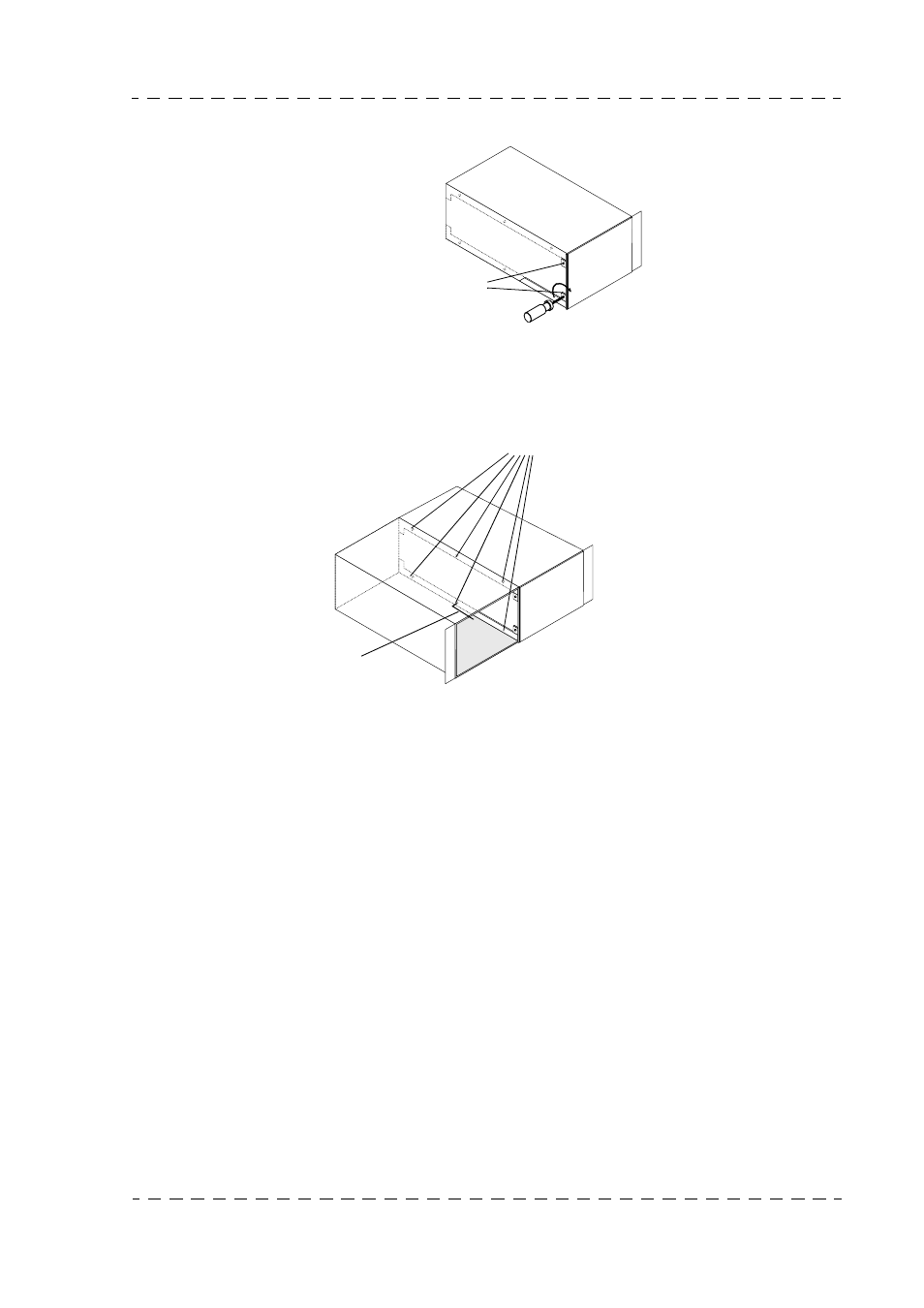

5. Tighten both the 3 mm dia. screws using the screwdriver to attach the front cover.
6. Place both CCU DT500’s side by side.
7. Tighten the six 4 mm dia. screws with the screwdriver from inside the CCU DT500
to the left (power supply unit removed).
8. Place both CCU DT500’s in the 19" rack at the required location and attach it using
both lugs.
++7
2 screws F/90 M3x4
++7
++7
6 screws F/90HC M4x5
allen wrench
