Chapter 8 : UPDATING THE HD SCAN ™
The HD SCAN ™ can be update thanks a COMPUTER (PC) via its REMOTE CONTROL (RS-232) connector.

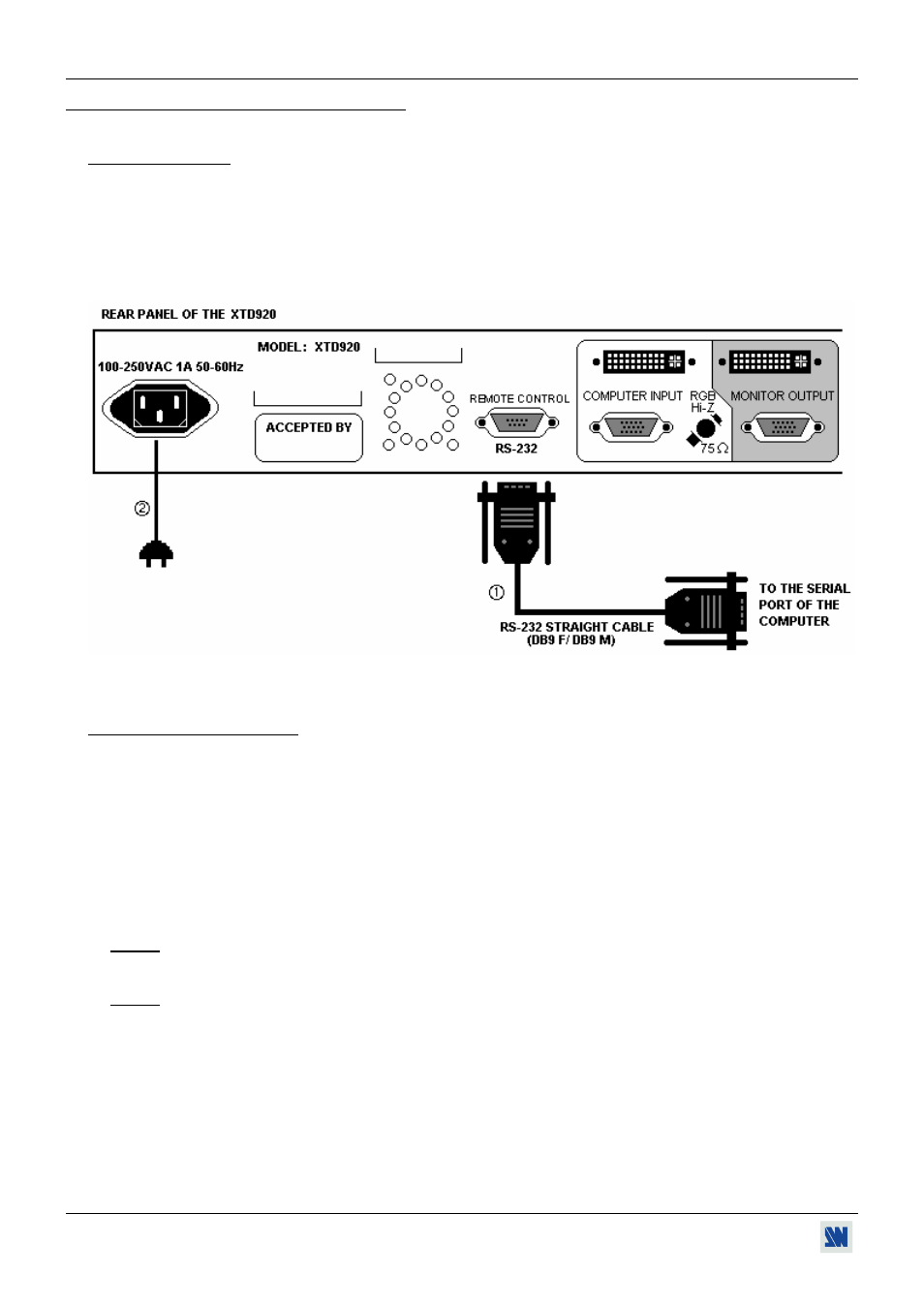

8-1. CONNECTIONS:
c Connect the "REMOTE CONTROL RS-232" connector of the HD SCAN ™ to the SERIAL port of your
COMPUTER with a DB9 M/F straight cable.
d Connect the HD SCAN ™ to an AC power outlet.
e Switch OFF the HD SCAN ™ (FRONT PANEL SWITCH = O).
8-2. UPDATE INSTRUCTIONS:
c Open the file "XTD920 updater" (in start/Program/ANALOG WAY/ HD SCAN).
d Click on "START" on the SOFTWARE.
e Press the ENTER button of the HD SCAN ™ (FRONT PANEL), and SWITCH it ON simultaneously (FRONT
PANEL SWITCH = I ). All front panel LEDs switch ON and OFF, the LCD screen displays Downloading, and the
upgrade will start. Then you can release the ENTER button.
f When the software displays "Program operation completed", SWITCH OFF and ON the HD SCAN ™ with the
FRONT PANEL SWITCH.
g Click on the "Quit" button to close the update SOFTWARE.
NOTE: YOUR HD SCAN ™ IS NOW READY TO WORK.
NOTE: THE UPDATER FILES ARE AVAILABLE ON OUR WEB SITE: www.analogway.com
