22
49-7774
INST
ALLA
TION INSTRUCTIONS
Installation Instructions

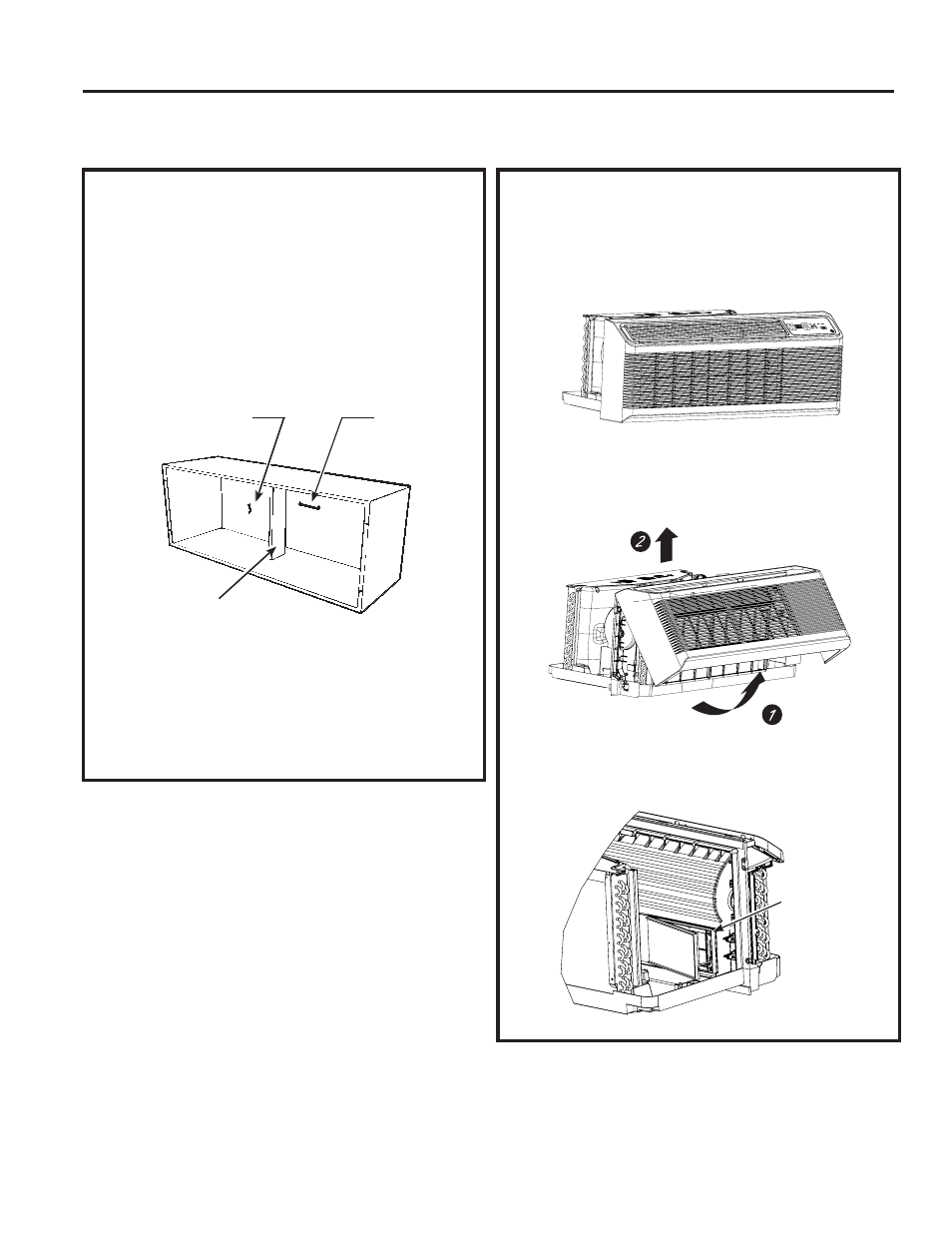

1. INSTALL THE WALL
CASE AND EXTERIOR
GRILLE
7KH5$%$%VHULHVRU5$%$%ZDOOFDVH
must be properly installed per instructions packed
with the case.
• Remove the corrugated stiffener and the outdoor
SURWHFWLYHSDQHO8VHWKHVOLWLQWKHRXWGRRUSDQHO
as a hand hold and push out.
• ,QVWDOOWKHH[WHULRUJULOOHIURPWKHURRPVLGH
following instructions packed with the grille.
NOTE: For installation with a subbase or duct
adapter, see the instructions packed with those kits.
2. PREPARE THE UNIT
• Carefully remove the foam shipping blocks from
WKHURRPIURQWFRPSUHVVRUDQGRXWGRRUIDQ7KHUH
may be multiple blocks and pieces of shipping tape
that need to be removed.
• Remove the room cover by pulling it out at the
ERWWRPWRUHOHDVHLWWKHQOLIWLWXSWRFOHDUWKHUDLO
DORQJWKHXQLWWRS
• ,IYHQWGRRULVWREHRSHUDWLRQDOUHPRYHVKLSSLQJ
screws from the front side of the vent door, if
present.
INSTALLING THE ZONELINE
Shipping tape
/RFDWLRQVPD\YDU\
Remove the
shipping screws
(if operation is
GHVLUHG
Stiffener
Protective
panel
Slit
