25
Dry
er
Saf
ety
Oper
a
tion
R
equir
ements
P
arts and
F
ea
tur
es
Ins
talla
tion
Ins
tructions
Dry
er Use
Appendix
Dry
er Car
e
Tr
oubleshooting
WARNING
•
All gas installations of the dryer must be equipped with Manual Shut-
Off valve.
•
Uncoated copper tubing will corrode when subjected to natural gas,
causing gas leaks. Use ONLY black iron, stainless steel, or plastic-
coated brass piping for gas supply.
•
Check all gas connections for leaks using a soap solution.
•
If bubbles appear, tighten the connections and recheck. DO NOT use
an open flame to check for gas leaks.
CONNECT THE ELECTRICAL WIRING
Review the “ Electric Requirements ” section on page 17.
BEFORE OPERATING OR TESTING, follow the grounding instructions in
the “ Grounding ” section on page 19.

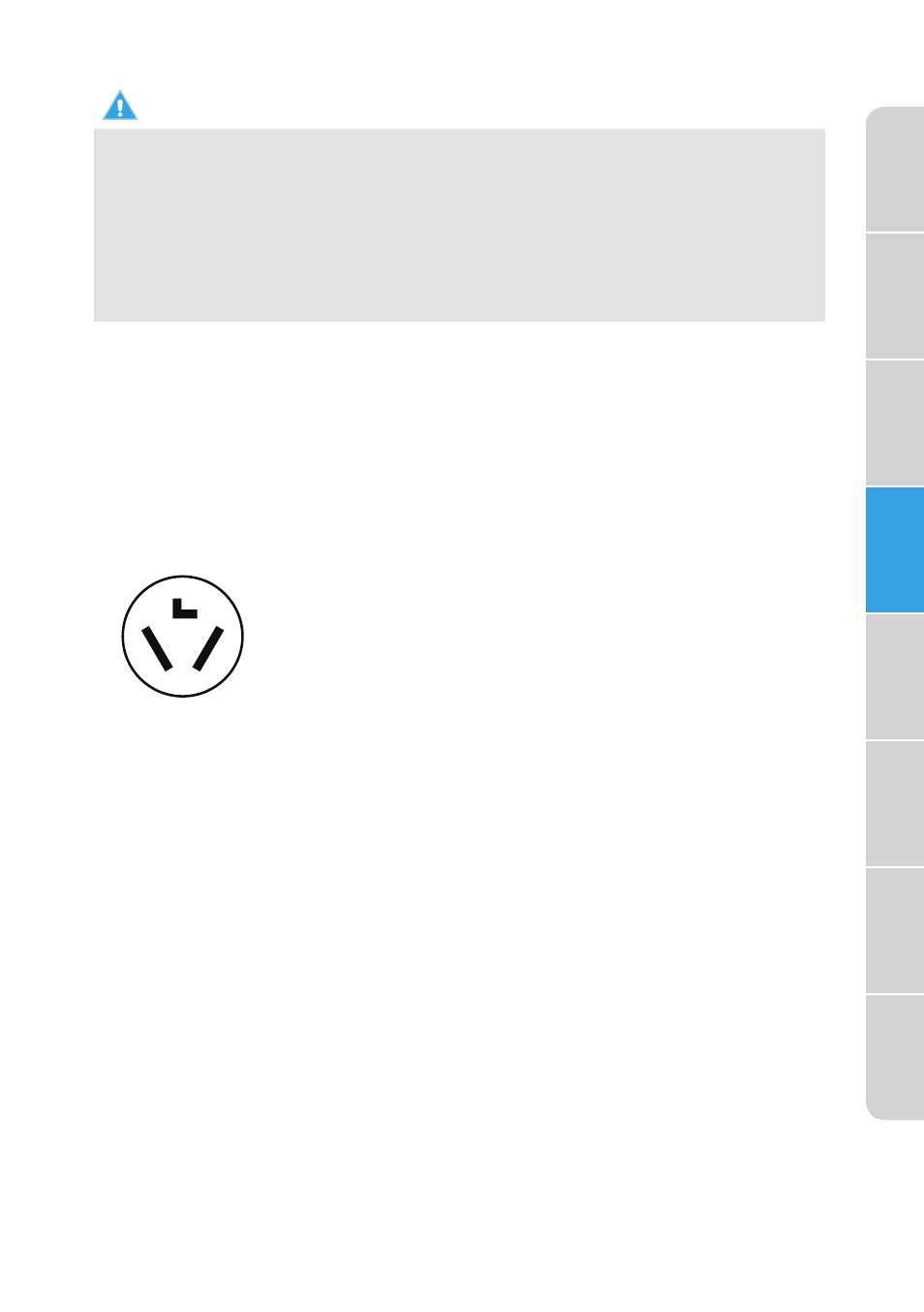

THREE WIRE OUTLET
3-Wire
receptacle
(10-30R)
Then choose a 3-wire power supply cord with ring or
spade terminals and UL listed strain relief. The 3-wire
power supply cord, at least 4 ft. (1.22 m) long, must
have 3 10-gauge solid copper wires and match a
3-wire receptacle of NEMA Type 10-30R.
3-Wire system connections
1. Remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power cord to
the center terminal screw of the terminal block. Be sure to cross the
screw through the ring of the power cord terminal and tighten the
screw.
3. Connect the other wires to the outer terminal block screws. Be sure to
cross the screw through the terminal ring and tighten the screw.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your dryer’s rear panel
slot. Secure the cover with a screw.
