PART# DESCRIPTION
1 Hopper Lid (x1)
2 Hopper Lid Handle (x1)
3 Hopper Safety Screen (x1)
4 Sight Glass - Inside (x1)
5 Sight Glass - Outside (x1)
6 Hopper Housing (x1)
7 Clean-out Door Hook (x1)
8 Clean-out Door (x1)
9 Clean-out Door Hinge (x1)
10 Power Cord (x1)
11 Power Cord Rubber Ring (x1)
12 Hopper Side Handle (x1)
13 Hopper Access Door (x1)
14 Metal End Cap (x1)
15 Nylon Bushing (x1)
16 Auger Flighting (x1)
17 Auger Mounting Bracket (x1)
18 Auger Motor (x1)
19 Fan (x1)
20 Wire Harness (x1)
21 Hopper Housing Bottom (x1)
22 Control Board Lid (x1)
23 Control Board (x1)
24 Sear Station Knob (x1)
25 Sear Station Knob Bezel (x1)
26 Sear Station Control Rod (x1)

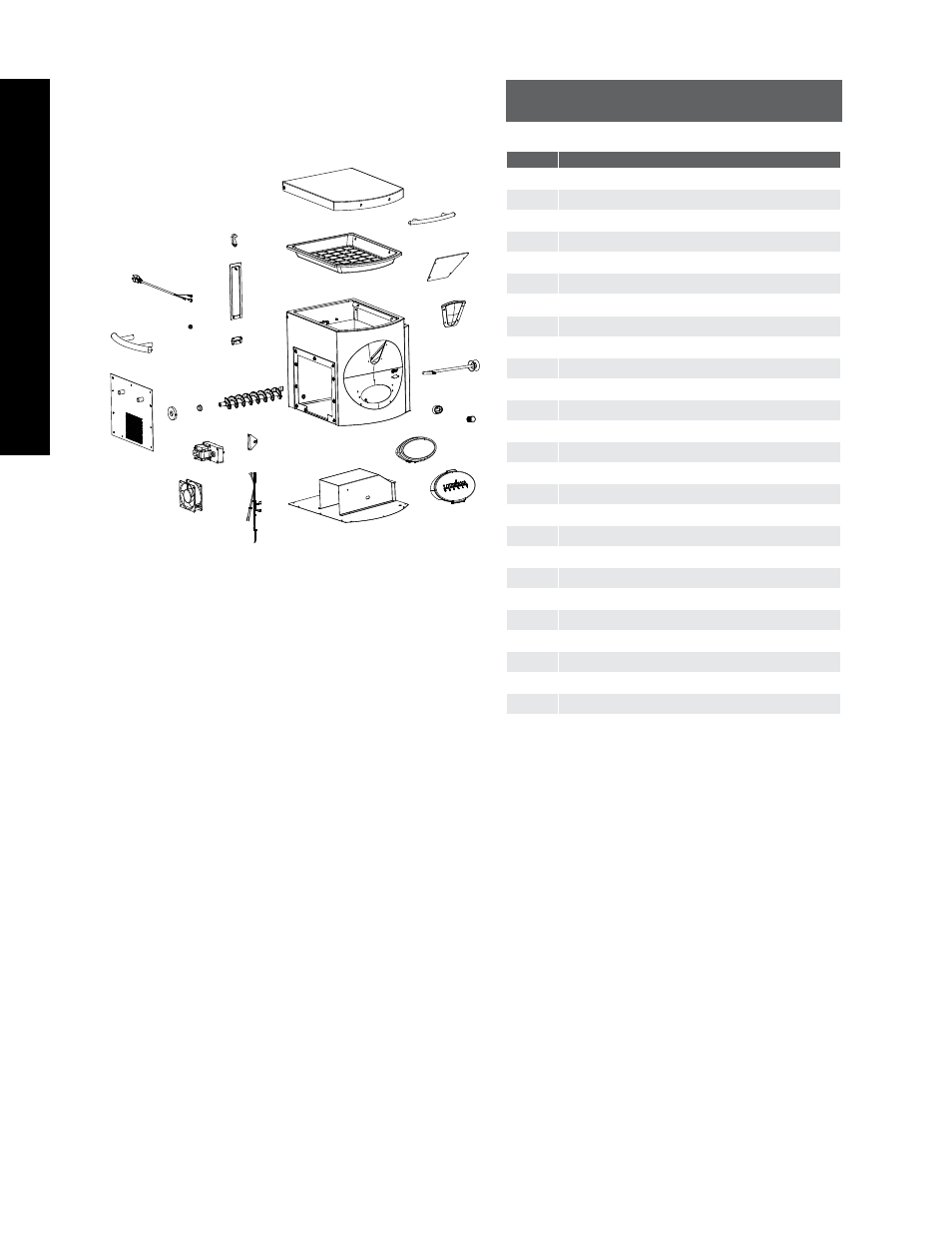

HOPPER
NOTE: Due to ongoing product development, parts are subject to change without notice.
