REPLACEMENT PARTS
CUS
TOMER SUPPOR
T
A B C D
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
7
17
18 19
20
20A
21A 20B
21B
21

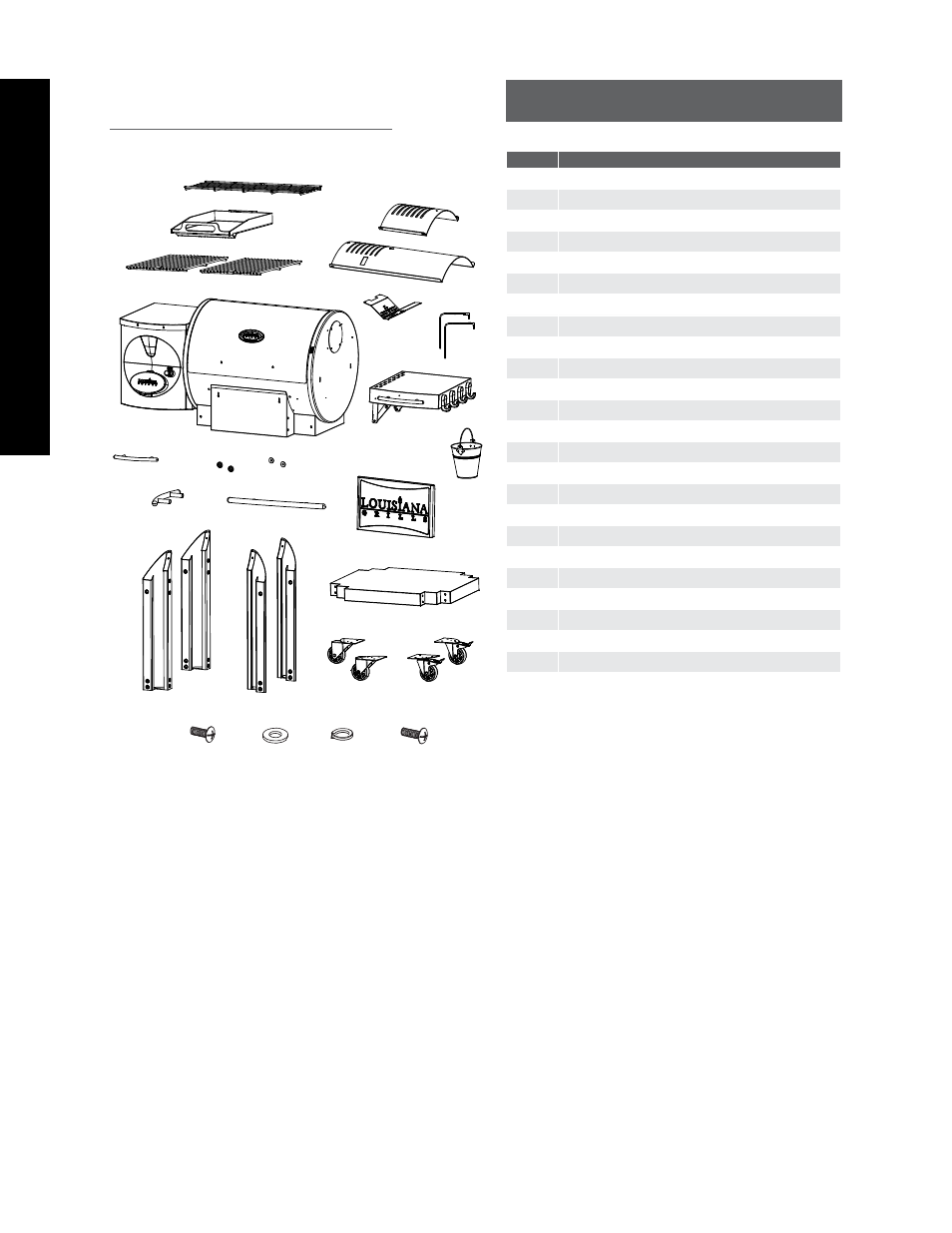

PART# DESCRIPTION
1 Upper Cooking Rack (x1)
2 Griddle (x1)
3 Cooking Grids (x2)
4 Flame Broiler Slider (x1)
5 Flame Broiler Main Plate (x1)
6 Burn Grate (x1)
7 Meat Probe (x2)
8 Main Barrel / Hopper Assembly (x1)
9 Side Shelf (x1)
10 Grease Bucket (x1)
11 Hopper Lid Handle (x1)
12 Hopper Side Handle (x1)
13 Lid Handle Washer (x2)
14 Lid Handle Bezel (x2)
15 Lid Handle (x1)
16 Front Shelf (x1)
17 Bottom Shelf (x1)
18 Support Leg A (x2)
19 Support Leg B (x2)
20 Caster Wheel (x2)
21 Locking Caster Wheel (x2)
A Screw (x28)
B Washer (x44)
C Locking Washer (x44)
D Screw (x16)
LG0800FL
NOTE: Due to ongoing product development, parts are subject to change without notice.
