17
ENGLISH
www.louisiana-grills.com
G W
W W W
W
W
W
W W Y
W Y
B
B
B
B
R
R
K
W W W W Y B R K
W
K
N
N
S
S
W
W
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
300W, 110-120V,
9.5MM x 127MM (0.375” x 5.000”)
COMBUSTION & COOLING FAN
110-120V, 50/60Hz, 14.4W,
CFM110, 1 PHASE
GROUNDED POWER CORD
VW-1, 105°C/221°F, 18-3
STANDARD
AUGER FEED SYSTEM
110-120V, 50/60Hz,
30W, 2 RPM MOTOR
CONNECTOR BOX (8 PIN)
GROUND
CONTROL
BOARD
GRILL PROBE
LIGHTS
35W, 120V
GRILL PROBE SPADE
CONNECTORS FAST-BLOW FUSE
WIRE HARNESS
CONNECTOR BOX
INDEX
W white
Y yellow
B blue
R red
K black
N brown
S silver
G green

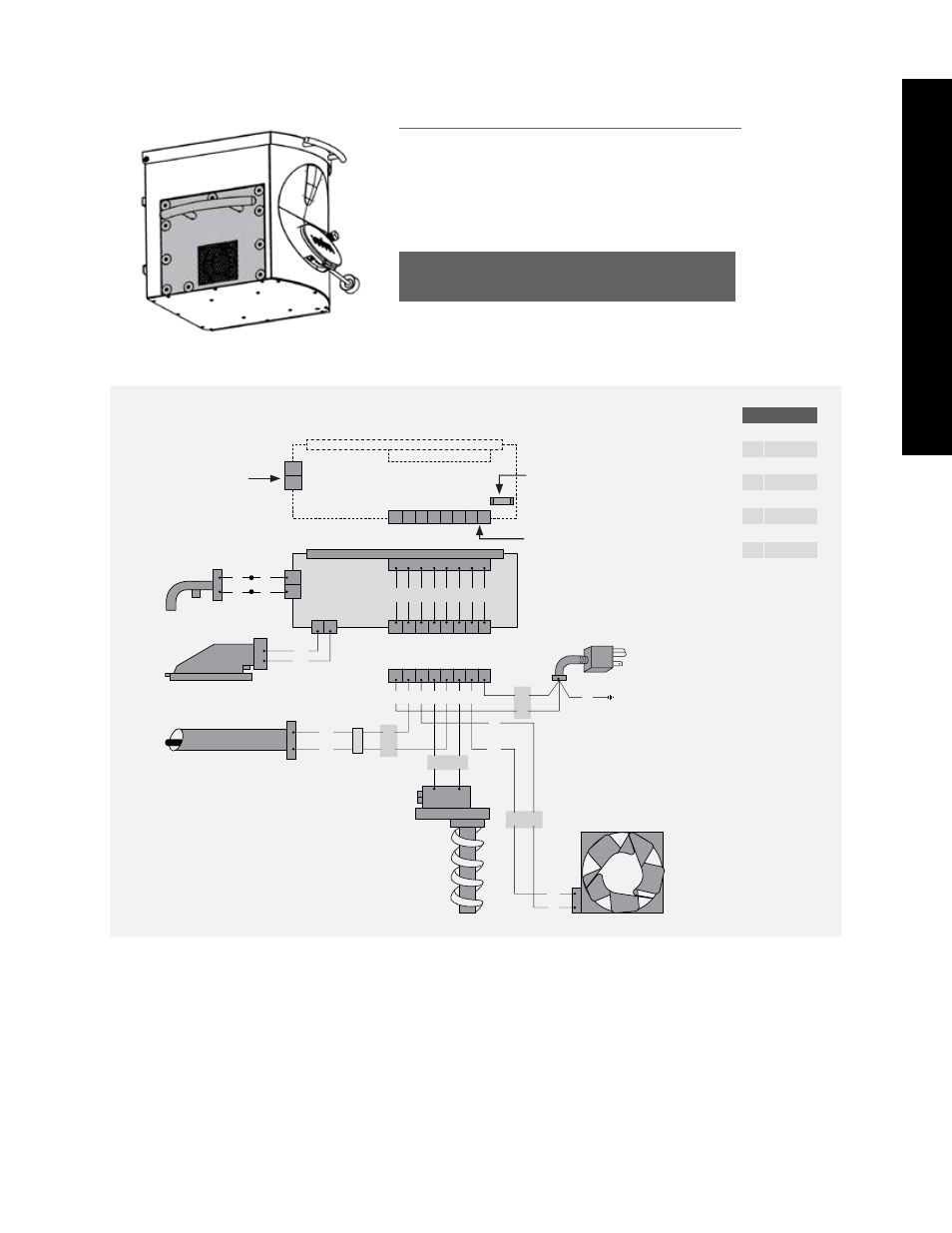

ELECTRICAL COMPONENTS
The Digital Control Board system is an intricate and valuable piece of technology. For
protection from power surges and electrical shorts, consult the wire diagram below to
ensure your power source is sufficient for the operation of the unit.
HOPPER ACCESS PANEL
Locate the ten screws on side of the hopper to access the electrical components. Once
the screws are removed, the access panel can open.
ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 410 W, 3-prong grounded plug
NOTE: Electrical components, passed by product safety testing and certification services, comply with a testing tolerance of ±
5-10 percent.
