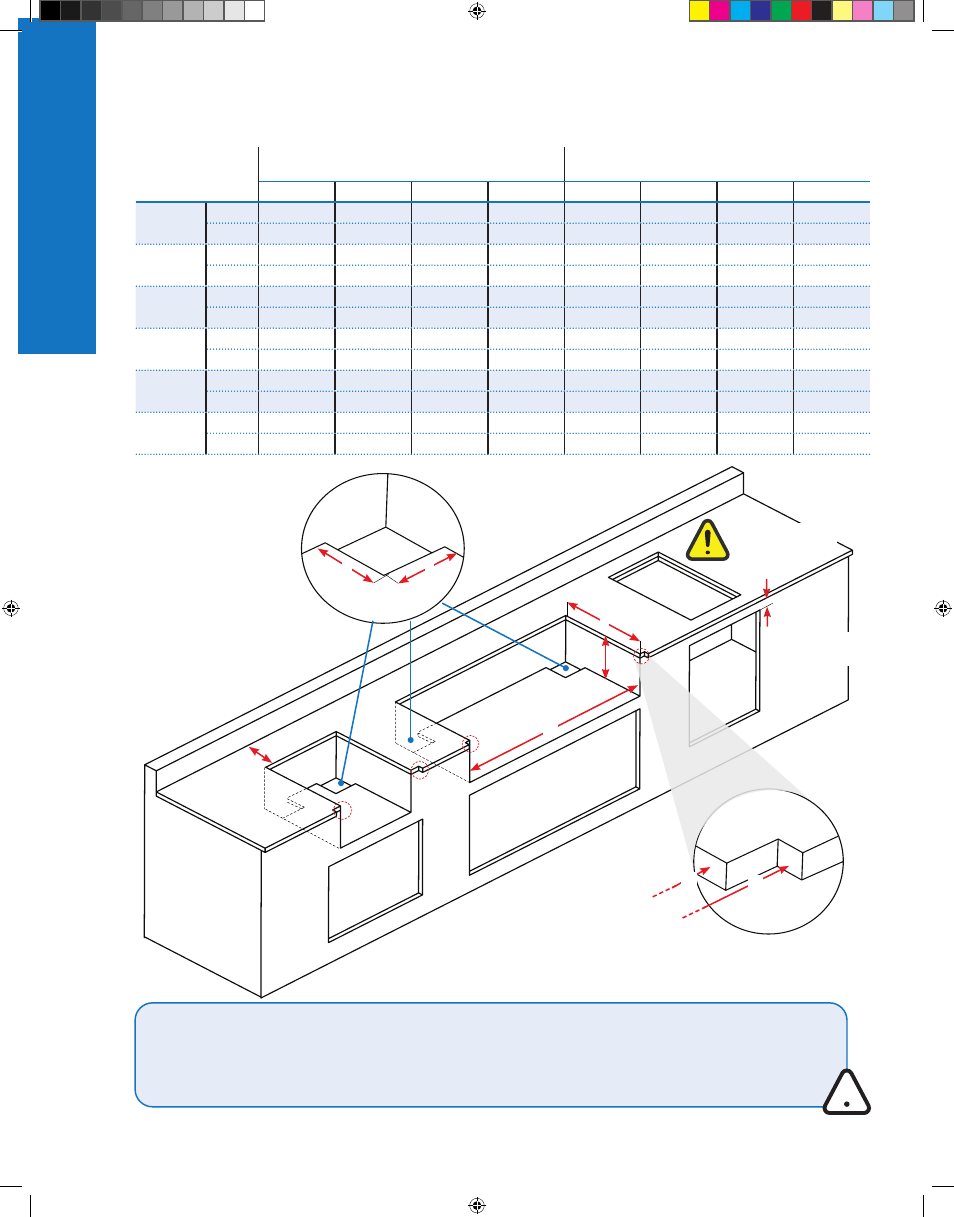

6
| Getting Started Napoleon.com | BUILT-IN Series
G
et
tin
g S
ta
rt
ed
D
A B
H
W
W X
Non combustible
countertop
C
A = 6.5" (16.5 CM)
B = 6.5" (16.5 CM)
C = 5.7" (14.5 CM) MIN.
E*
E* = 4.25"
(10.8 CM) MAX.
c
ut
-o
ut
d
imenSionS
WARNING ! The cabinet frame and the cabinet MUST be made from non-combustible material when the appliance
is not installed with the Zero Clearance Liner corresponding to your unit. Refer to the parts list in your Assembly
Guide for specific information.
CAUTION ! If enclosure houses an LPG cylinder, this construction must comply with the built-in cylinder enclosure
instructions. Refer to 'Gas Connections' .
!
MODEL
OPENING DIMENSIONS (INCH / CM)
OPENING DIMENSIONS (INCH / CM)
INSTALLING ZERO CLEARANCE LINER
W X D H W X D H
BIG32 / BI32
Min. 30 / 76.2 33.50 / 85.1 19.4 / 49.3 10.25 / 26.0 34 / 86.4 35.38 / 89.9 21.38 / 54.3 10.38 / 26.4
Max. 32 / 81.3 - 19.75 / 50.2 - - - - -
BIG38
Min. 36 / 91.4 39.50 / 100.3 19.4 / 49.3 10.25 / 26.0 40 / 101.6 41.38 / 105.1 21.38 / 54.3 10.38 / 26.4
Max. 38 / 96.5 - 19.75 / 50.2 - - - - -
BIG44
Min. 42 / 106.7 45.50 / 115.6 19.4 / 49.3 10.25 / 26.0 46 / 116.8 47.38 / 120.3 21.38 / 54.3 10.38 / 26.4
Max. 44 / 111.8 - 19.75 / 50.2 - - - - -
BIB18
Min. 18 / 45.7 21.50 / 54.6 19.4 / 49.3 10.25 / 26.0 22 / 55.9 23.38 / 59.4 21.38 / 54.3 10.38 / 26.4
Max. 20 / 50.8 - 19.75 / 50.2 - - -- - -
BIB12 / BI12
Min. 12 / 30.5 15.50 / 39.4 19.4 / 49.3 10.25 / 26.0 16 / 40.6 17.38 / 44.1 21.38 / 54.3 10.38 / 26.4
Max. 14 / 35.6 - 19.75 / 50.2 - - - -
BIB10 / BI10
Min. 10 / 25.4 - 18.75 / 47.6 6 / 15.2 - - - -
Max. 12 / 30.5 - 20.75 / 52.7 - - - - -
E* = For use with the installation of a Napoleon BI door.
