Maintenance instructions, Mai nte na nc e – Napoleon 700 Series 38 Inch Built-In Gas Grill Owner's Manual Manuel d'utilisation
Page 20
20
| Maintenance
Napoleon.com
| BUILT-IN Series
M
ai
nte
na
nc
e
Maintenance Instructions
WARNING
! Keep the grill away from combustible materials, gasoline, and other flammable vapors and liquids.
!
c
omBuStion
in
air
adjuStment
!
IMPORTANT
! This must be done by a qualified gas installer.
• The air shutter is factory set and should not require adjusting under
normal conditions. Adjustments might be required under extreme field
conditions.
• The flames of the air shutter will be dark blue, tipped with light blue and
occasionally yellow when adjusted correctly.
• Too little air flow to the burner will produce soot and lazy yellow flames.
• Too much air flow to the burner will cause flames to lift erratically and
cause igniting difficulties.
Adjusting the Air Shutter
1. Remove cooking grids and sear plates. Leave lid open.
2. You may have to open the cabinet door or remove the top drawer (if
equipped) to access the air shutter screw located at the mouth of the
burner.
3. Remove the back cover to adjust rear tube burner air shutter.
4. Loosen air shutter lock
screw and open or close air
shutter as required.
(Fig. 1)
5. Light the burners on high.
6. Visually inspect burner
flames.
7. Turn burners off, tighten
locking screws, and replace
removed parts when
shutters are set correctly.
8. Ensure insect screens are
installed.
Note:
Infrared burners have no
air adjustment.

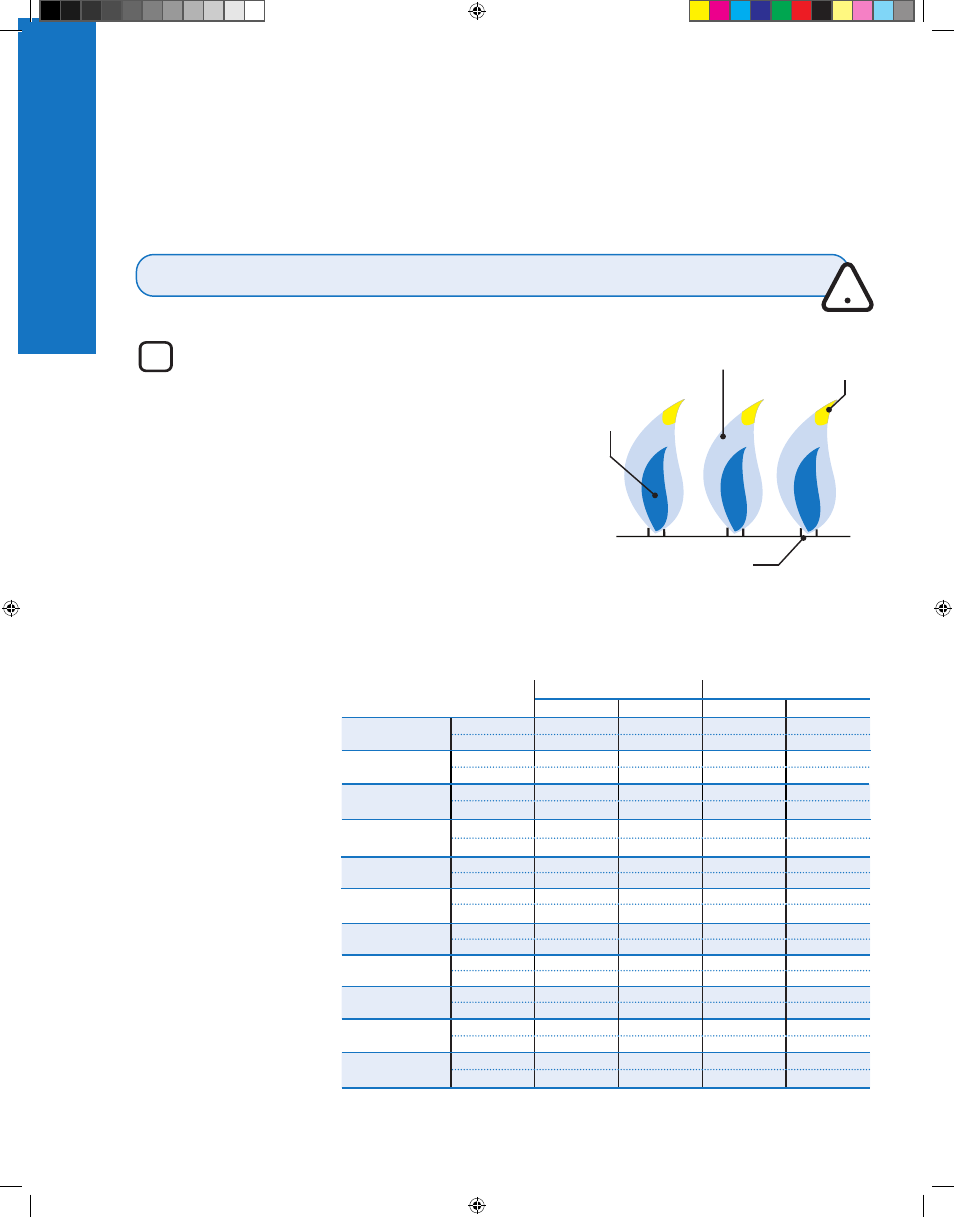

Burner Port
Yellow Tip
Dark Blue
Light Blue
RECOMMENDATIONS
This grill should be thoroughly inspected and serviced annually by a qualified service person.
• Do not obstruct the flow of ventilation and combustion air.
• Keep the cylinder enclosure ventilation openings located on the side of the cart or enclosure and front and back of the
bottom shelf clear from debris.
Model
Orifice Size
Air Shutter
Main Burner
Rear Burner Main Burner Rear Burner
BIG32RB
Propane
#60
1.25mm
1/2"
Full
Natural gas
1.45mm
#50
3/8"
Full
BIG38RB
Propane
#60
1.25mm
1/2"
Full
Natural gas
1.45mm
#50
3/8"
Full
BIG44RB
Propane
#60
1.25mm
1/2"
Full
Natural gas
1.45mm
#50
3/8"
Full
BI32
Propane
#60
-
-
-
Natural gas
1.45mm
-
-
-
BIB10RT / BI10RT
Propane
#64
-
-
-
Natural gas
#55
-
-
-
BIB10IR
Propane
#64
-
-
-
Natural gas
1.27mm
-
-
-
BIB12RT / BI12RT
Propane
1.2mm
-
-
-
Natural gas
1.7mm
-
-
-
BIB18RT
Propane
1.2mm
-
-
-
Natural gas
1.7mm
-
-
-
BIB18IR
Propane
1.15mm
-
-
-
Natural gas
#52
-
-
-
BIB18PB
(outer ring)
Propane
1.75mm
-
-
-
Natural gas
2.4mm
-
-
-
BIB18PB
(inner ring)
Propane
1.4mm
-
-
-
Natural gas
2.05mm
-
-
-
Fig. 1
