Montage Assembly

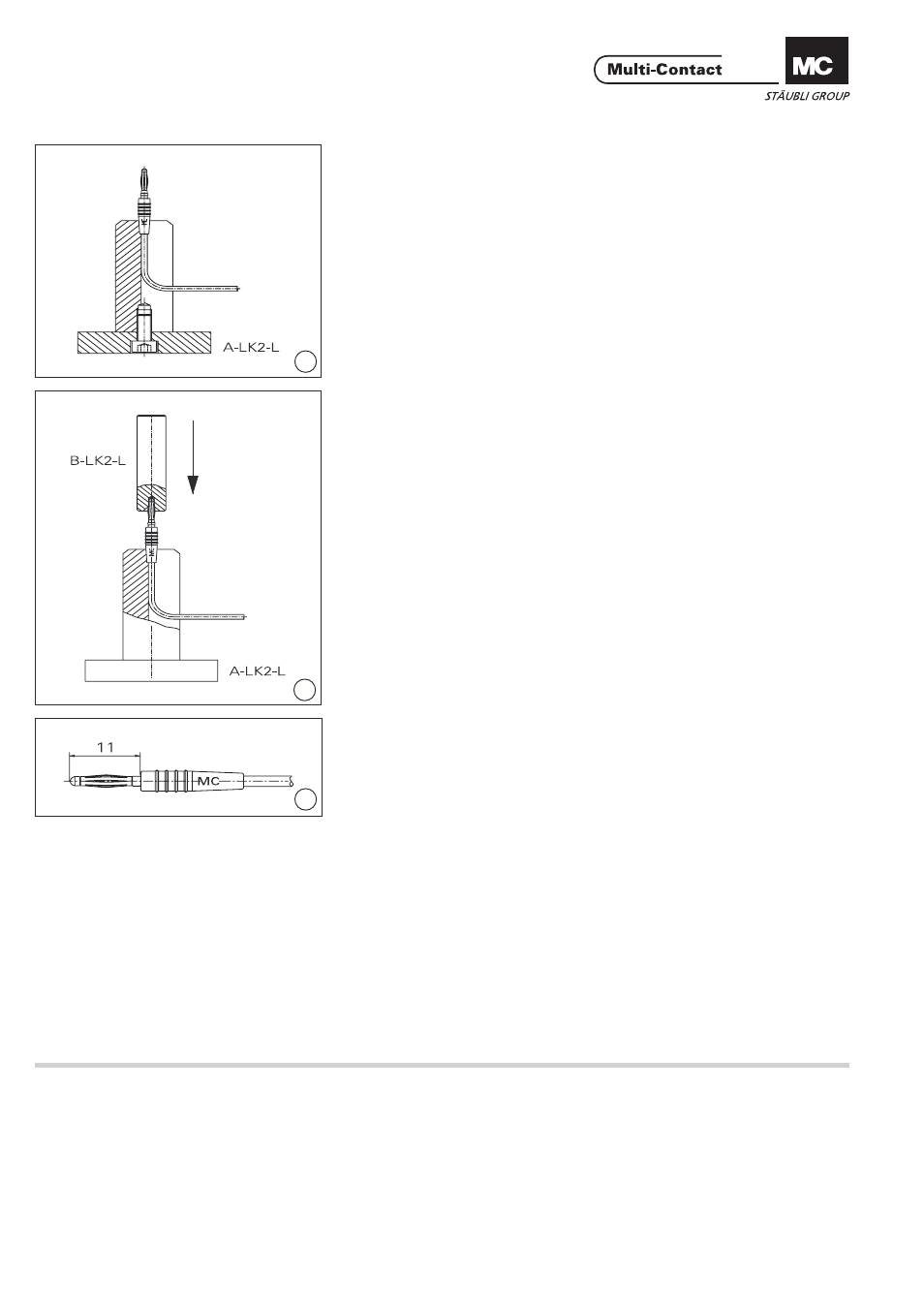

(ill. 7)
Introduire manuellement la fi che dans
le corps isolant et placer l‘ensemble
dans l‘outil de montage A-LK2-L (ill. 7)
Insert by hand the plug into insula-
tor and then place into auxilliary tool
A-LK2-L.
(ill. 8)
Positionner l‘outil de montage
B-LK2-L en face de la fi che et presse r
lentemen t la fi che jusqu‘au point
d‘arrê t à l‘aide d‘une petite presse. (ill. 8)
Align auxiliary tool B-LK2-L with plug
and slowly press-in plug to the end
position with the help of a bench drill-
ing machine or lever press.
(ill. 9)
Vérifi er l‘encliquetage. (Longueur de
la partie visible de la fi che: 11mm) (ill. 9)
Control snap-in. The distance between
the insulator and the top of plug must
be 11mm.
