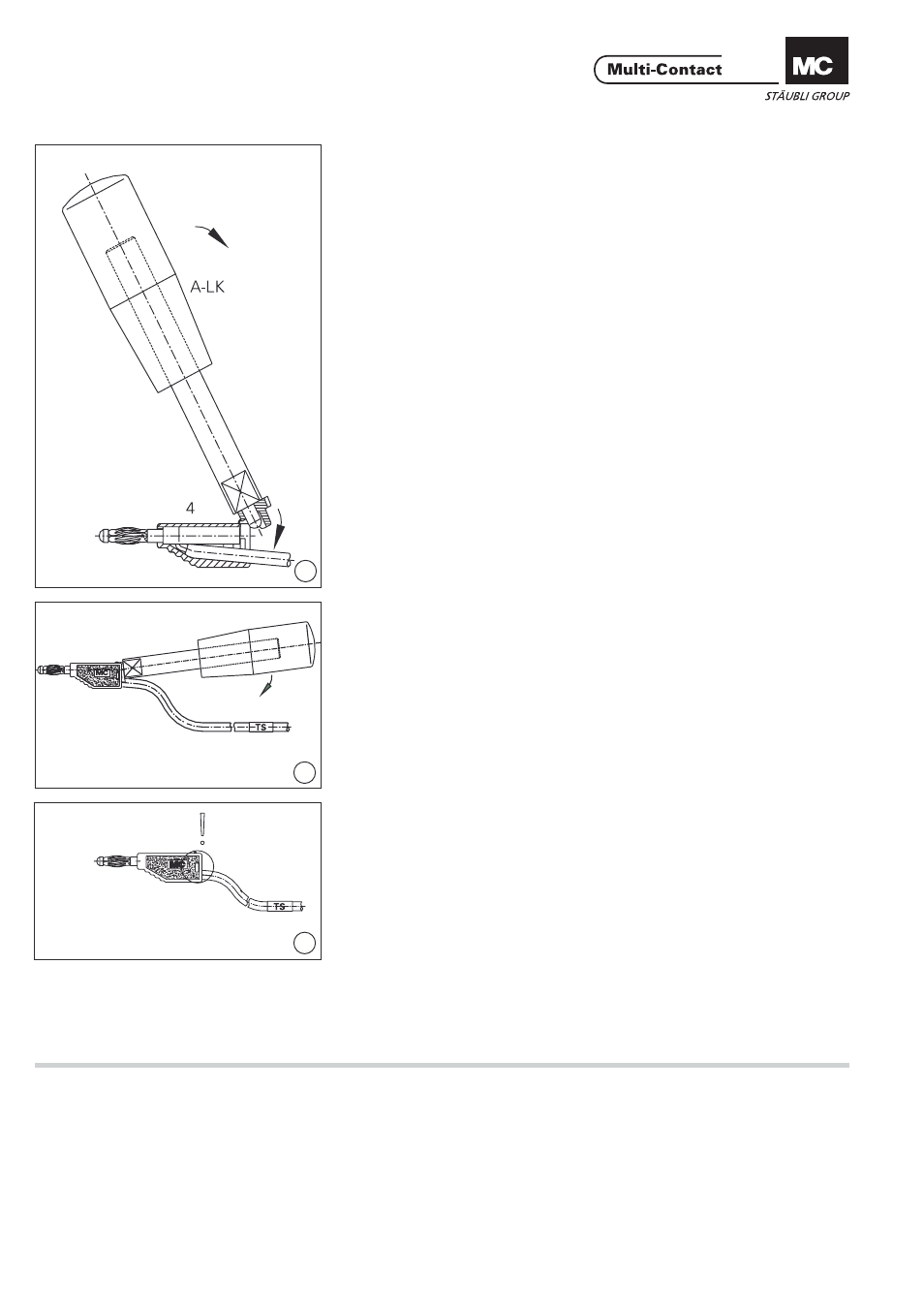

(ill. 7)
Insérer l‘outil A-LK dans le volet de
fermeture du capuchon isolant. (ill. 7)
Insert auxiliary tool A-LK into hinged
fastening cap.
(ill. 8)
Rabattre le volet de fermeture du ca-
puchon isolant jusqu‘au point d‘arrêt. (ill. 8)
Press and snap the fastening cap into
position.
(ill. 9)
Contrôler l‘encliquetage complet du
volet de fermeture. (ill. 9)
Visually check the snap-in parts for
correct assembly.
