Chapter 1 : INTRODUCTION (continued) CENTRIX™ & EVENTIX™
PAGE 8
1-3. REFERENCES
MODELS &
OPTIONS
DESIGNATIONS
CTX8022 CENTRIX ™ .
CTX8022-D CENTRIX ™ with SDI & DVI inputs.
EVX8022 EVENTIX ™ .
EVX8022-D EVENTIX ™ with SDI & DVI inputs.
EVX8022HD-D EVENTIX ™ with SDI & DVI inputs & HDTV outputs (HD YUV & HDSDI).
OPT-iX-SDTVD1 Optional SDTV video output (COMPOSITE VIDEO + S.VIDEO + YUV + SDI). This option is
available with all models except for the EVX8022HD-D model.
OPT-iX-A Optional AUDIO input/output. This option is available with all models.
CBD-UP CROSS BLENDER ™ . Optional version for "Edge blending" application. This option is available
with EVENTIX models only.
1-4. OPTIONAL ACCESSORIES
REFERENCES DESIGNATIONS
RK8022 Remote keypad for CENTRIX ™ / EVENTIX ™ .
RK8022-T Remote keypad with T-BAR for CENTRIX ™ / EVENTIX ™ .
TRC8022 Remote console for CENTRIX ™ / EVENTIX ™ . Allows to control up to 3 devices.
SWM-OE Remote control Software for 16 CENTRIX ™ / EVENTIX ™ . Allows to control up to 16 devices.
1-5. CENTRIX ™ / EVENTIX ™ INSTALLATION
IMPORTANT: Please read all of the safety instructions (pages 4 to 6) before starting.
• Table top mounting: The device can be used directly on a table: the unit is equipped with 4 plastic feet.
• Rack mounting: The device is compatible with a 19” enclosure. Please follow the instructions below to install the
device in a 19” rack.
c Place the device in your rack.
NOTE: Your rack must be equipped with some braces.
d Attach the device to the rack by using 4 screws in the front panel holes (screws are not
included).
e Connect all of the cables of the device and attach them to the rack with some tie wraps.

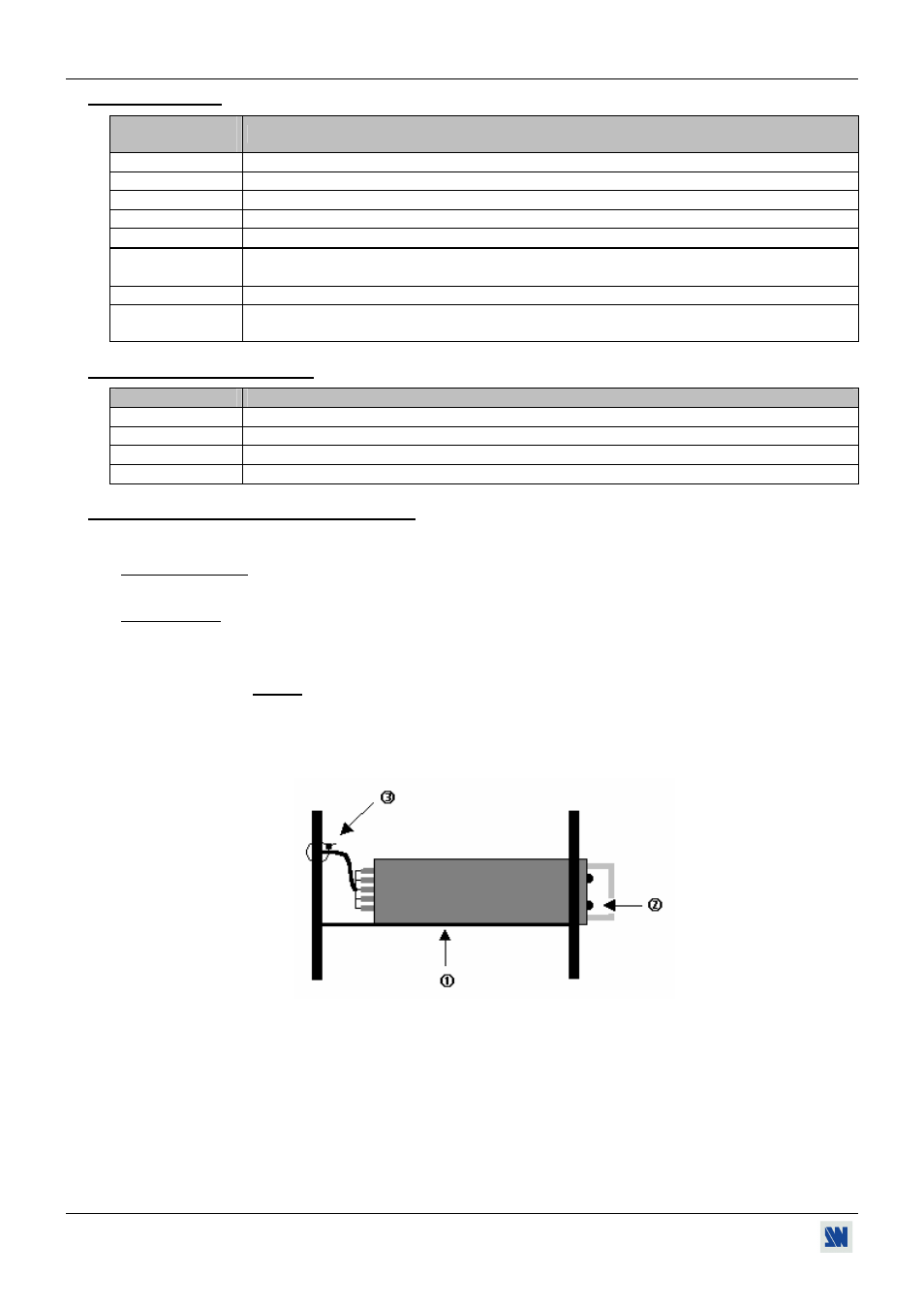

Figure 1
IMPORTANT: - The openings in the side and in the rear panel are for cooling. Do not cover these openings.
- Be sure that no weight in excess of 2 kg (4.4 Lbs.) is added onto the CENTRIX ™ / EVENTIX ™ .
- The maximum ambient operating temperature must not exceed 40 °C (104 °F).
- The rack and all mounted equipment in it must be reliably grounded to national and local
electrical codes.
