ELECTRICAL CONNECTION

Be sure your appliance is properly installed and grounded

by a qualified technician. Ask your dealer to recommend a

qualified technician or an authorized repair service.

This appliance is manufactured is with a green GROUND

wire connected to the oven body. After making sure that

the power has been turned off, connect the flexible conduit

from the oven to the junction box using a U.L. listed conduit

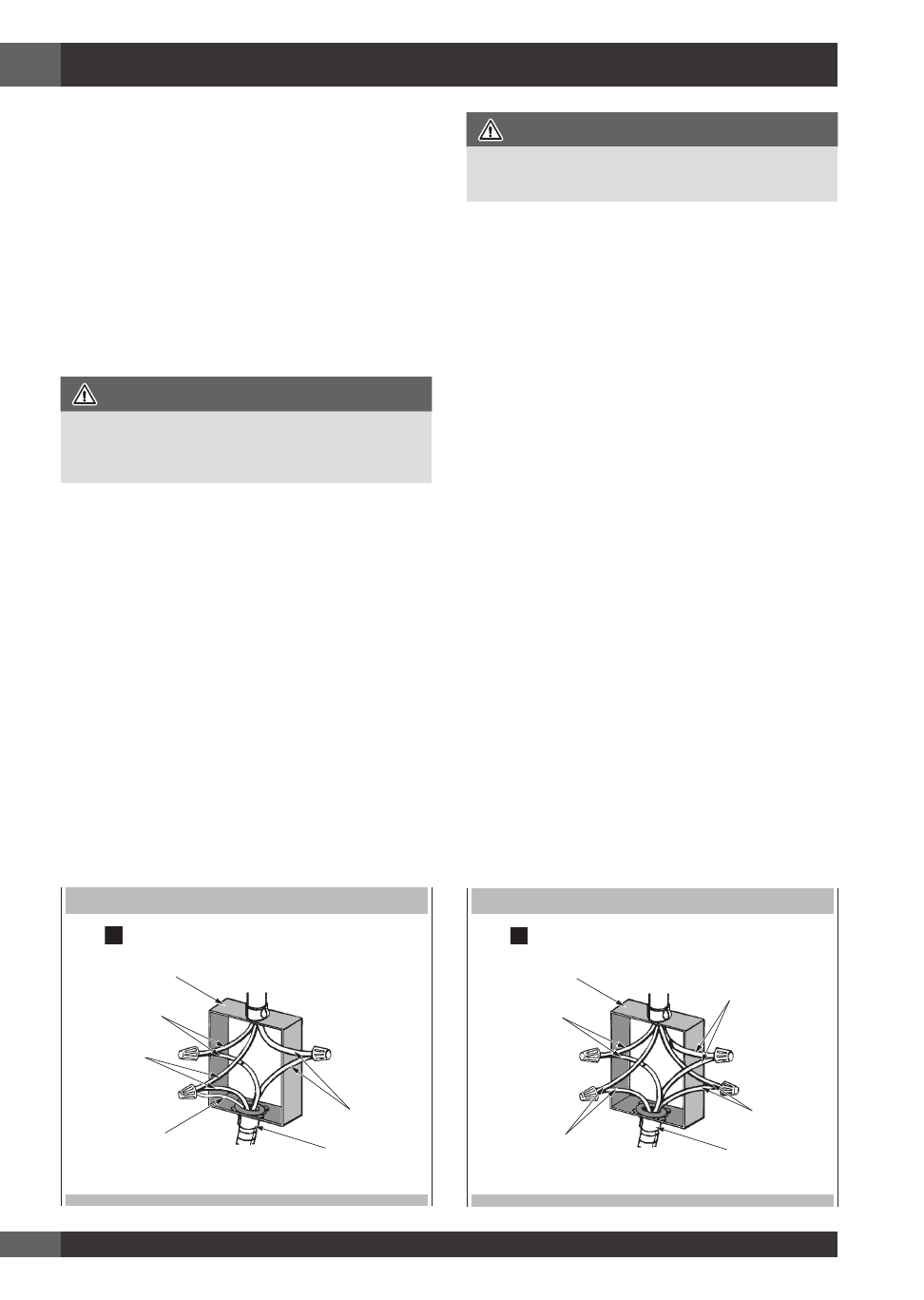

connector. Figures A and B and the instructions provided

below present the most common way of connecting the

ovens.

Your local codes and ordinance, of course, take precedence

over these instructions. Complete electrical connections

according to local and national electrical codes.

WARNING

MEANS FOR DISCONNECTION MUST BE

INCORPORATED IN THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded, metallic,

permanent wiring system, or an equipment grounding

conductor should be run with the circuit conductors and

connected to the equipment grounding terminal or lead on

the appliance.

3-Wire branch circuit (for US only)

Refer to Figure A, where local codes allow the connection of

GROUND wire from the oven to the branch circuit NEUTRAL

wire (gray or white colored wire):
- If local codes permit, connect the green GROUND wire

from the oven and the white wire from the oven to the

branch circuit NEUTRAL wire (gray or white colored wire).

- Connect the red and black leads from the oven to the

corresponding leads in the junction box.

GROUNDED NEUTRAL

White wires

Cable from

power supply

Junction box

UL listed conduit

connector

Red wires

Black wires

Cable

from oven

Bare or

green wire

WARNING

Risk of Electric Shock, frame grounded to neutral of

appliance through a connection.

Ground through the neutral conductor is prohibited for new

branch-circuit installation (1996 NEC); mobile homes; and

recreation vehicles, or in an area where local codes prohibit

grounding through the neutral conductor. For installations

where grounding through the neutral conductor.

For installations where grounding through the neutral

conductor is prohibited:
• Disconnect the ground from the neutral at free end of

conduit;

• Use grounding terminal or lead to ground unit; and usual

procedure.

4-Wire branch circuit (for US and

CANADA)

Refer to Figure B:
- Connect the green GROUND wire from the oven to the

GROUND wire in the junction box (bare or green colored

wire).
