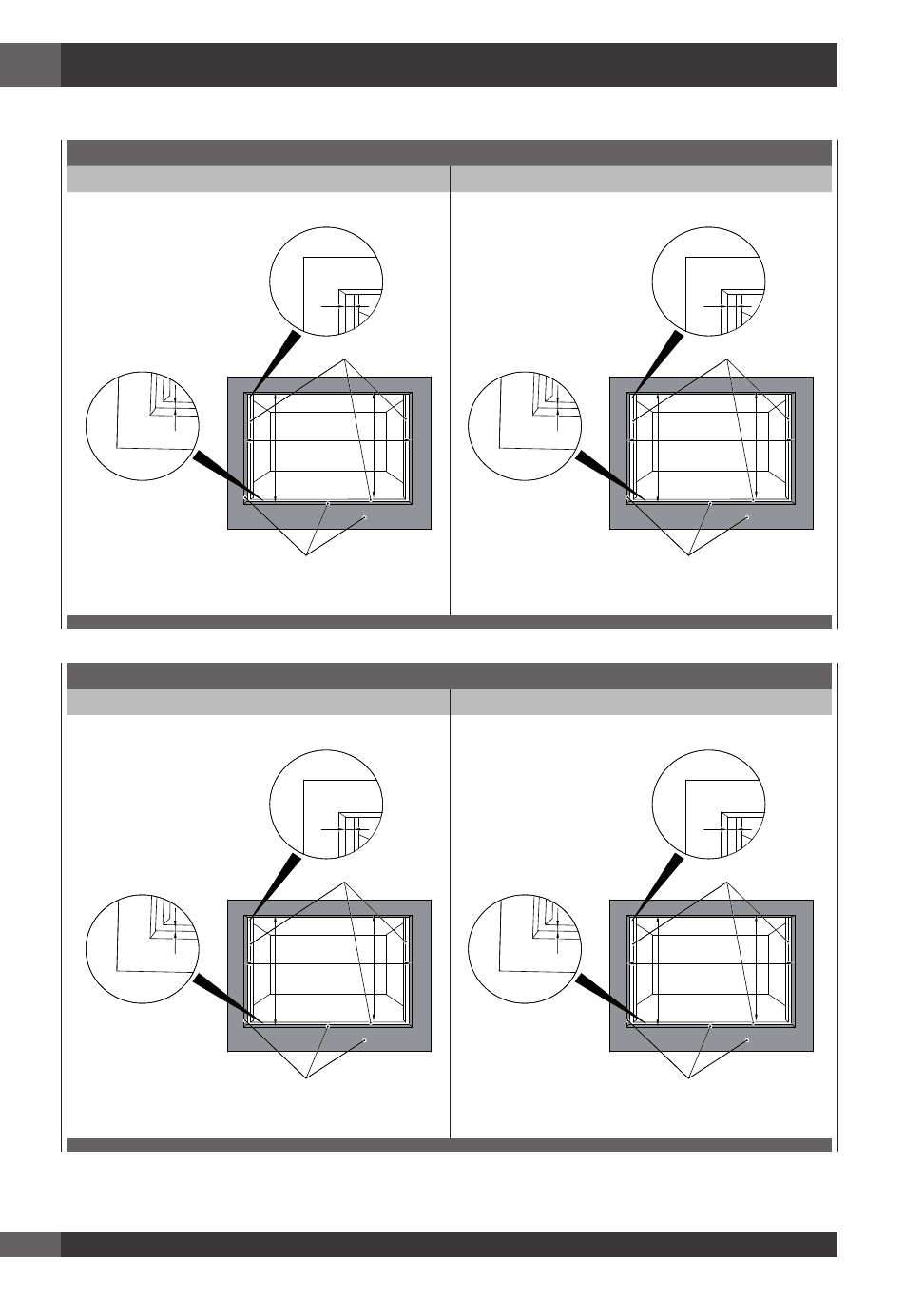

FLUSHMOUNT INSTALLATION
24” (60 cm)
Flat aesthetics Protruding aesthetics
Mounting strip
Finished surfaces
(same finish like the cabinet)
min 18-1/8” (461)
18" (458)
min 23-3/4” (600)
3/4”
(19)
1/8”
(3)
Mounting strip
Finished surfaces
(same finish like the cabinet)
min 19-1/4” (488)
18" (458)
min 23-3/4” (600)
3/4”
(19)
1-1/8"
(30)
30” (75 cm)
Flat aesthetics Protruding aesthetics
Mounting strip
Finished surfaces
(same finish like the cabinet)
min 18-7/8” (479)
18-3/4" (476)
min 30-1/16”
(764)
2”
(50)
1/8”
(3)
Mounting strip
Finished surfaces
(same finish like the cabinet)
min 20” (506)
18-3/4" (476)
min 30-1/16”
(764)
2”
(50)
1-1/8”
(30)
