Cabinet Dimensions
NOTE: After making the countertop cutout, some installations
may require notching down the base cabinet side walls to clear
the cooktop base. To avoid this modification, use a base cabinet
with sidewalls wider than the cutout.
■
A minimum side clearance of 6" (15.2 cm) is recommended
between side of cooktop and side wall for maximum
ventilation performance.
Cutout Dimensions
Venting Requirements
IMPORTANT: This cooktop must be exhausted outdoors unless
using the Duct-Free Filter Accessory Kit. See the “Venting
Methods” section.
■
Do not terminate the vent system in an attic or other
enclosed area.
■
Use a vent cap.
■
Vent system must terminate to the outside.
■
Use only a 6" (15.2 cm) diameter round or 3 1 /
4
" x 10"
(8.3 cm x 25.4 cm) rectangular vent except as follows: For
electric cooktops, a 5" (12.7 cm) diameter round vent may
be used for venting straight out the back of the cooktop
and directly through the wall for 10 ft (3.0 m) or less.
■
Before making cutouts, make sure there is proper clearance
within the wall or floor for the exhaust vent.
■
Do not cut a joist or stud unless absolutely necessary. If a
joist or stud must be cut, then a supporting frame must be
constructed.
■
The size of the vent should be uniform.
■
The vent system must have a damper.
■
Use vent clamps to seal all joints in the vent system.
■
Use caulking to seal exterior wall or roof opening around
the cap.
■
Determine which venting method is best for your application.
D
A
E
I
J K
G
H
L
C
F
B

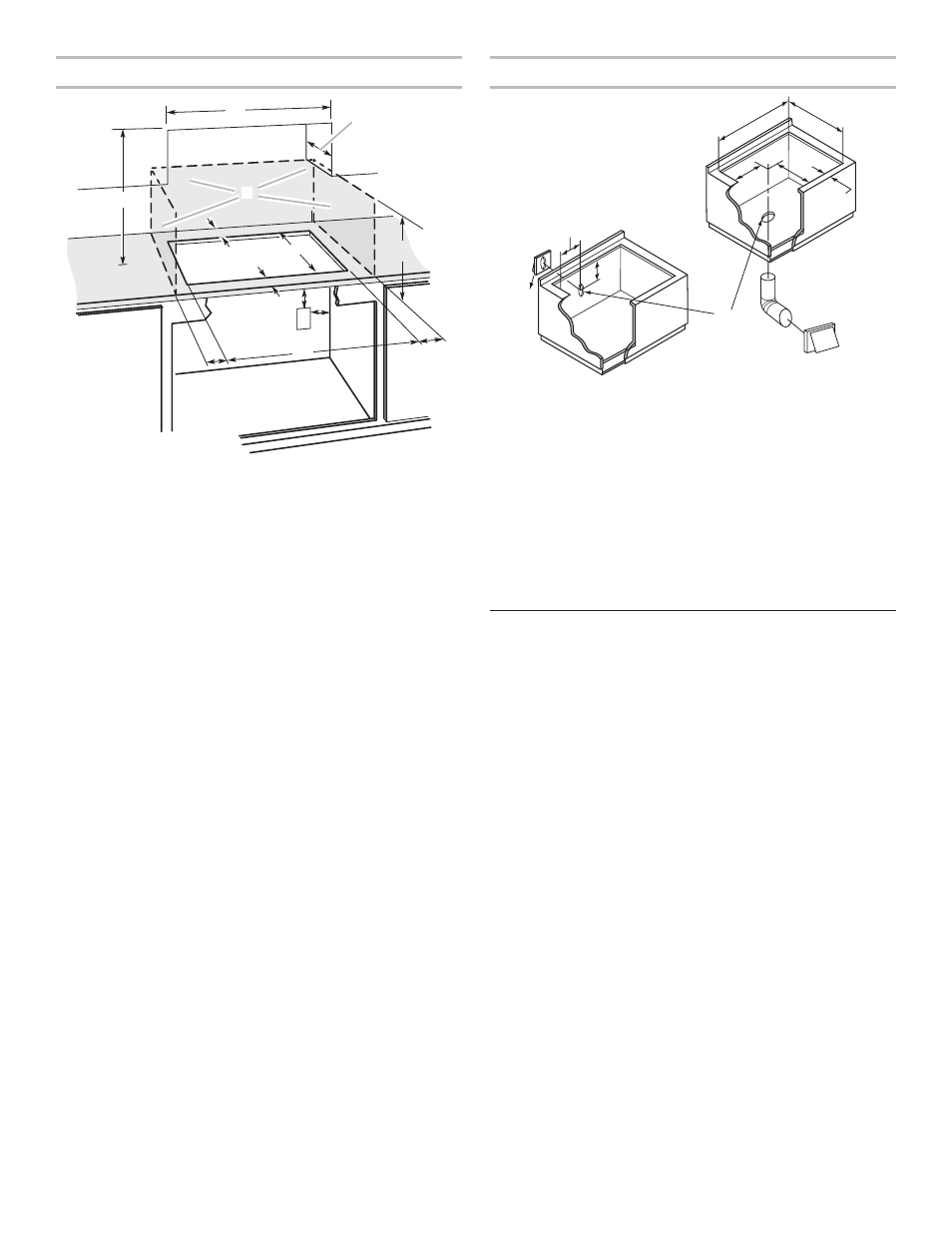

A. 30" (76.2 cm) on 30" (76.2 cm) models
36" (91.4 cm) on 36" (91.4 cm) models
B. Combustible area above countertop (shown by dashed box above)
C. 30" (76.2 cm) minimum clearance between top of cooktop platform
and bottom of uncovered wood or metal cabinet (24" [61 cm]
minimum clearance if bottom of wood or metal cabinet is covered by
not less than 1 /
4
" [0.6 cm] flame retardant millboard covered with not
less than No. 28 MSG sheet steel, 0.015" [0.04 cm] stainless steel,
0.024" [0.06 cm] aluminum, or 0.020" [0.05 cm] copper)
D. 13" (33 cm) recommended upper cabinet depth
E. 2" (5.1 cm)
F. 21
1 /
8
" (53.7 cm)
G. 18" (45.7 cm) minimum clearance from upper cabinet to countertop
within minimum horizontal clearances to cooktop
H. Junction box or outlet: 12" (30.5 cm) minimum from bottom
of countertop
I. Junction box or outlet: 10" (25.4 cm) from right-hand side of cabinet
J. 28
7 /
8
" (73.3 cm) on 30" (76.2 cm) models
34 9 /
16
" (87.8 cm) on 36" (91.4 cm) models
K. 2 1 /
2
" (6.4 cm) minimum distance to nearest left and right side
combustible surface above cooktop
L. 1 1 /
2
" (3.8 cm) minimum clearance between back wall and countertop
A
B
C
D
E
F
G
H
I
J
A. 28 7 /
8
" (73.3 cm) maximum on 30" (76.2 cm) models
34 9 /
16
" (87.8 cm) maximum on 36" (91.4 cm) models
B. 21 1 /
8
" (53.7 cm) maximum on both 30" (76.2 cm) and 36" (91.4 cm)
models
C. 8 19 /
32
" (21.8 cm) on 30" (76.2 cm) models
15 7 /
16
" (39.2 cm) on 36" (91.4 cm) models
D. 6 19 /
64
" (16.0 cm) on both 30" (76.2 cm) and 36" (91.4 cm) models
E. 2" (5.1 cm) minimum space to front edge of cooktop
F. Floor exhaust option
G. 6
1 /
8
" (15.6 cm) for 6" (15.2 cm) vent system
5 1 /
8
" (13 cm) for 5" (12.7 cm) vent system
H. 8 19 /
32
" (21.8 cm) on 30" (76.2 cm) models
15 7 /
16
" (39.2 cm) on 36" (91.4 cm) models
I. 16" (40.6 cm) on both 30" (76.2 cm) and 36" (91.4 cm) models
J. Wall exhaust option
