DIMENSIONS
COMMERCIAL-STYLE RANGES
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All KitchenAid
® appliances are appropriately UL, CUL or CSA approved.
9 of 30
ELECTRICAL REQUIREMENTS
MODEL #
30" (76.2 cm) RANGES
DUAL-FUEL/GAS
KFDC500J/KFGC500J
36" (91.4 cm) RANGES
DUAL-FUEL/GAS
KFDC506J/KFGC506J
48" (121.9 cm) RANGES
DUAL-FUEL/GAS
KFDC558J/KFGC558J
Unit of Measurement in cm in cm in cm
Electrical Zone Width (A) 22 55.9 28 71.1 40 101.6
Electrical Zone Height (B) 15 38.1 15 38.1 15 38.1
Electrical Zone Depth (C) 5 12.7 5 12.7 5 12.7
ELECTRIC REQUIREMENTS CHECKLIST
□ A 240 V, 60 Hz, fused, grounded circuit is required.
□ For 30" (76.2 cm) and 36" (91.4 cm) ranges, use a 40 A circuit.
□ For 48" (121.9 cm) ranges, use a 50 A circuit.
□ A dedicated circuit is recommended.

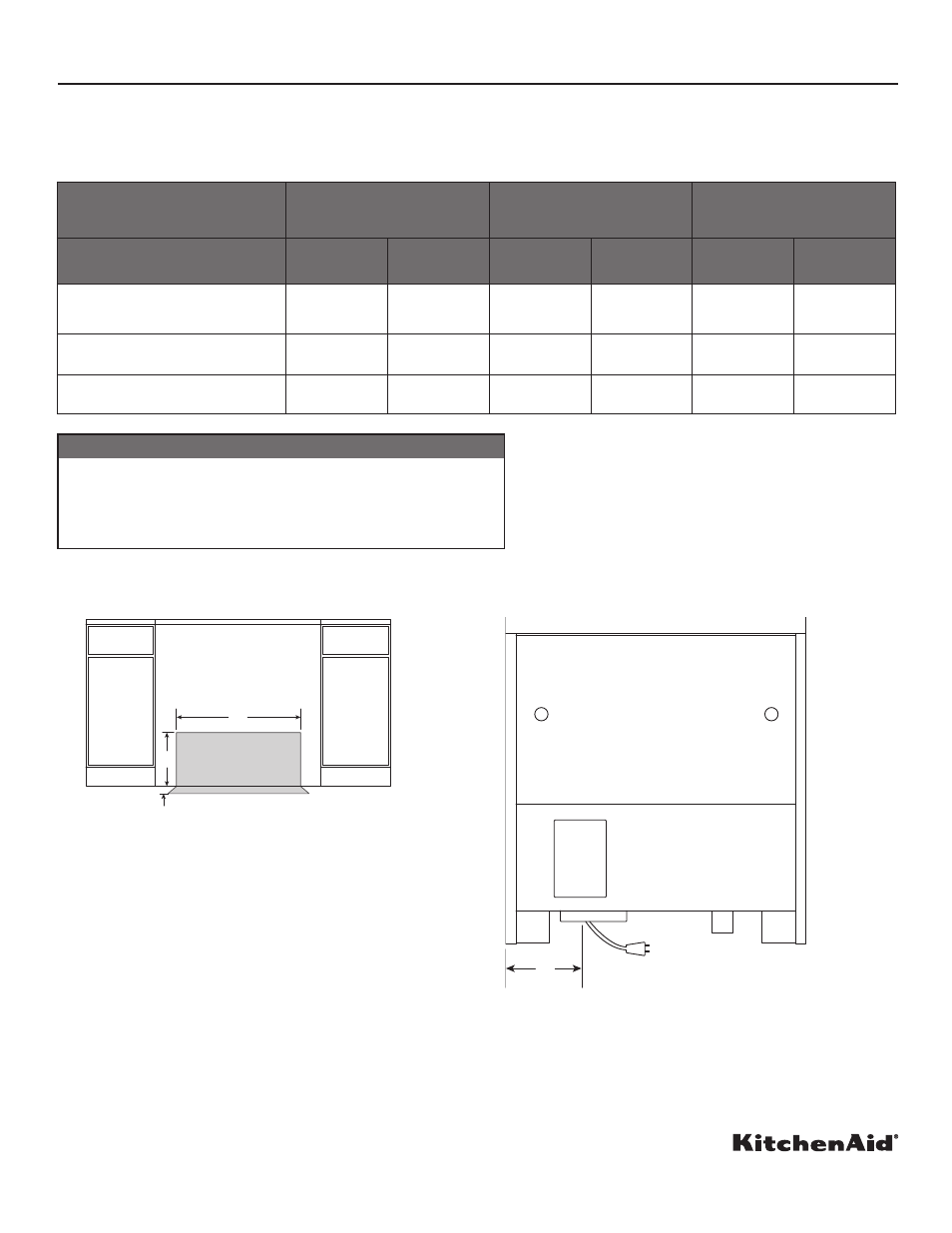

RECOMMENDED ELECTRICAL ZONE
FRONT VIEW
WIDTH TO ELECTRICAL CONDUIT
BACK VIEW
NOTE: If you have questions about your electrical supply, call a licenced, qualified electrician.
A
B
C
9 "
(22.9 cm)
