DIMENSIONS
COMMERCIAL-STYLE RANGES
IMPORTANT:
Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information.
Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All KitchenAid
®
appliances are appropriately UL, CUL or CSA approved.
6 of 30
PRODUCT DIMENSIONS
MODEL #
30" (76.2 cm) RANGES
DUAL-FUEL/GAS
KFDC500J/KFGC500J
36" (91.4 cm) RANGES
DUAL-FUEL/GAS
KFDC506J/KFGC506J
48" (121.9 cm) RANGES
DUAL-FUEL/GAS
KFDC558J/KFGC558J
Unit of Measurement
in
cm
in
cm
in
cm
Depth with Door Fully Open (F)
46
1
⁄
2
118.1
46
1
⁄
2
118.1
46
1
⁄
2
118.1
Depth with Handle (G)
30
1
⁄
4
76.9
30
1
⁄
4
76.9
30
1
⁄
4
76.9
Depth with Control Panel
Overhang (H)
27
3
⁄
4
70.5
27
3
⁄
4
70.5
27
3
⁄
4
70.5
Depth to Toe-Kick with Door (I)
27
68.6
27
68.6
27
68.6
Depth with Door (J)
27
68.6
27
68.6
27
68.6
OTHER DIMENSIONS
Gas Vent Height (K)*
39
99.1
39
99.1
39
99.1
*Gas Units only: KFGC500J, KFGC506J and KFGC558J.

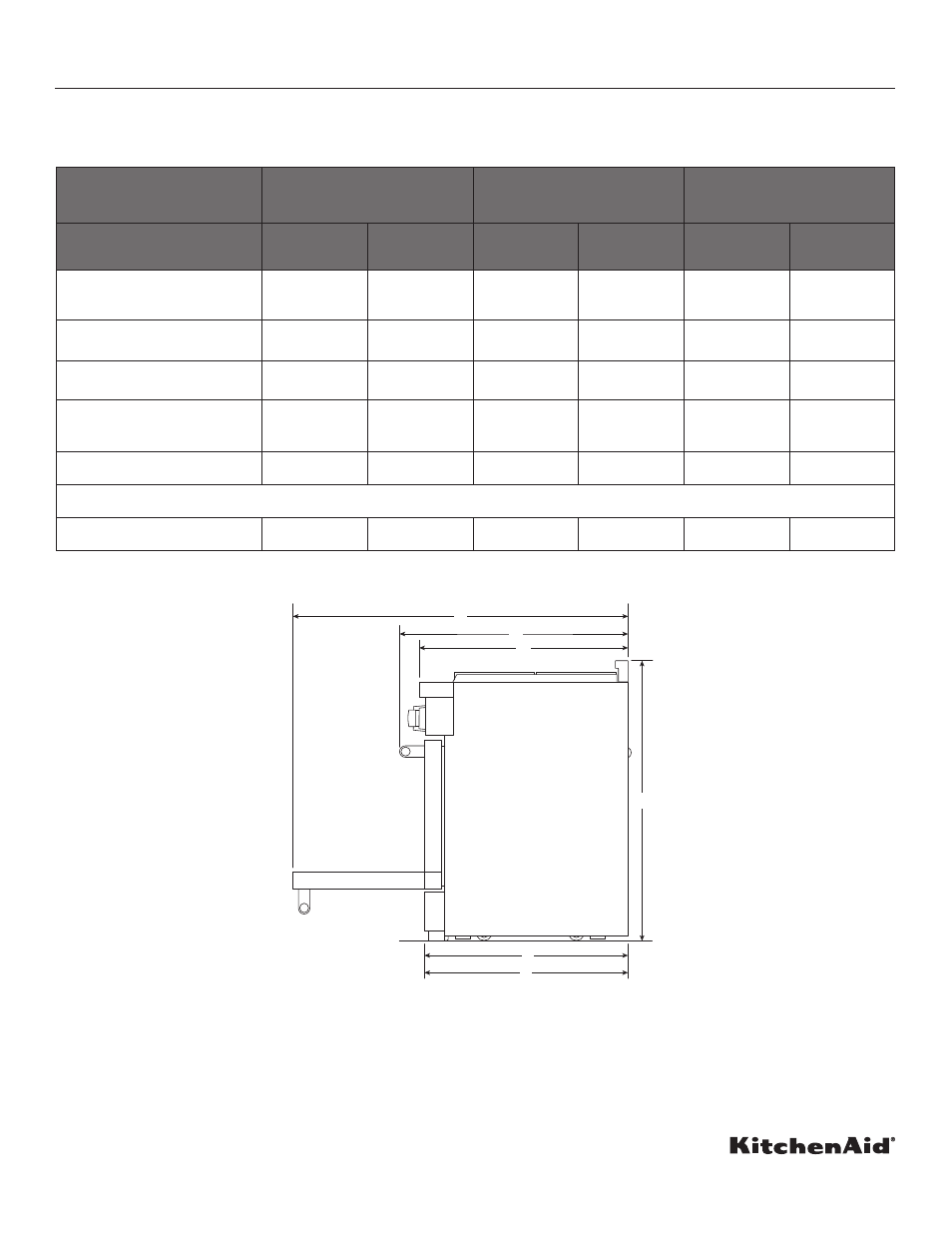

SIDE VIEW
G
F
H
I
J
K
