DIMENSIONS
COMMERCIAL-STYLE RANGES
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All KitchenAid
® appliances are appropriately UL, CUL or CSA approved.
1 of 30

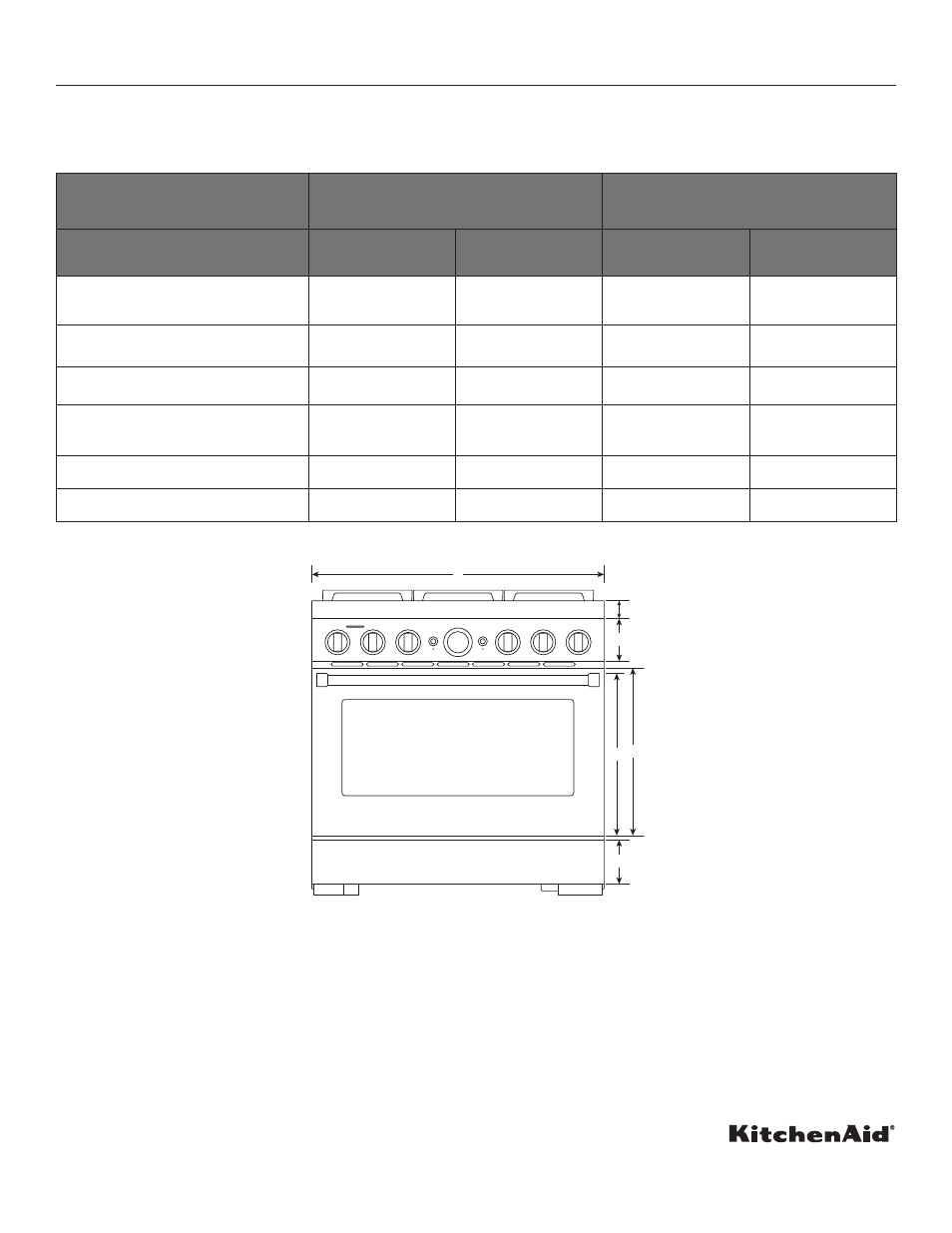

PRODUCT DIMENSIONS
MODEL #
30" (76.2 cm) RANGES
DUAL-FUEL/GAS
KFDC500J/KFGC500J
36" (91.4 cm) RANGES
DUAL-FUEL/GAS
KFDC506J/KFGC506J
Unit of Measurement in cm in cm
Overall Width (A) 29 7 ⁄
8
75.9 35 7 ⁄
8
91.1
Bullnose Height (B) 2 3 ⁄
16
5.6 2 3 ⁄
16
5.6
Control Panel Height (C) 5 5 ⁄
16
13.5 5 5 ⁄
16
13.5
Door Height (D) 20 11 ⁄
16
52.6 20 11 ⁄
16
52.6
Door Bottom to Handle Top (E) 20 50.8 20 50.8
Toe-Kick Height (F) 5 1 ⁄
2
14 5 1 ⁄
2
14
FRONT VIEW
B
D
C
E
A
F
W11255637A
