Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm)
countertop height.
IMPORTANT: If installing a range hood or microwave hood combination above the cooking surface, follow the range hood or
microwave hood combination installation instructions for dimensional clearances above the cooktop surface.
NOTE: When installed in a slide-in cutout, the front of oven door may protrude beyond the base cabinet.

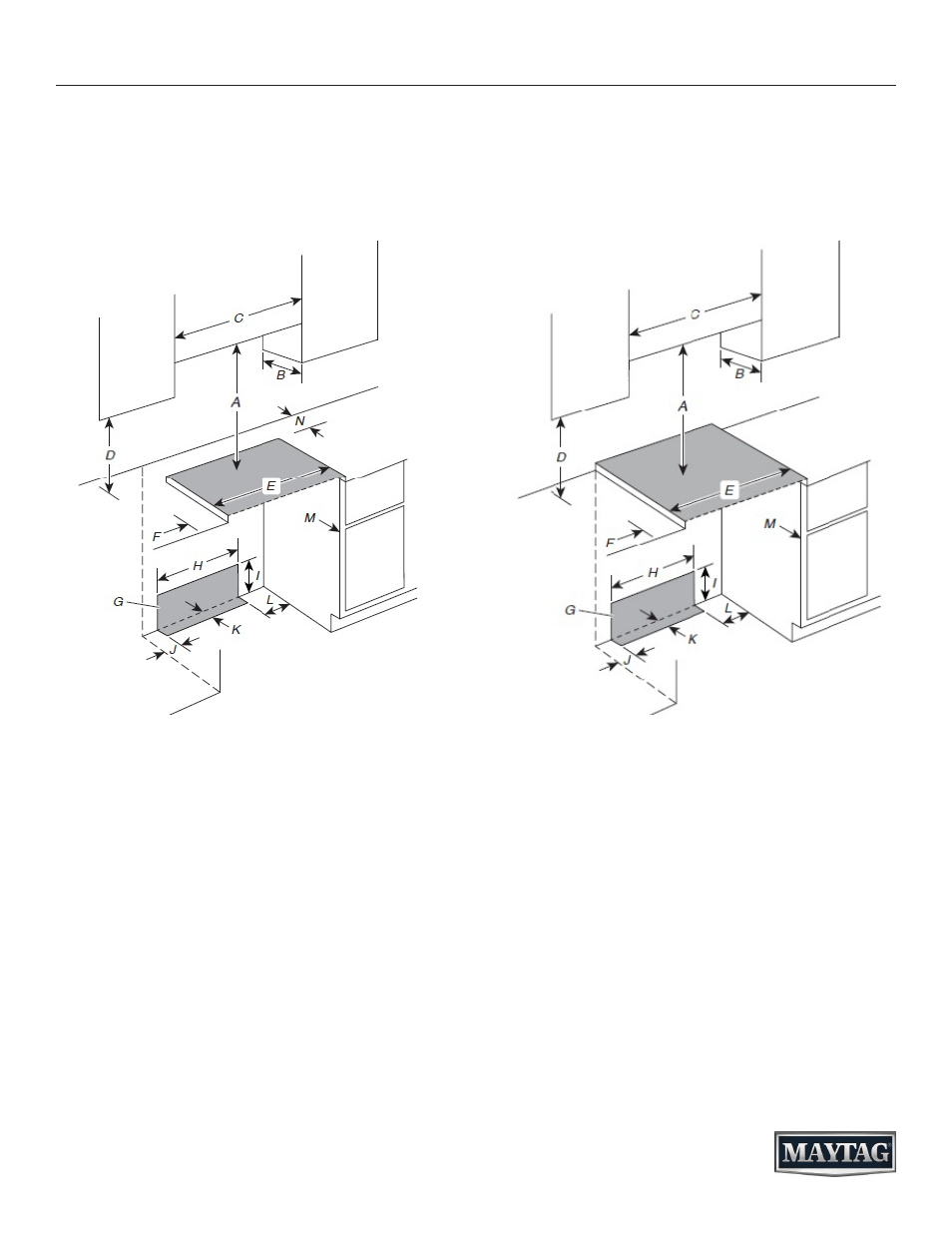

Slide-in Cutout Freestanding Control Cutout
A. For minimum clearance to top of cooktop, see NOTE*.
B. 13" (33 cm) maximum upper cabinet depth
C. 30" (76.2 cm) minimum opening width
D. 18" (45.7 cm) upper side cabinet to countertop
E. 30" (76.2 cm) minimum opening width
F. 5" (12.7 cm) minimum clearance from both sides of range to side
wall or other combustible material
G. The shaded area is recommended for installation of rigid gas pipe
and grounded outlet.
H. 13 1 /
8
" (33.3 cm)
I. 7 11 /
16
" (19.5 cm)
J. 4 13 /
16
" (12.2 cm)
K. 3 11 /
16
" (9.4 cm) plus measurement of N
L. 12" (30.5 cm)
M. Cabinet door or hinges should not extend into the cutout.
N. Remaining counter depth should not exceed 2 1 /
4
" (5.7 cm).
A. For minimum clearance to top of cooktop, see NOTE*.
B. 13" (33 cm) maximum upper cabinet depth
C. 30" (76.2 cm) minimum opening width
D. 18" (45.7 cm) upper side cabinet to countertop
E. 30" (76.2 cm) minimum opening width
F. 5" (12.7 cm) minimum clearance from both sides of range to side
wall or other combustible material
G. The shaded area is recommended for installation of rigid gas pipe
and grounded outlet.
H. 13 1 /
8
" (33.3 cm)
I. 7 11 /
16
" (19.5 cm)
J. 4 13 /
16
" (12.2 cm)
K. 3 11 /
16
" (9.4 cm)
L. 12" (30.5 cm)
M. Cabinet door or hinges should not extend into the cutout
*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is shielded by not less than 1/4" (6.4 mm) flame retardant
millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020"
(0.5 mm) copper. 30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or
metal cabinet.
DIMENSION GUIDE
3 of 15
