Maytag 30 Inch Freestanding Gas Range Dimension Guide - Manuel

DIMENSION GUIDE
PRODUCT MODEL NUMBER
MGR7700L
PRODUCT DIMENSIONS
Because Whirlpool Corporation includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Page 1 of 1

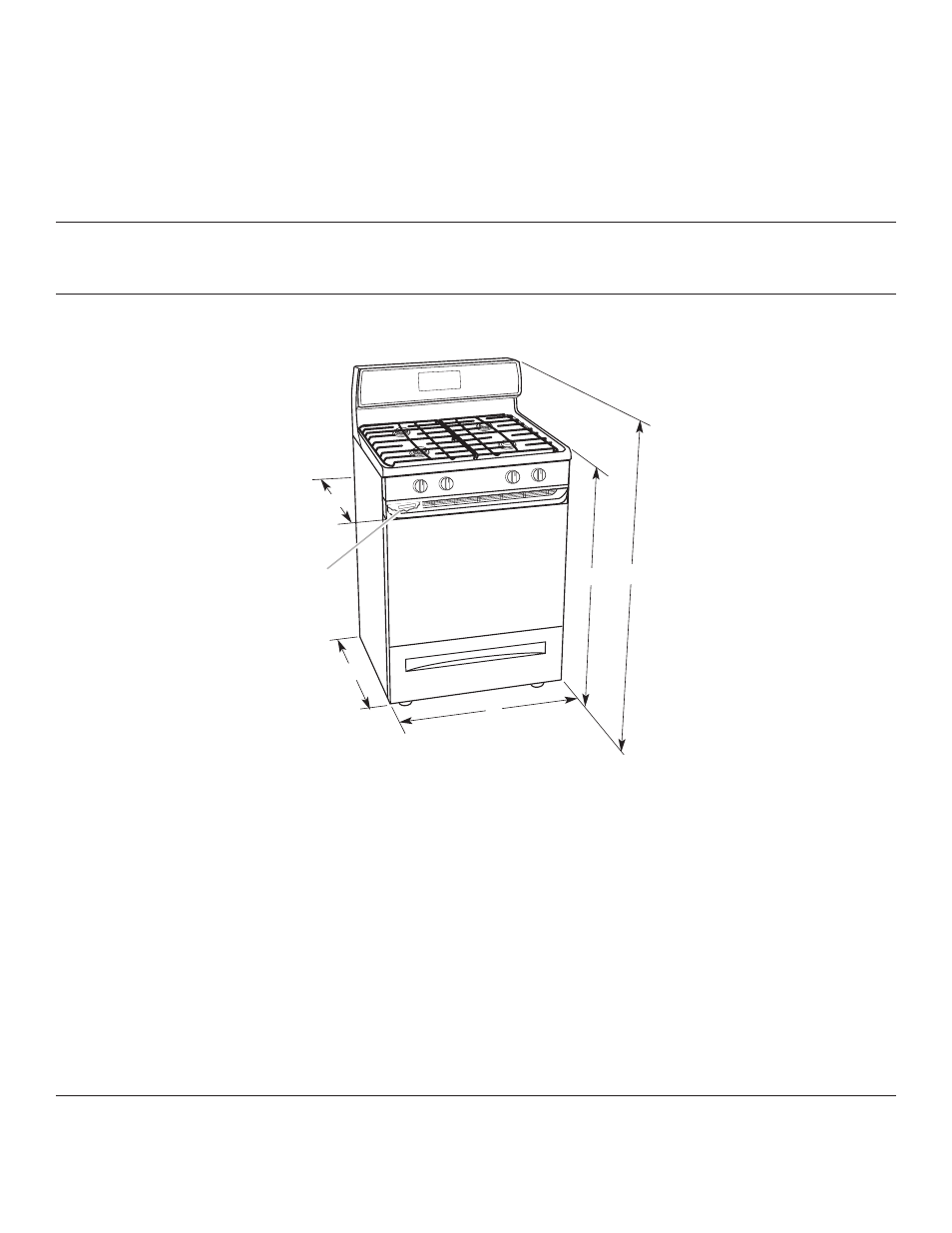

A. 27 7 /
8
" (70.8 cm) maximum depth with handle
B. 36" (91.4 cm) cooktop height (maximum) with leveling legs screwed all the way in*
C. 46
7 /
8
" (119.1 cm) overall height (maximum) with leveling legs screwed all the way in*
D. 29 7 /
8
" (75.9 cm) width
E. 25 7 /
16
" (64.6 cm) depth. Back of range to front of cooktop**
F. Model/serial rating plate (located on the oven frame behind the top left side of the
oven door)
IMPORTANT: Range must be level after installation. Follow the instructions in the “Level Range” section of your Owner’s Manual.
Using the cooktop as a reference for leveling the range is not recommended.
*Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.
**Front of door and drawer may extend further forward depending on styling.
This manual covers several models. Your model may appear different from the models depicted. Dimensions given are maximum
dimensions across all models.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in
your appliance’s Owner’s Manual, before operating this appliance.
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Frequently Asked
Questions section of our website at www.maytag.com for more detailed instructions. In Canada, reference the Customer Service
section at www.maytag.ca .
