MAYTAG ® GAS RANGE
PRODUCT
DIMENSION GUIDE
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Owner's Manual before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
1 of 15
APPLIANCE: 30" GAS RANGE
MODEL MGS8800PZ*
Unit of Measurement in cm
A Depth Closed Excluding Handle 26 1 ⁄
16
66.27
B Depth Closed Including Handle 28 9 ⁄
16
72.53
C Depth Excluding Doors 25 63.44
D Depth with Door Open 90o 48 11 ⁄
16
123.67
E Maximum Height 38 15 ⁄
16
98.90
E Minimum Height 37 7 ⁄
16
95.10
F Width 29 7 ⁄
8
75.82
W11635377A

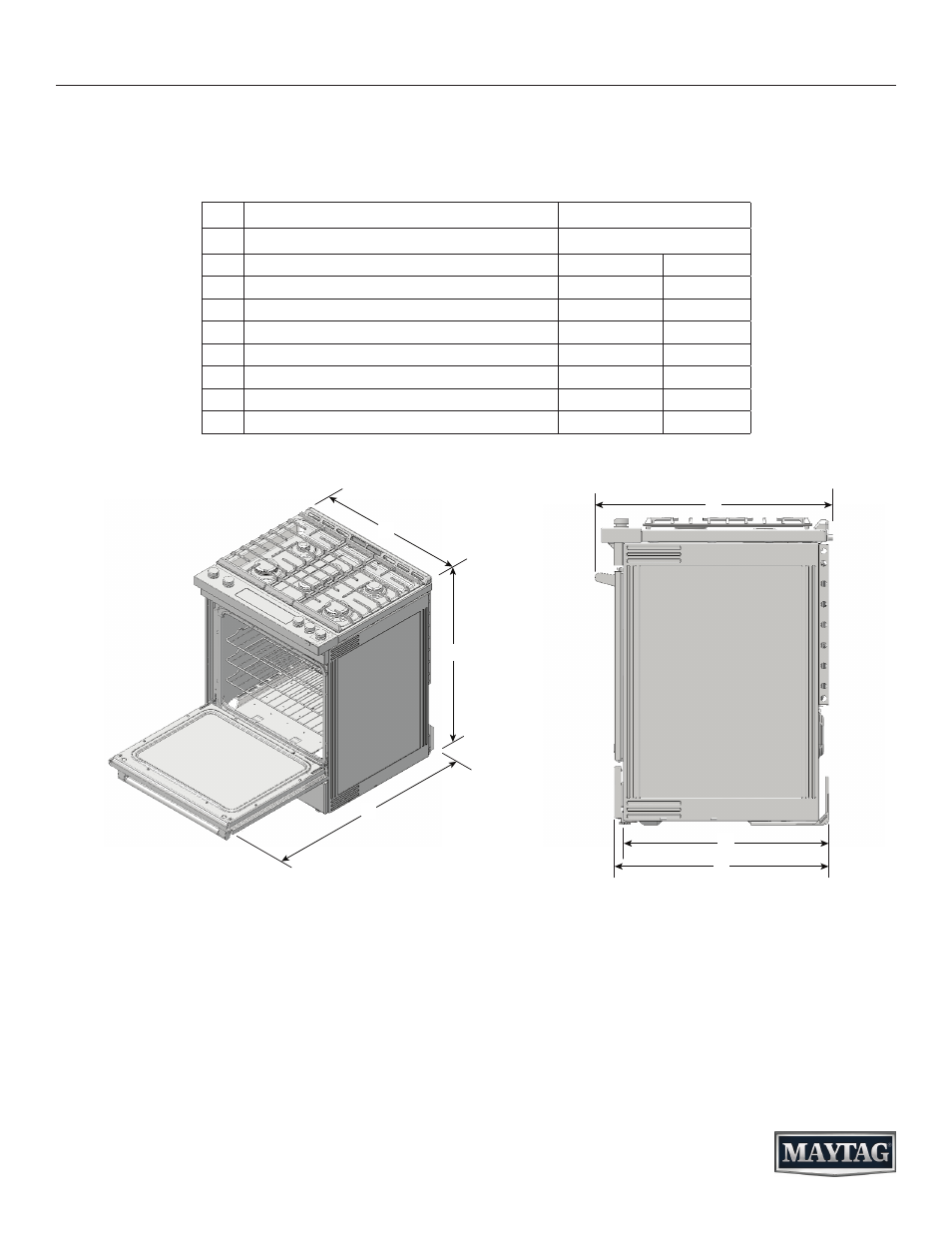

SIDE VIEW ANGLED VIEW
F
E
D
A
C
B
