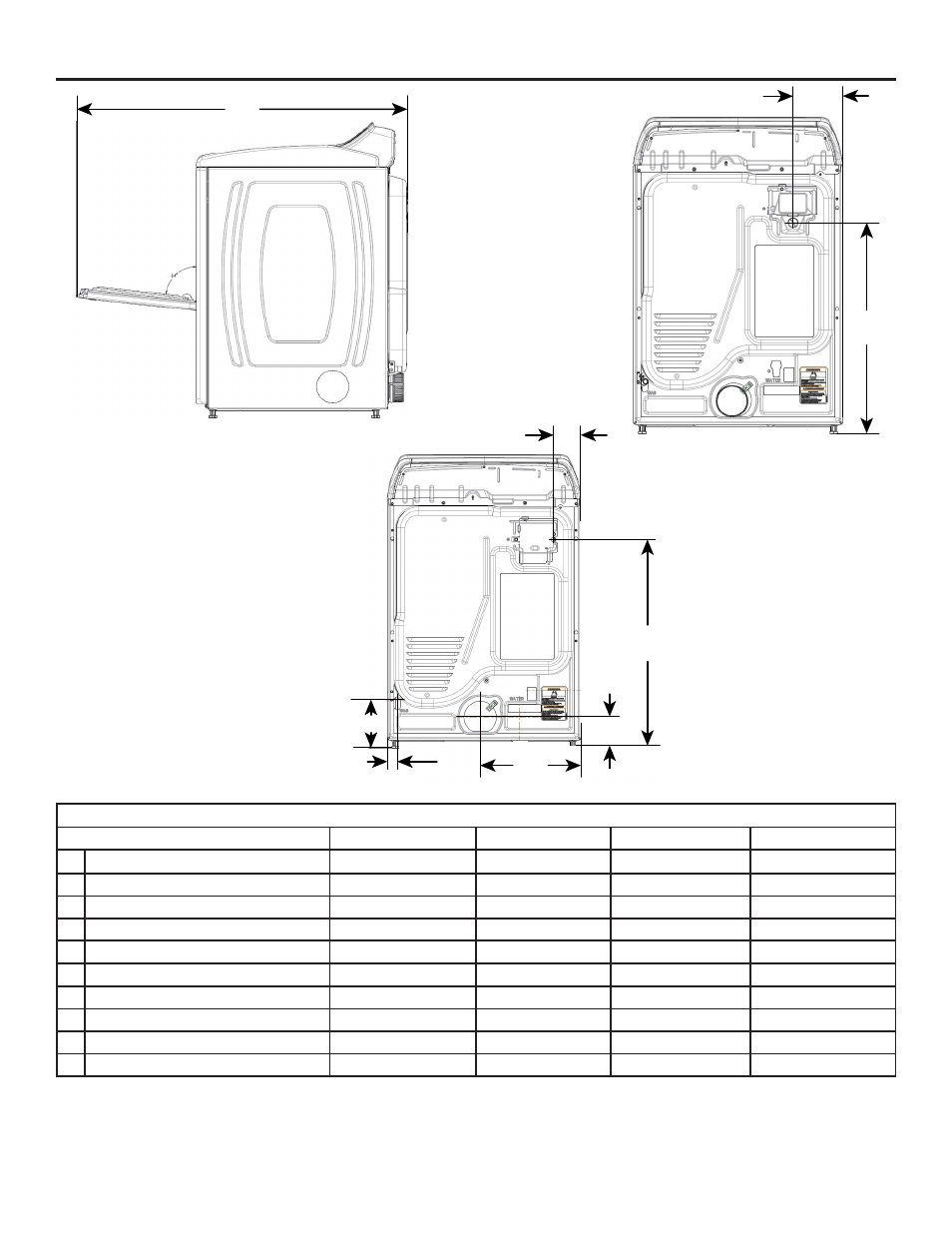

DETAILED PLANNING DIMENSIONS
G
Product Dimensions
in (min) mm (min) in (max) mm (max)
G Depth with Door Open 45 13 ∕
16
1163.5 - -
H Strain Relief from Side (elec) 6 7 ∕
16
162.9 - -
I Strain Relief Height (elec) 27 3 ∕
16
691.27 28 3 ∕
16
716.67
J Power Cord from Side (gas) 3 3 ∕
16
96.25 - -
K Power Cord Height (gas) 29 736.68 30 762.08
Power Cord Length (gas) 59 7 ∕
8
1521.09 - -
L Gas Valve Height 6 11 ∕
16
170.13 7 11 ∕
16
195.53
M Gas Valve from Side 1 7 ∕
16
36.40 - -
N Exhaust Duct Height 4 5 ∕
16
109.95 5 5 ∕
16
135.35
O Exhaust Duct from Side 14 1 ∕
16
356.7 - -
I
H
I
J
K
N
O
M
L
