Important Safety Instructions
Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
Recognize Safety Symbols, Words
and Labels
Safety items throughout this manual are
labeled with a WARNING or CAUTION based
on the risk type as described below:
IMPORTANT
Indicates installation, operation, or
maintenance information which is important
but not hazard-related.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
Please read all instructions before using this
dryer.
Table of Contents
Important Safety Instructions ................ 2
Installation Requirements ...................... 4
Installation Instructions ......................... 8
Reversing Door ................................... 15
Accessories ........................................ 17
Thank you for choosing an Electrolux
Compact Ventless Dryer. This dryer operates
on a different drying principle than traditional
exhaust ducted dryers. Your new dryer is a
condensation, ventless dryer and DOES NOT
require exhaust venting that exhausts the
drying process air to the outside.

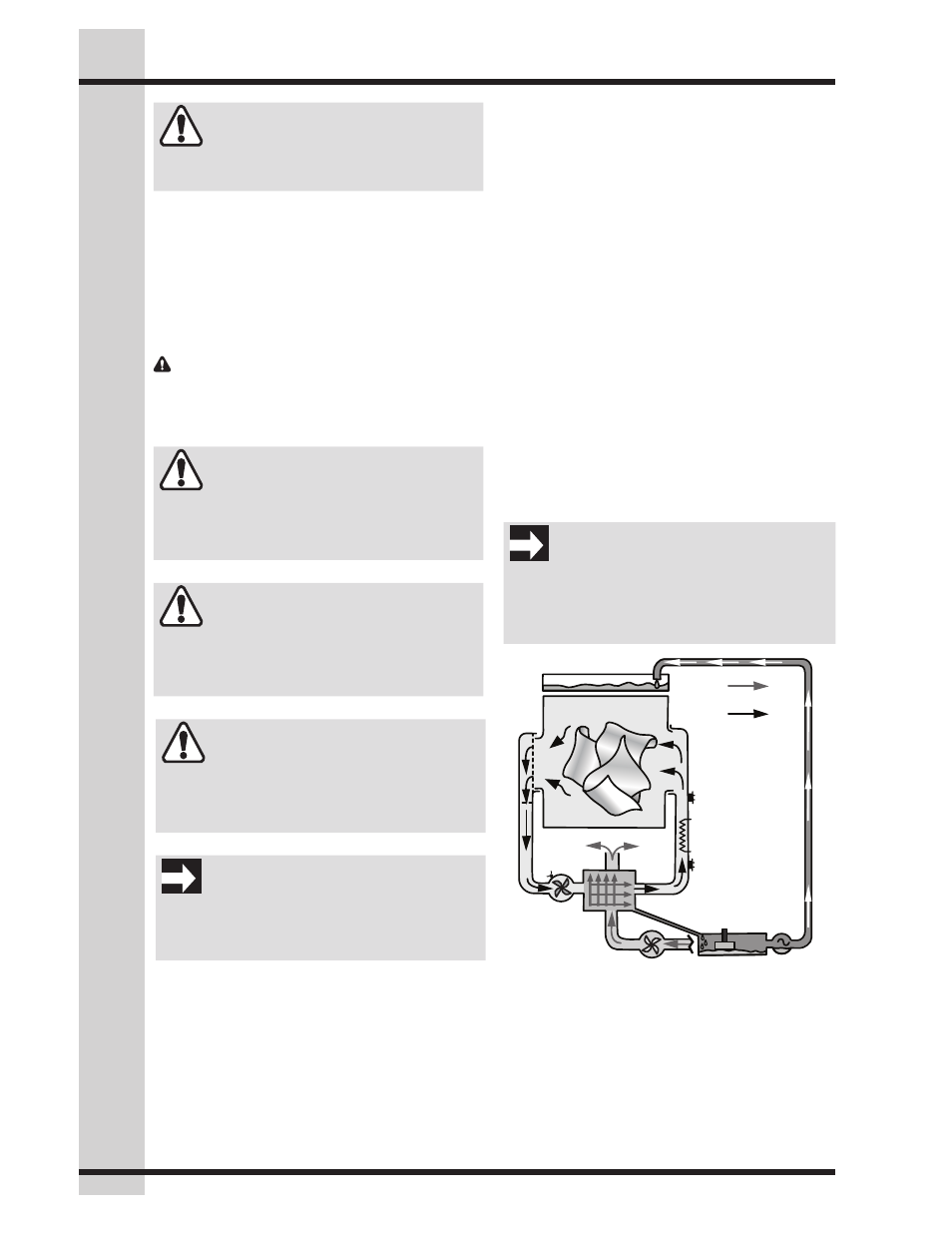

A condensation dryer works through a closed
loop circuit. The drying process air is heated
by an internal heating element, which then
passes over and through your clothes. The
moisture rich air proceeds down through a lint
filter, then through an air-air heat exchanger
that works as a condenser. The warm, wet
air is cooled by a separate secondary fan that
utilizes ambient room air. When the process
air cools down, it releases moisture that is
collected in a recovery basin at the bottom
of the appliance. The water can be either
pumped down the drain by the provided kit, or
pumped directly into a tank that needs to be
emptied after each drying cycle.
IMPORTANT
Your new dryer is a condensation, ventless
dryer and
DOES NOT require exhaust
venting that exhausts the drying process air
to the outside.
8
3
2
1
6
5
7
9
11
4
10
1. Primary circuit –
drying process
air fan
2. Heating element
3. Lint filter
4. Clothes load
5. Heat exchanger
6. Secondary circuit –
ambient air fan
7. Drain water basin
8. Water tank
9. Float/pump switch
10. Water drain tube
11. Water pump
2
