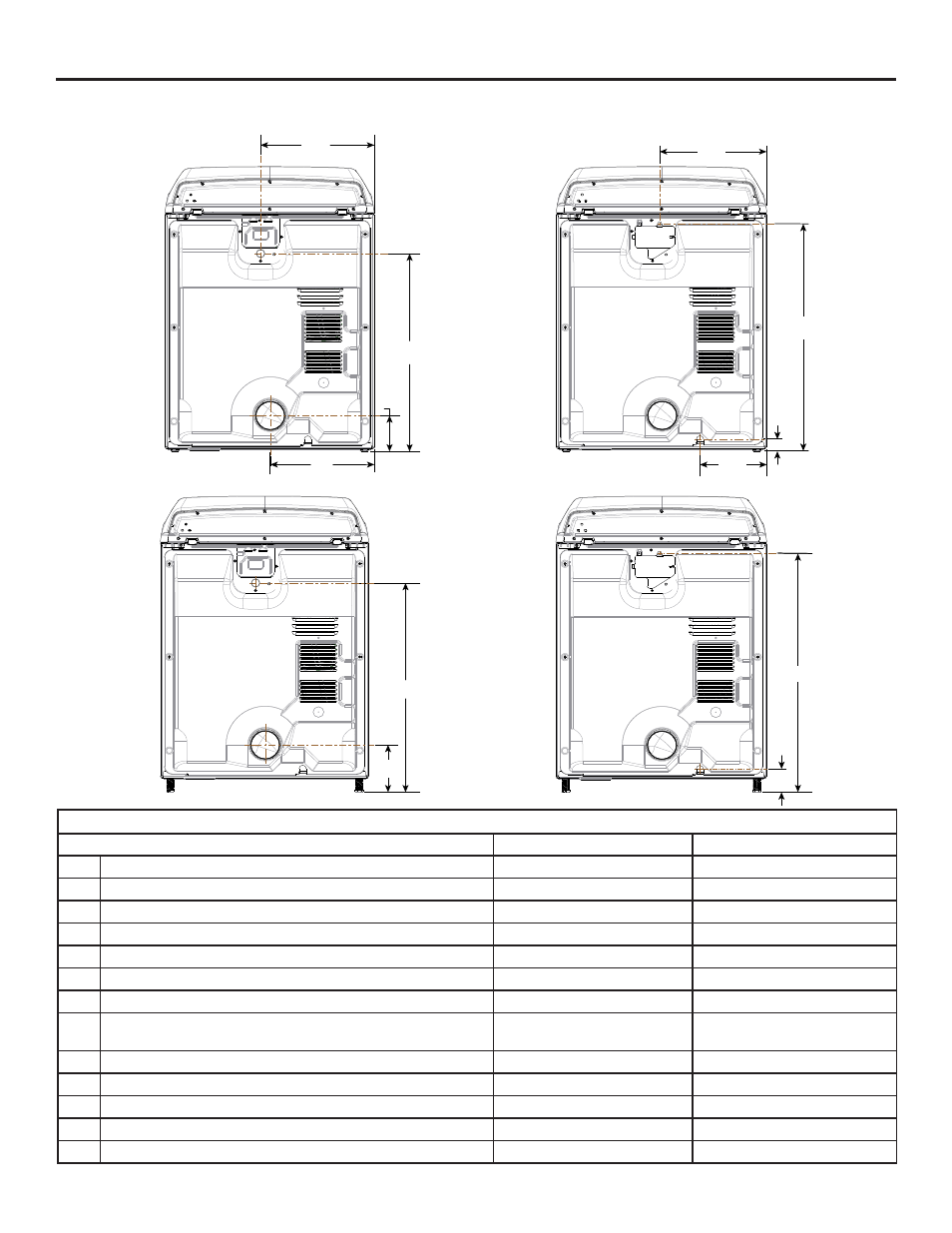

DETAILED PLANNING DIMENSIONS
Product Dimensions
in mm
H Strain Relief from Side (electric) 15 3 ∕
4
400
I Strain Relief Height (elec) (With leveling legs not extended) 28 1 ∕
8
714
J Exhaust Duct from Side 14 7 ∕
16
366
K Power Cord from Side (gas) 14 3 ∕
4
375
L Power Cord Height (gas) 32 3 ∕
8
822
M Gas Connection (With leveling legs not extended) 1 11 ∕
16
43
N Gas Connection from Side 9 3 ∕
16
234
O Strain Relief Height (electric) (With leveling legs fully
extended)
29 3 ∕
4
755
P Exhaust Duct Height (With leveling legs fully extended) 6 11 ∕
16
170
Q Power Cord Height (gas) 34 863
R Gas Connection (With leveling legs fully extended) 3 5 ∕
16
84
S Exhaust Duct Height (With leveling legs not extended) 5 1 ∕
16
128
Gas Power Cord Length 60 1525
I
H
J
S
L
N
K
M
P
O
R
Q
Electric Gas
