ASSEMBLY PREPARATION
MAJOR CAUSES OF APPLIANCE FIRES ARE A RESULT OF POOR MAINTENANCE AND A FAILURE TO MAINTAIN
REQUIRED CLEARANCE TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE
USED ONLY IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS.
Parts are located throughout the shipping carton, including below the grill. Inspect the grill, parts, and hardware blister pack after removing from the
protective shipping carton. Discard all packaging materials from inside and outside of the grill before assembly, then review and inspect all parts by
referencing the parts list. If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact
Customer Service for parts.
WWW.LOUISIANA-GRILLS.COM | USA: (480) 923-9632 | CANADA (TOLL FREE): 1-877-942-2246
Tools required for assembly: screwdriver. Tool not included.

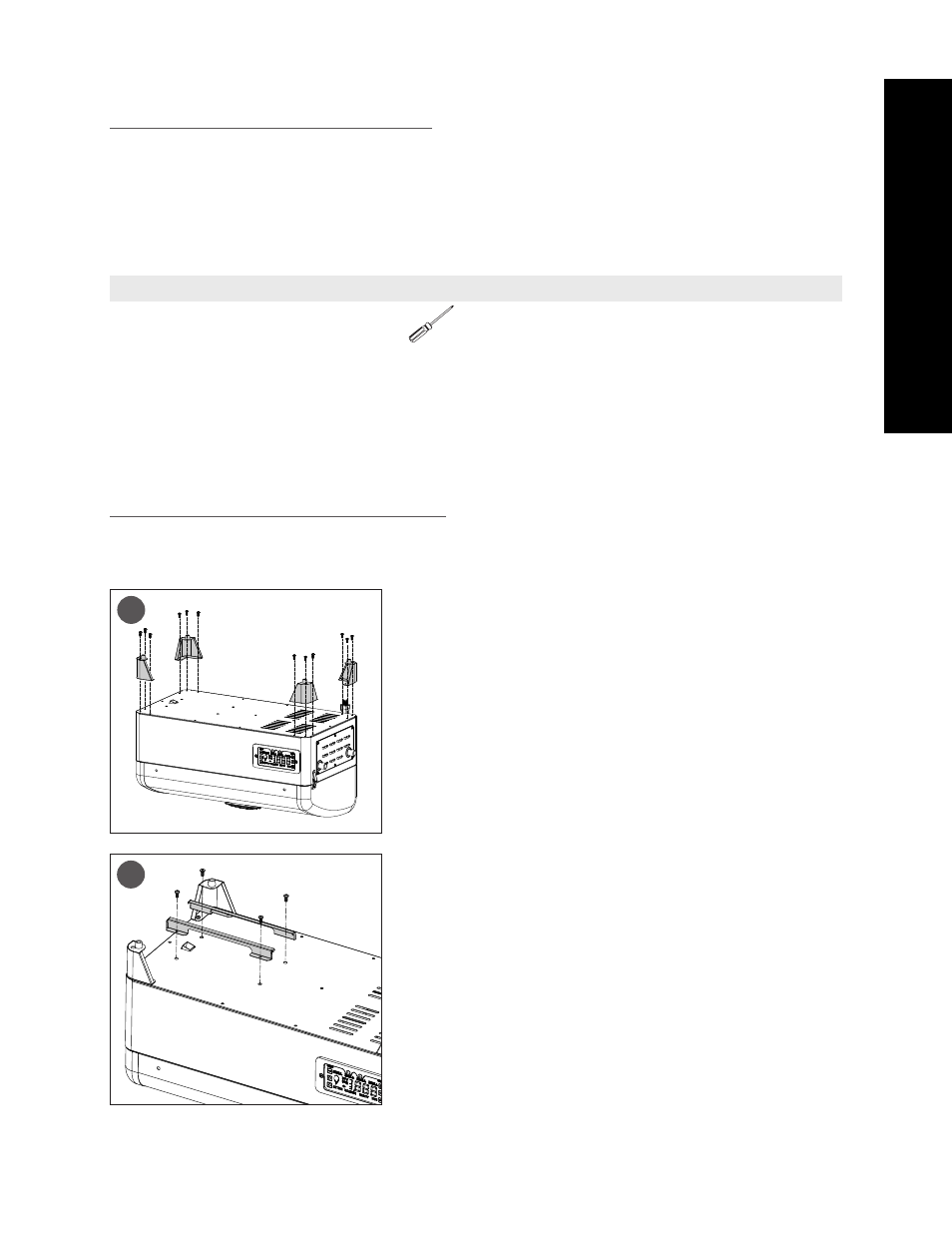

MOUNTING THE LEGS TO THE GRILL
PARTS REQUIRED:
1
x Main Grill Body / Hopper Assembly (#9)
4 x Foot Assembly (#11)
INSTALLATION:
• Place a piece of cardboard on the floor to prevent scratching the unit and
parts during assembly. Remove all the parts from inside the lid. Carefully flip
the unit upside-down.
• Remove the twelve pre-installed screws from the bottom panel corners of the
unit, three from each corner.
• Secure one Foot Assembly to a bottom panel corner using three of the screws
previously removed. Repeat the same installation for the remaining three Foot
Assemblies into the bottom panel.
MOUNTING THE GREASE TRAY BRACKETS
PARTS REQUIRED:
2
x Grease Tray Brackets (#12)
INSTALLATION:
• Remove the four pre-installed screws from the bottom panel of the unit.
• Secure each Grease Tray Bracket to the bottom using two screws.
IMPORTANT: MATCH DIRECTION OF BRACKETS AS SHOWN IN ILLUSTRATION.
THE RAILS OF THE GREASE TRAY BRACKETS SHOULD FACE INWARD, TOWARDS
EACH OTHER.
ASSEMBLY INSTRUCTIONS
IMPORTANT: IT IS ADVISED TO READ EACH STEP ENTIRELY BEFORE STARTING ASSEMBLY ON INSTRUCTIONS. DO
NOT TIGHTEN SCREWS COMPLETELY UNTIL ALL SCREWS FOR THAT STEP HAVE BEEN INSTALLED.
1
9
11
11
11
11
2
12
12
