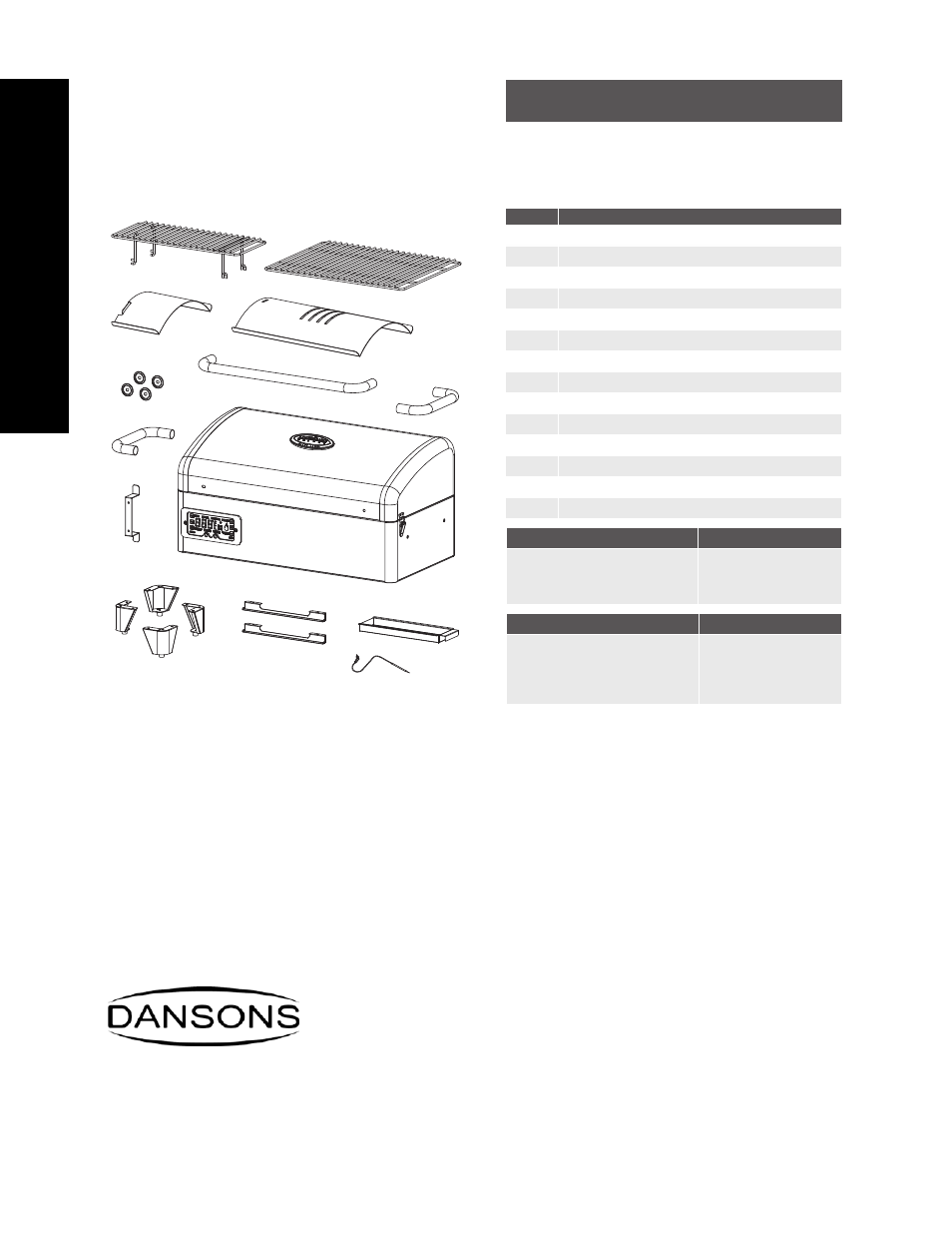

Louisiana Grills Black Label Series 19 Inch Smart Table Top Wood Pellet Grill Assembly Guide - Manuel (Page 2)

LOUISIANA GRILLS
2
ENGLISH
ENGLISH
ASSEMBLED (WxHxD) WEIGHT
873 x 419 x 490 mm /
34.3 x 16.4 x 19.2 in 26.0 kg /
553.7 lb
COOKING AREA TEMPERATURE RANGE
Upper - 660 cm² / 102 in²
Lower - 1,491 cm² / 231 in²
TOTAL - 2,151 cm² / 333 in²
82-260°C /
180-500°F
LG300BL
ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 220 W, 3-prong grounded plug
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
1
2
3
4
5
6
9
7
10
11
12
13
14
8
PART# DESCRIPTION
1 Upper Cooking Rack (x1)
2 Cooking Grid (x1)
3 Flame Broiler Slider (x1)
4 Flame Broiler Main Plate (x1)
5 Handle Bezel (x4)
6 Lid Handle (x1)
7 Left Side Handle (x1)
8 Right Side Handle (x1)
9 Main Grill Body / Hopper Assembly (x1)
10 Power Cord Bracket (x1)
11 Foot Assembly (x4)
12 Grease Tray Bracket (x2)
13 Grease Tray (x1)
14 Meat Probe (x1)
