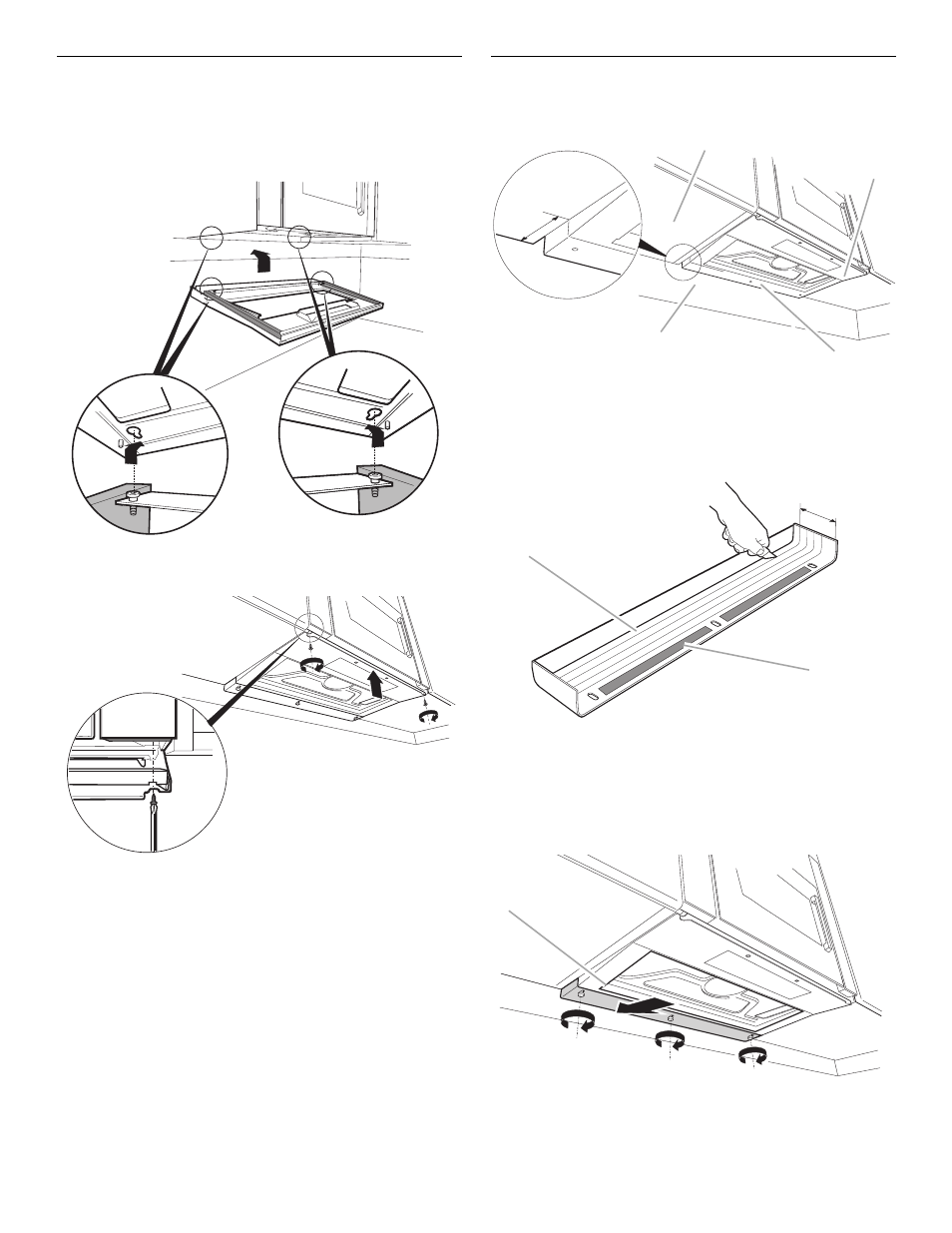

Install Bottom Plate
NOTE: Pre-tap front mounting holes prior to bottom plate
attachment. (See Step 2.)
1. Hook the heads of the screws through the keyholes at the
back of the microwave oven bottom, as shown, then slide
bottom plate back.
2. Secure bottom plate onto microwave oven bottom using two
9.5 mm metal screws through the front mounting holes
.
Install Rear Trim
1. Measure the distance from the rear wall to the front edge of
the rear frame of the bottom plate.
2. Cut the rear trim to the same measurement.
3. Peel off adhesive strip covers, and place the rear trim against
the rear wall and microwave oven bottom.
NOTE: Make sure trim does not cover the opening for grease
filter.
A. Opening for grease filter
4. Secure rear trim with three 9.5 mm metal screws.
A. Left side cabinet bottom
B. Bottom plate
C. Rear frame of bottom plate
D. Rear wall
A. Rear trim
B. Adhesive cover
