DIMENSION GUIDE
4 of 15
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.
MICROWAVE OVEN
OPENING/CLEARANCE DIMENSIONS
MODEL #
WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P
KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R
WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P
YKMMF530P/KMMF730P/YKMMF730P/JMHF730R
YJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm
Depth of upper cabinet (minimum-maximum) Stand Out* (A) 12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B) 12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C) 0.5 1.27
Can this product be installed flush? Flush refers to there
appliance not protruding past the cabinet depth. (Y/N)
(A) N
(B) Y
*This microwave oven is factory set for 12 ʺ (30.5 cm) ~13 ʺ (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

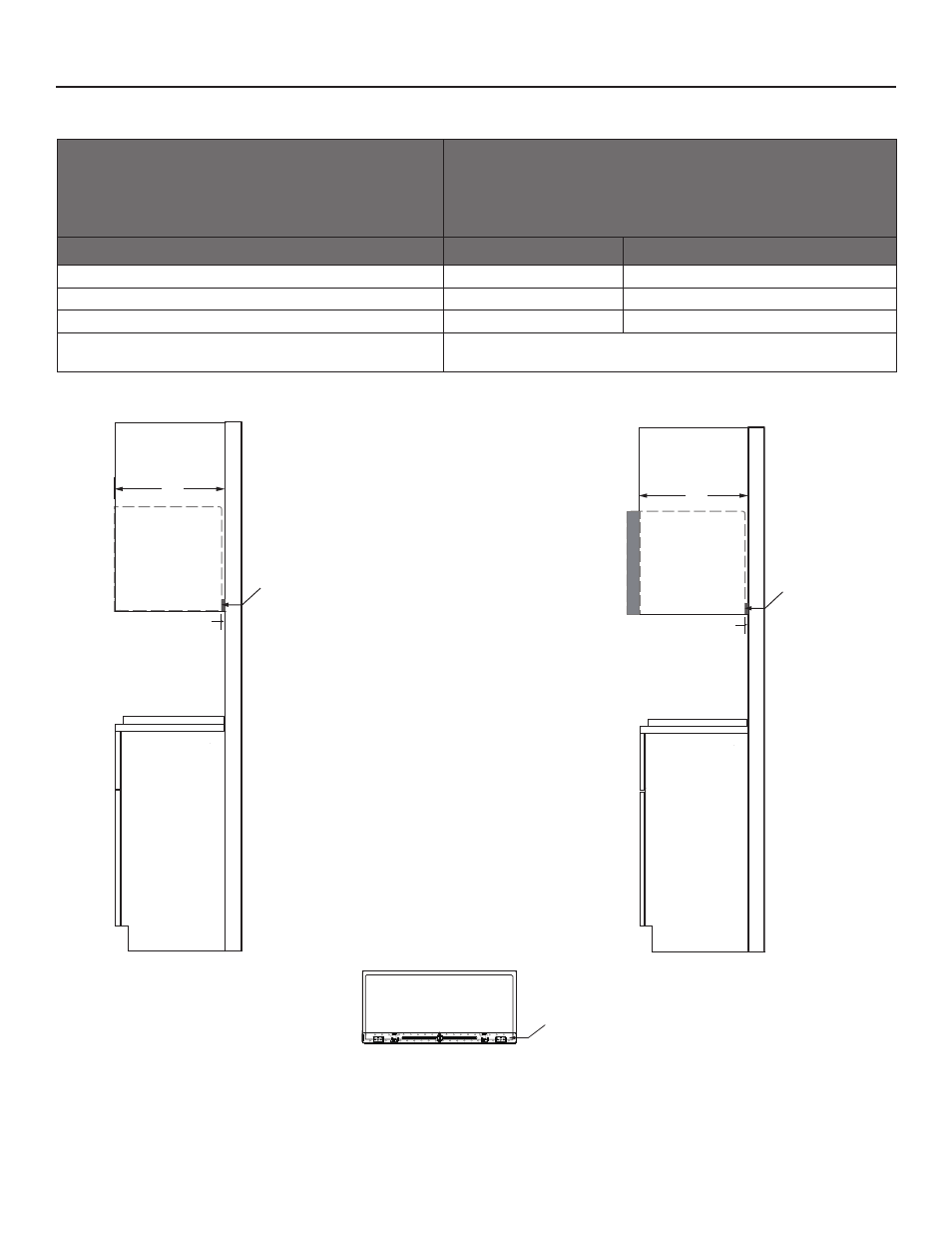

BACK VIEW
SIDE VIEW SIDE VIEW
Side
Cabinet
A
C
Mounting Plate
Side
Cabinet
B
Mounting Plate
C
Mounting Plate
