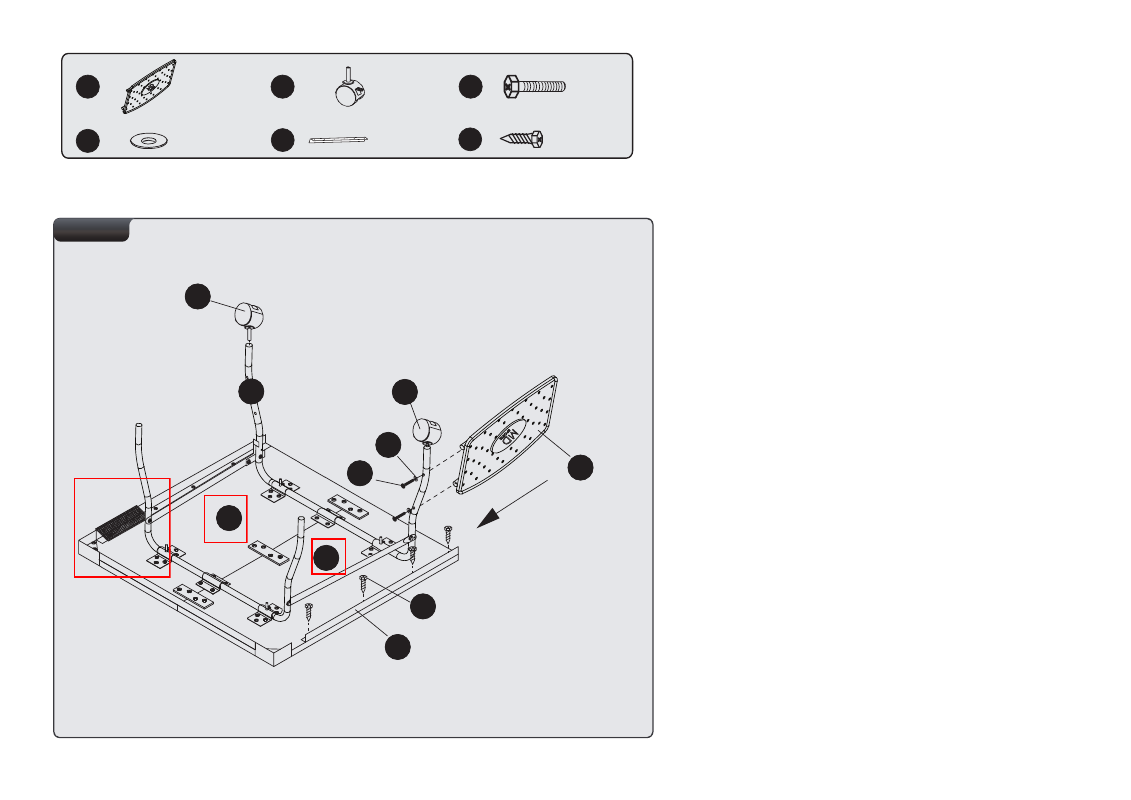

20. Place two Castors (#13) into the Inner Legs (#6).
21. With the logo upside-down, attach one Metal Frame
(#12) to the Inner Leg (#6) using two Bolts (#25) and two
Washers (#30). NOTE: Do not tighten securely at this
time.
22. Repeat the steps above for the other table half.
23. Place the Short Side Apron (#12) and flush with table
edges at the sides of the table, and then attach it to
Table Tennis Tops using four Screws (#26).
