NOTE: Make sure that the slots in the Brackets are
facing the center of the table for proper installation.

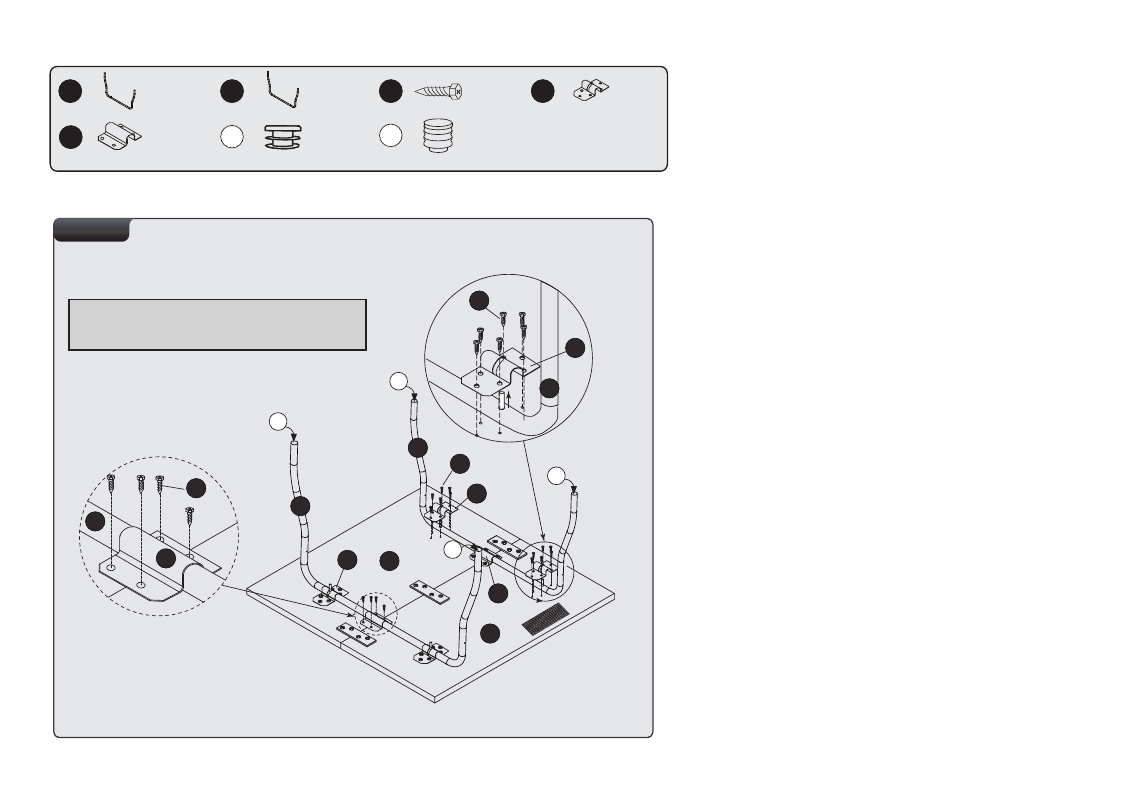

5. Place one Outer Leg (# 5) on the player end of the table
half and one Inner Leg (#6) on the center end of the table
half.
6. Place two Slotted Leg Brackets (#31) over each end of the
Outer Leg (#5) . Then attach them to the Table Tennis
Tops using six Screws (#26) per Bracket.
7. Place one Leg Bracket (#32) over the center of the Outer
Leg (#5) and then attach it to the Table Tennis Tops using
four Screws (#26) per Bracket.
8. Place two Slotted Leg Brackets (#31) over each end of the
Inner Leg (#6). Then attach them to the Table Tennis Tops
using six Screws (#26) per Bracket.
9. Place one Leg Bracket (#32) over the center of the Inner
Leg (#6) and then attach it to the Table Tennis Tops using
four Screws (#26) per Bracket.
10. Repeat the steps above for the other table half.
